Stainless Steel 304 Screw

ASTM A193 Grade B8 CSK & SS 304 Sheet Metal Screws manufacturer in India

The A2 grade of stainless steel indicates that the alloy of the SS A2-80 Screw have been cold worked, while the number ‘80’ in these bolts indicate the minimum tensile strength met by the end product . This end product could include manufactured items like screws, nuts or bolts. The 304 Stainless Steel Screw have a high tensile strength of 800 Mpa and are generally manufactured from the Austenitic 304 or 304L grade Stainless Steel.

Grade 304 stainless steels are utilized to manufacture the A2-70 AISI 304 Metric Grub Screw as they are an acid proof stainless steel grade. Although the SS 304 Screw can be treated by solution annealing  with heat between the temperature range of 1010 °C - 1020 °C, they cannot be hardened by treating the material with heat. Therefore the SS 304 Concrete Screws is cold worked. Cold working the SS 304 Thread Rolling Screws  not only improves its hardness, but also the tensile and yield strength of the A2-80 Concrete Screw by becoming resistant to deformation.

Stainless steel grade A2-70 Eye screw and Sems Screw can be treated by coating their surface with Teflon, xylon, phosphate, zinc, cadmium or by treating it to hot dipped galvanization. Coating the 304 Stainless Steel Concrete Screws improves its mechanical and physical properties while imparting a good look to the fastener. Techniques used to finish the Extra Fine UNEF threads ASTM F593 304 Coach screws include pickling and passivation of these products.

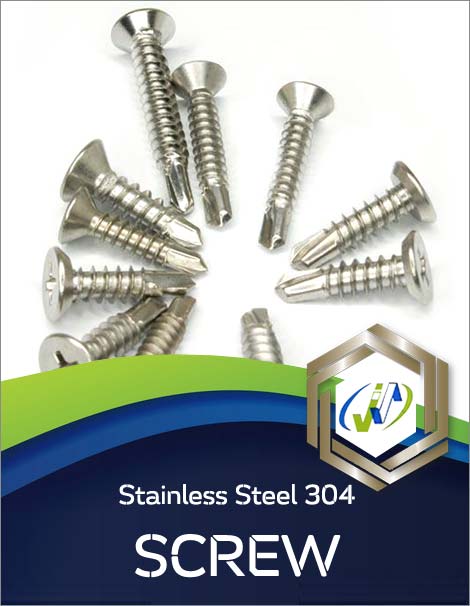

SS 304 Screw

SS 304 Screw

SS 304 Concrete Screws

SS 304 Concrete Screws

SS 304 CSK Screw

SS 304 CSK Screw

Searching for SS 304 Screw manufacturers? Wide range of A193 B8 SS 304 Chipboard and Furniture Screws in Mumbai

SS 304 Screw

Table of contents

SS 304 Screw Specifications

Manufacturing 304 Stainless Steel Screw in various types and head, buy Stainless steel grade A2-70 Eye screw and Sems Screw in custom sizes and dimensions

304 Stainless Steel Screw Sizes
  • Cold Forming Screws: M2-M24
  • Hot Forging Screws: M24-M100, 1-1/2” Dia, up to 1100mm lg
A193 B8 SS 304 Screw Metric Size
  • Dia: M10 - M110
  • Length: 12 - 1200MM
Stainless Steel 304 Screw Sizes in Inch
  • Dia: 1/2" - 4.0"
  • Length: 1/2" - 52"
Stainless Steel 304 Screw Length 3 mm to 254 mm
A2-70 AISI 304 Screws US Threads
  • METRIC
  • BSW
  • BSF
  • Unified national coarse (UNC)
  • Unified national fine (UNF)
  • Unified national extra fine (UNEF)
  • UNJC and UNJF threads
  • UNK threads
  • UNR threads
  • Constant-pitch threads
Stainless Steel 304 Screw UTS - Unified Thread Standard UNC, UNF, NPT, UNS, UNEF, NPTF
Material Origin Stainless Steel 304 Screw are Western European. Eastern origin possible on request.
Standard

Manufacturer of Stainless Steel 304 Screw as per below standards:

  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • ANSI - American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
Stainless Steel 304 Screw Surface Finish & Coating
  • Ptfe Coated 304 Stainless Steel Screw
  • ZAC (Zinc Alluminium Flake Coating)
  • Phosphate
  • Geometry
  • Teflon
  • Xylon
  • Black oxide
  • Zinc Phosphate (yellow, blue, white, black)
  • Sherardized
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • Cadmium
  • Nickel plated
  • Plated zinc-nickel
  • Anodizing
  • Dacroment
  • Self-Colour
  • Bright Zinc Plated (BZP)
  • Hot Dip Galvanised (HDG)

All A193 B8 SS 304 Screw surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE.
Other Stainless Steel 304 Screw manufacturers Omni, APL, Kundan, Deepak Fasteners, Unbrako, Sundaram Precision, Infasco, Caparo, EBY Fastener, SPAX® Screws, GKW Etc.
SS 304 Screw types Socket Head Cap Screw, Self Tapping Screws, Self Drilling Screws, Hexagon Screw, Hex Cap Screws, Socket Cap Screws, Countersunk Slotted Screws, Machine Screws, Allen Cap Screws, Concrete Screws, Grub Screws, Hex Lag Screws, Deck Screws, Wood Screws, Concrete Screws, Fully Threaded Screws, Sheet Metal Screws, Self Drilling Screws, Panel Screws, Thread Cutting Machine Screws, Socket Screws, Masonry Screws, Sammys Screws, Anchor Screws, Coach Screws, Cap Screw
Why Rolex Metal Distributors?
  • An Indian manufacturer, established in Year 2008
  • Wide International network : Western Europe, Eastern Europe, Middle East, Southeast Asia, North America, and South America
  • Best Price in India compared to Stainless Steel 304 Screw manufacturers in China
  • Highly professional and technical team
  • Always final Inspection before shipment
  • Pre-production ASTM F593 304 Stainless Steel Screw sample before mass production
  • High precision threads of AISI 304 Stainless Steel Screws
MOQ 5 pieces
Preferred 304 Stainless Steel Nut Bolt Drawing Formats JPEG, PDF, CAD, STP, IGS
Ask for Test Certificates from Stainless Steel 304 Screw manufacturers
  • Manufacturer Test Certificate (MTC) as per EN 10204 / 3.1,
  • 304 Stainless Steel Screw Tensile testing to ISO 898-1
  • A193 B8 SS 304 Screw Hardness testing to ISO 6508-1
  • SS 304 Screw Suitability for preloading to EN 14399-2
  • A2-70 AISI 304 Screws Tri-Roll Thread Comparators
  • ASTM F593 304 Stainless Steel Screw Charpy Impact testing in accordance with ISO 148-1
  • Suitability test for calibrated preload to EN 14399-10 for Stainless steel grade 304 Screw
Free Samples Yes
Delivery time Regular product is about 7-15 days
Payment Terms T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping
Port of Dispatch Mumbai or Kalamboli ports in Maharashtra state of India
A2-70 AISI 304 Fasteners Application and Uses Industrial, Wind tower, Railway, Nuclear power, Construction, Electronic, and Automotive industry
ISO - International Organization for Standardization
Other types of Stainless Steel 304 Screw

Click to view complete information:

Types of 304 Stainless Steel Screws

Manufacturer and supplier of A2-70 AISI 304 Metric Grub Screw, Phillips Head Screws and SS 304 Thread Rolling Screws in Mumbai, get free sample

304 SS Deck Screws

304 SS Deck Screws

AISI 304 Stainless Steel Concrete Screws

AISI 304 Stainless Steel Concrete Screws

304 Stainless Steel Socket Head Cap Screw

304 Stainless Steel Socket Head Cap Screw

AISI 304 Stainless Steel Tek Screws

AISI 304 Stainless Steel Tek Screws

A2-70 AISI 304 Thumb Screw

A2-70 AISI 304 Thumb Screw

A193 B8 SS 304 Wood Screw

A193 B8 SS 304 Wood Screw

304 Stainless Steel Eye Screw

304 Stainless Steel Eye Screw

SS 304 Coach Screw

SS 304 Coach Screw

Stainless steel grade 304 12-Point Flange Head Cap Screws

Stainless steel grade 304 12-Point Flange Head Cap Screws

A193 B8 SS 304 Wing Screw

A193 B8 SS 304 Wing Screw

ASTM F593 304 Stainless Steel Hex Head Lag Screw

ASTM F593 304 Stainless Steel Hex Head Lag Screw

SS 304 Captive Panel Screws

SS 304 Captive Panel Screws

ASTM F593 304 Stainless Steel Allen Cap Screw

ASTM F593 304 Stainless Steel Allen Cap Screw

Stainless steel grade 304 Grub Screw

Stainless steel grade 304 Grub Screw

A2-70 AISI 304 Hex Cap Screw

A2-70 AISI 304 Hex Cap Screw

304 SS Fully Threaded Screw

304 SS Fully Threaded Screw

AISI 304 Stainless Steel Torx Screw

AISI 304 Stainless Steel Torx Screw

304 SS Pan Head Screw

304 SS Pan Head Screw

AISI 304 Stainless Steel Truss Head Screw

AISI 304 Stainless Steel Truss Head Screw

304 Stainless Steel Flat Head Screw

304 Stainless Steel Flat Head Screw

A193 B8 SS 304 Wood Screw Sizes

Stainless steel grade A2-80 Concrete Screw manufacturers offer SS 304 Security head screw and ASTM F593 Type 304 Roofing Screw at factory price in India

304 Stainless Steel Wood Screw Number Max. Head Diameter Shank Diameter of SS 304 Wood Screw Root Diameter Threads
Per Inch
Basic Decimal Size Nearest
Fractional
Equivelant		 Average
Decimal
Size		 Nearest
Fractional
Equivelant
0 .119 .060 1/16 .040 3/64 32.00
1
 .146 .073 5/64 .046 3/64 28.00
2 .172 .086 3/32 .054 1/16 26.00
3 .199 .099 7/64 .065 1/16 24.00
4 .225 .112 7/64 .075 5/64 22.00
5 .252 .125 1/8 .085 5/64 20.00
6 .279 .138 9/64 .094 3/32 18.00
7 .305 .151 5/32 .102 7/64 16.00
8 .332 .164 5/32 .112 7/64 15.00
9 .358 .177 11/64 .122 1/8

14.00
10 .385 .190 3/16 .130 1/8 13.00
11 .411 .203 13/64 .139 9/64 12.00
12 .438 .216 7/32 .148 9/64 11.00
14 .491 .242 1/4 .165 5/32 10.00
16 .544 .268 17/64 .184 3/16 9.00
18 .597 .294 19/64 .204 13/64 8.00
20 .650 .320 5/16 .233 7/32 8.00
24 .756 .372 3/8 .260 1/4 7.00

SS 304 Self Tapping Screw sizes in mm

Check Extra Fine UNEF threads ASTM F593 304 Coach screws, Stainless Steel 304 Lag and Collated Screw weight and specification

SS 304 Self Tapping Screw sizes in mm

THREAD D M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24
P 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
b l?125mm 12 14 16 18 22 26 30 34 38 42 46 50 54
125>l?200mm - - - - 28 32 36 40 44 48 52 56 60
l>200mm - - - - - - - - 57 61 65 69 73
dk nominal=max. 5.5 7 8.5 10 13 16 18 21 24 27 30 33 36
min. 5.32 6.78 8.28 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67 32.61 35.61
da max. 3.6 4.7 5.7 6.8 9.2 11.2 13.7 15.7 17.7 20.2 22.4 24.4 26.4
ds nominal=max. 3 4 5 6 8 10 12 14 16 18 20 22 24
min. 2.86 3.82 4.82 5.82 7.7 9.78 11.73 13.73 15.73 17.73 19.67 21.67 23.67
dw min. 4.84 6.2 7.7 9.2 12.03 15.03 17.03 19.83 22.83 25.83 28.83 31.61 34.61
e min. 2.3 2.87 3.44 4.58 5.72 8.01 9.15 11.43 13.72 13.72 16 16 19.44
f max. 0.51 0.6 0.6 0.68 1.02 1.02 1.87 1.87 1.87 1.87 2.04 2.04 2.04
k nominal=max. 2 2.8 3.5 4 5 6 7 8 9 10 11 12 13
min. 1.86 2.66 3.32 3.82 4.82 5.82 6.78 7.78 8.78 9.78 10.73 11.73 12.73
r min. 0.1 0.2 0.2 0.25 0.4 0.4 0.6 0.6 0.6 0.6 0.8 0.8 0.8
s nominal 2 2.5 3 4 5 7 8 10 12 12 14 14 17
min. 2.02 2.52 3.02 4.02 5.02 7.025 8.025 10.025 12.032 12.032 14.032 14.032 17.05
max. 2.1 2.6 3.1 4.12 5.14 7.175 8.175 10.175 12.212 12.212 14.212 14.212 17.23
t nominal 1.5 2.3 2.7 3 3.8 4.5 5 5.3 5.5 6.5 7.5 8 8
min. 1.38 2.18 2.58 2.88 3.62 4.35 4.85 5.15 5.35 6.32 7.32 7.82 7.82
max. 1.62 2.42 2.82 3.12 3.95 4.65 5.15 5.45 5.65 6.68 7.68 8.18 8.18
v max. 0.3 0.4 0.5 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2 2.4

A2-70 AISI 304 Machine Screw Sizes and Threads

Threads
per Inch		 Pitch
(mm)		 Pitch
(inches)
80 0.318 0.0125
72 0.353 0.0139
56 0.454 0.0179
48 0.529 0.0208
40 0.635 0.0250
36 0.706 0.0278
32 0.794 0.0313
28 0.907 0.0357
24 1.058 0.0417
20 1.270 0.0500
18 1.411 0.0556
16 1.588 0.0625
14 1.814 0.0714
13 1.954 0.0769
12 2.117 0.0833
11 2.309 0.0909
10 2.540 0.1000
9 2.822 0.1111
8 3.175 0.1250
7 3.629 0.1429
6 4.233 0.1667
5.5 4.618 0.1818
5 5.080 0.2000
4.5 5.644 0.2222
4 6.350 0.2500

ASTM F593 304 Stainless Steel Tek Screws Specifications

#4 and #5 Point Stainless steel grade 304 Self Drilling Screws, Unified Thread Pitch

SIZE
AND
THREAD
PITCH		 L POINT
SIZE		 T T A B DRILLING
CAPACITY		 PERFORMANCE INFO
LENGTH
+0
-.050		 MAJOR THREAD
DIA.		 MINOR THREAD
DIA.		 DRILL POINT
LENGTH		 DRILL POINT
DIA.		 STEEL
GAUGE		 SHEER
STRENGTH
(LAPPED
STEEL)
(LBS)		 PULLOUT
STRENGTH
MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN
12-24 7/8 #4 .216 .207 .172 .168 .523 .495 .202 .190 .312 .145 12 2000 1500
12-24 1-1/4 #5 .216 .207 .172 .168 .655 .603 .202 .190 .500 .250 1/8 2700 2200
1/4 2760 4000
There is no single standard for #4 and #5 304 SS self drilling screws. These values are approx only and deviations from these specification may occur.

AISI 304 Stainless Steel Screw Tolerance on Length

 7/8 inch length = +/- .04 1-1/4 inch length = +/- .05

Stainless steel grade 304 Socket Head Cap Screw Dimensions

Metric Screw Dimensions Body Diameter Hex Key Size Head Height Head Diameter Max. Thread Length Min. Thread Length
M2 x 0.4 2.00 1.5 2.00 3.80 12 4
M2.5 x 0.45 2.50 2.0 2.36 4.32 12 5
M3 x 0.5 2.50 2.5 3.00 5.50 35 5
M4 x 0.7 4.00 3.0 4.00 7.00 50 6
M5 x 0.8 5.00 4.0 5.00 8.50 70 6
M6 x 1.0 6.00 5.0 6.00 10.00 110 8
M8 x 1.25 8.00 6.0 8.00 13.00 150 10
M10 x 1.5 10.00 8.0 10.00 16.00 150 10
M12 x 1.75 12.00 10.0 12.00 18.00 150 12
M16 x 2.0 16.00 14.0 16.00 24.00 180 25
M20 x 2.5 20.00 17.0 20.00 30.00 200 30
M24 x 3.0 24.00 19.0 24.00 36.00 260 40
M30 x 3.5 30.00 22.0 30.00 45.00 300 80
M36 x 4.0 36.00 27.0 26.00 54.00 260 80

Stainless Steel 304 Screw Price List

Products FOB Price US $
304 Stainless Steel Screw US $0.03-$0.10/ Piece
DIN7985 stainless steel 304 pan head machine screws US $0.01/ Piece
A2 Stainless Steel Screw DIN912 US $0.003-$0.08/ Piece
304 Stainless steel anti-theft screw US $0.003-$0.05/ Piece
SS 304 torx head screw US $0.003-$0.05/ Piece
M8 allen hex socket 304 Stainless Steel Screw US $0.025-$0.35/ Piece
SS 304 button head screw US $0.025-$0.35/ Piece
Passivated DIN912 Metric Stainless Steel 304 Hex Socket Head Cap Screws US $0.01-$0.98/ Piece
Stainless Steel 304 Machine Screw M3 Phillips Countersunk Flat Head US $0.02-$0.10/ Piece
SS 304 Self Tapping Screw US $0.01-$0.05/ Piece
Stainless steel 304 Decking screws US $0.01-$0.05/ Piece
DIN916 stainless steel 304 grub screw US $0.01-$0.10/ Piece

Call us or send us an email to marketing@rolexmetals.com for more details. Always compare our price with other Stainless Steel 304 Screw manufacturers in India or China

SS 304 Screw Head Types

SS 304 Screw Head Types

A2-70 SS 304 Screw Weight

ASTM F593 304 Stainless Steel MACHINE SCREWS & Type 1, 23, F and G Stainless steel grade 304 TAPPING SCREWS

LBS. Per 1000 pieces

LENGTHS #2 #3 #4 #5 #6 #8 #10 #12 1/4" 5/16" 3/8"
1/8 0.40 0.55 0.70 1.1 1.4 --- --- --- --- --- ---
3/16 0.50 0.70 0.90 1.2 1.5 2.5 3.9 --- --- --- ---
1/4 0.60 0.80 1.00 1.4 1.7 2.8 4.3 5.6 8.5 --- ---
5/16 0.60 0.90 1.20 1.5 1.9 3.1 4.6 6.1 9.1 16.7 ---
3/8 0.70 0.90 1.30 1.7 2.1 3.4 5.0 6.5 9.8 17.7 29.2
7/16 0.80 1.00 1.50 1.9 2.2 3.6 5.4 6.9 10.4 18.8 30.7
1/2 0.80 1.10 1.60 2.0 2.4 3.9 5.8 7.4 11.1 19.8 32.2
9/16 0.90 1.20 1.70 2.2 2.6 4.2 6.2 7.8 11.7 20.9 33.6
5/8 1.00 1.30 1.80 2.3 2.8 4.5 6.6 8.3 12.4 21.9 35.1
3/4 1.10 1.50 2.10 2.6 3.2 5.0 7.3 9.2 13.6 24.0 38.0
7/8 1.30 1.70 2.30 3.0 3.5 5.6 8.1 10.1 14.9 26.1 41.0
1" 1.40 1.90 2.50 3.4 3.9 6.2 8.9 11.0 16.1 28.8 44.0
1-1/8" 1.50 2.00 2.80 3.8 4.3 6.7 9.6 11.9 17.4 30.2 47.0
1-1/4" 1.60 2.20 3.00 4.1 4.6 7.3 10.4 12.8 18.7 32.3 49.8
1-1/2" 1.80 2.50 3.50 4.7 5.3 8.3 11.9 14.7 21.2 36.5 55.8
1-3/4" 2.10 2.90 4.00 5.3 6.1 9.4 13.5 16.5 23.7 40.7 61.7
2" 2.40 3.30 4.50 6.0 6.8 10.6 15.0 18.3 26.2 44.8 67.6
2-1/4" 2.60 3.60 5.00 6.7 7.6 11.8 16.6 20.1 28.8 19.0 73.5
2-1/2" 2.80 3.90 5.50 7.3 8.3 12.9 18.1 22.0 31.3 53.2 79.5
2-3/4" 3.10 4.30 6.00 7.9 9.1 13.9 19.7 23.8 33.9 57.3 85.3
3" 3.40 4.70 6.50 8.6 9.8 15.0 21.2 25.6 36.4 61.5 91.3

ASTM F593 304 Stainless Steel Screw Torque Chart

Maximum Tightening Torques (Nm) ISO 4026 / DIN 913 ISO 4027 / DIN 914 ISO 4028 / DIN 915
Screw Standard DIN 6912 DIN 7894 DIN 7991 ISO 7380 ISO 4029 / DIN 916
Material / Grade A2-70 (SS 304 Screw) A2-70 (SS 304 Screw) A2-70 (SS 304 Screw) A2-70 (SS 304 Screw) A2-70 (SS 304 Screw)
Thread Size
M3 - 0.6 0.5 0.5 0.2
M4 1 1.2 1 1 0.5
M5 4 2.5 2.5 2 1.5
M6 5 5 4.5 4 2.5
M8 12 7 8 6 5
M10 24 21 20 15 10
M12 40 30 33 30 22
M14 66 - 50 - 22
M16 110 66 55 - 45
M18 - - - - 70
M20 170 120 75 - 70
M22 - - - - 110
M24 - 235 200 - 110

Stainless Steel 304 Screw Uses and Application

  • Nuclear Energy Sector
  • Offshore & Chemical Industry
  • Electrical & Agriculture Industry
  • Engineering & Aerospace Industry
  • Stainless Steel 304 Screw for Construction
  • High quality 304 Stainless Steel Petrochemical Screws
  • High Strength A193 B8 SS 304 Hex Screws for Automotive industry
  • Large size SS 304 Screw for Oil & Gas Industries
  • Metric A2-70 AISI 304 Hex Head Screw for Power Generation
  • ASTM F593 304 Stainless Steel Screw suitable for Off-Shore Oil Drilling
  • Heavy duty Stainless steel grade 304 Screws for Heat Exchangers

304 Stainless Steel Screw Testing Tool & Equipment

  • Coordinate Measuring Machine
  • Image measuring instrument
  • Routine inspection of calipers
  • Roughness tester used to test the surface finish of a Stainless Steel 304 Screw
  • Micrometer for accurate measurement of Stainless Steel 304 Screw
  • Thread gauge and Smooth plug gauge used to check Stainless steel grade 304 Screws quickly

SS 304 Screws Sizes

A2-70 AISI 304 Screw Size Body Dia Hex Key Size Head Height Head Dia Maximum Thread Length Minimum Thread Length
No. 0 0.06 0.05 0.06 0.096  5/8  3/8
No. 1 0.073 1/16 0.073 0.118  7/8  3/8
No. 2 0.086  5/64 0.086 0.14  7/8  1/2
No. 3 0.099  5/64 0.099 0.161  7/8  1/2
No. 4 0.112  3/32 0.112 0.183  11/8  11/16
No. 5 0.125  3/32 0.125 0.205 1  11/16
No. 6 0.138  7/64 0.138 0.226  11/8  11/16
No. 8 0.164  9/64 0.164 0.27  11/4  3/4
No. 10 0.19  5/32 0.19 0.312  13/8  15/16
No. 12 0.216  5/32 0.216 0.345  11/4  15/16
1/4 0.250  3/16 1/4 3/8  11/2  15/16
5/16 0.3125 1/4 5/16 15/32 1-3/4 1-1/16
3/8 0.375 5/16 3/8 9/16 2 1-3/16
7/16 0.438 3/8 7/16 21/32 2-1/4 13/16
1/2 0.500 3/8 1/2 3/4 2-1/2 1-3/8
9/16 0.5625 7/16 9/16 27/32 2-7/16 1-5/8
5/8 0.625 1/2 5/8 15/16 3 1-5/8
3/4 0.750 5/8 3/4 11/8 3-1/2 1-7/8
7/8 0.875 3/4 7/8 15/16 3-3/4 2-1/16
1 1.000 3/4 1 11/2 4-1/2 2-1/4
1-1/8 1.125 7/8 1-1/8 111/16 4-21/32 2-13/16
1-1/4 1.250 7/8 1-1/4 17/8 5-3/32 3-1/8
1-1/2 1.500 1 1-1/2 21/4 6-5/64 3-3/4
1-3/4 1.750 11/4 1-3/4 25/8 7-1/8 4-3/8
2 2.000 11/2 2 3 8-7/64 5

Chemical Composition of 304 Stainless Steel Hex Screw

Grade C Mn Si P S Cr Mo Ni N
304 Screw min. max. - 0.08 - 2.0 - 0.75 - 0.045 - 0.030 18.0 20.0 - 8.0 10.5 - 0.10
304L Screw min. max. - 0.030 - 2.0 - 0.75 - 0.045 - 0.030 18.0 20.0 - 8.0 12.0 - 0.10
304H Screw min. max. 0.04 0.10 - 2.0 - 0.75 - 0.045 - 0.030 18.0 20.0 - 8.0 10.5 -

Mechanical Properties of A193 B8 SS 304 Screw

Grade Tensile Strength (MPa) min Yield Stress 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brine-ll (HB) max
304 Screw 515 205 40 92 201
304L Screw 485 170 40 92 201
304H Screw 515 205 40 92 201

SS 304 Screw Strength

Screw Grade Elastic Modulus (GPa) Density (kg/m3) Mean Coefficient of Thermal Expansion (m/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity(n.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
304/L/H 193 8000 17.2 17.8 18.4 16.2 21.5 500 720

SS 304 Screw Equivalent Grade

Stainless Steel Notation AISI Grade Equivalent JIS Equivalent EN/DIN Numerical Equivalent UNS
designation 		EN/DIN Symbolical Equivalent
SS 304 Screw AISI 304 SUS304 EN 1.4301 UNS S30400 X4CrNi18-10
SS 304L Screw AISI 304L SUS304L EN 1.4307 UNS S30403 X2CrNi18-9
SS 304H Screw AISI 304H SUS304H EN 1.4948 UNS S30409 X2CrNiN18-10



fasteners
Flanges

Fittings

Pipes

Weight Calculator

© 2020 All Rights Reserved by Rolex Metal Distributors

We are On:
