UNS S31603 Hex Bolt, Stud, Threaded Rod & SS 316L Fasteners manufacturer in India

316L Bolts specifications mandate the standards and requirements of bolts and nuts in the 316 grade material. Rolex Metal Distributors is a manufacturer & exporter of all kinds of 316L Stainless Steel Bolts and in other material grades as well. We manufacture the S31600 Bolt which are the second most used of stainless steel grades next to the 304 material. Our Stainless Steel 316L Fasteners are of superior quality and are used in various industries such as food processing plants and components, marine and sea water applications, petrochemical industries and in aerospace industry as well. These SS 316L Hex Bolts are a chromium nickel alloy with molybdenum in it. The addition of molybdenum makes the 316L Stainless Steel Stud Bolts Yield Strength to be higher with better anticorrosive properties. There is a lower carbon version of the same material as well. The SS 316L Nuts and Bolts are made up of the lower carbon version of the material and they are less corrosive and highly weldable. The 1.4404 Nut Bolt are the specification for 316 and 316L grade bolts, nuts and other fasteners. Our 316L SS Threaded Rod & Studs are stronger and durable. The ASTM A193 316L Fasteners are slightly costlier than the SS 304 bolts but they are of high yield and tensile strength with added anticorrosive properties and high weldability. Therefore our UNS S31603 Screws and nuts are preferred in high cost applications. You can get a full list of products and pricing upon contacting us.

Grade 316L Fasteners

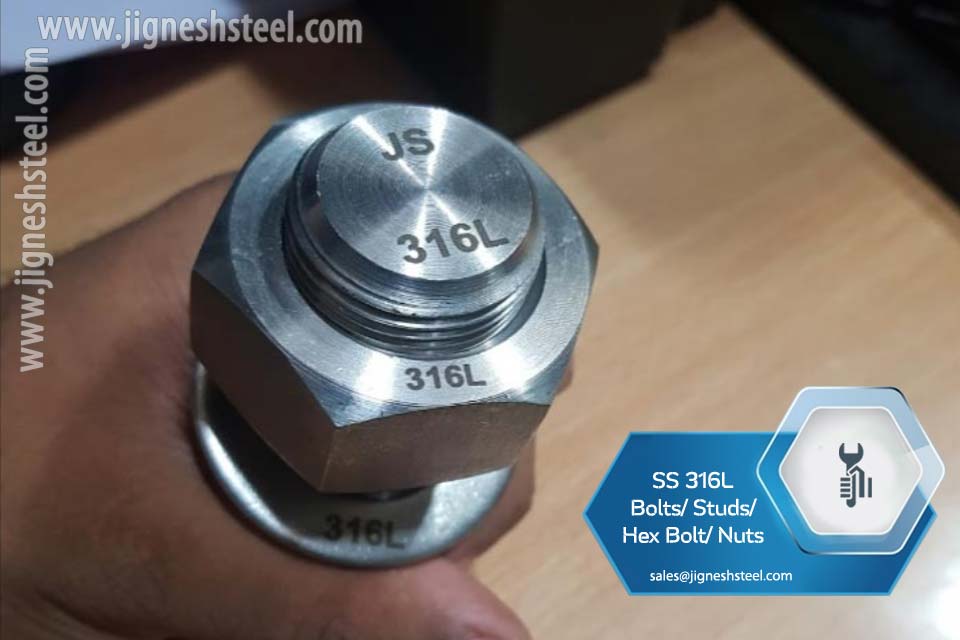

Stainless Steel 316L Bolts and Nuts

UNS S31603 Threaded Rod and Studs

Alloy 316L Hex Bolt

316L Austenitic Stainless Steel Stud Bolt

SS 316L Nuts

ASTM A193 316L Lag Bolts, Toggle Bolts, Socket Screws, Spindle & Nuts in custom sizes

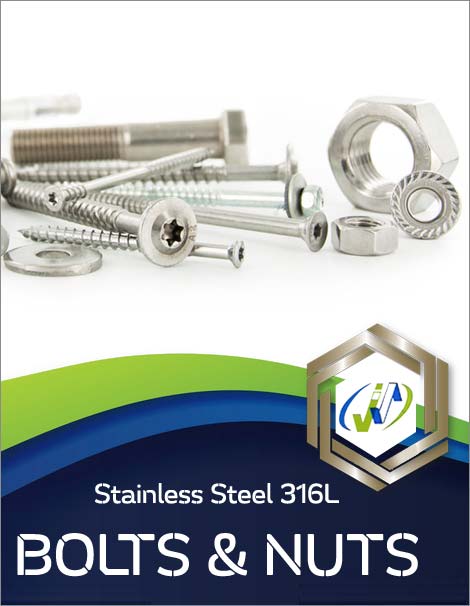

Types of Stainless Steel 316L Bolts and Nuts

Stainless Steel 316L Bolts and Nuts Price List India
Grade 316L Fasteners Specifications
Types of S31603 Stainless Steel Bolts
UNS S31603 Nuts Types
Alloy 316L Screws Types
Types of 316L Austenitic Stainless Steel Threaded Rod and Studs
Different types of SS 316L Washers
316L Stainless Steel Square Head Bolt Dimensions
AISI 316L S31603 Threaded Rod and Studs weight per foot
Stainless Steel 1.4404 Square Nuts Dimensions Metric
SUS 316L Beveled Washer Dimensions
Stainless Steel 316L Bolts and Nuts Physical Properties
Stainless Steel S31603 Fasteners Chemical Composition
A193 316L SS Bolts Mechanical Properties
Steel grade 316L Nut Bolt Equivalent Grade

Stainless Steel 316L Bolts and Nuts Price List India

Check Specification & price list of 316L Stainless Steel Bolts, wide range of AISI 316L Hanger Bolts, Square Head Bolts, Machine Bolts & other Fixings and fasteners ex Mumbai

Material	Price in India
Stainless Steel Split Washer (Box of 100pcs)	INR 99/-

Grade 316L Fasteners Specifications

Grade 316L Bolts	ANSI B18.2.1, DIN 931/ 933
S31603 Stainless Steel Hex Bolts Size Metric	Dia: M10 - M110 Length: 12 - 1200MM
UNS S31603 Hex Bolts Size Inch	Dia: 1/2" - 4.0" Length: 1/2" - 52"
Alloy 316L Eye Bolts Metric Size	Dia: M10 - M48
316L Austenitic Stainless Steel Stud Bolt Metric Size	Dia: M10 - M110 Length: 12 mm - 6000 mm
SS 316L Stud Bolt Inch	Dia: 1/2" - 4.1/2" Length: 1/2" - 236"
316L Stainless Steel Hex Nut (DIA)	Metric: M6 - M110 Inch: 1/4" - 4.5"
AISI 316L S31603 Plain Washer (DIA)	Metric: M6 - M110 Inch: 1/2" - 4.1/2"
Stainless Steel 316L Bolts and Nuts International Standard	IS, ANSI, ASTM DIN, ISO, JIS, GB, ASME, BS, UNI
Stainless Steel 1.4404 Bolts Standard Sizes	M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160
SUS 316L Fasteners Threads	BSF, UNF METRIC, UNC, UNEF, BSW or as required
ASME/ ANSI - American Standard Stainless Steel 316L Bolts and Nuts	ANSI B 28.2.4 1M ANSI B 18.2.4 2M ASME B18.5 ASME B18.2.2
DIN German Standard Stainless Steel 316L Bolts and Nuts	DIN 933, DIN 931, DIN 970, DIN 934
ISO Standard Stainless Steel S31603 Bolts	ISO 4033, : ISO 4032, JIS standards
A193 316L SS Bolts / Screws Head Drive	Phillips, Slotted, Phillips/Slot, Six-Lobe
MTC (Manufacturer Test Certificate)	EN 10204 / 3.1
Steel grade 316L Nut Bolt Finishing	Zinc white, (yellow, black, blue), black oxide, Dacroment, Geometry, plated zinc-nickel, anodizing, nickel plated, Stainless steel: Passivated Self-Colour, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, DACROMET and Mechanically Applied coating
Stainless 316L Fasteners Production Process	M2-M24: Cold Forging, hot forging M24-M100, machining and CNC for Customized connecting element
Stainless Steel 316L Bolts and Nuts Coating	Xylon Coated Fasteners Phosphate Coated Fasteners Hot Dipped Galvanizing Coated Fasteners Teflon Coated Fasteners Zinc Coated Fasteners Cadmium Coated Fasteners Ptfe Coated (Teflon) Fasteners
AISI 316L En 1.4404 Fasteners Packing	Wooden Pallet, Canton, Carton / Small Box or as required

Coating, Finishes & Platings

Zinc
Mechanical Galvanized
ASTM B766 Cadmium
Xylan 1424, 1014, 1070, 1052
Xylar 2
Hot-Dip Galvanized
Black Oxide
Phosphated
Zinc & Manganese
Fluoropolymer
Aluminizing
Armoloy

Sermagard
Chrome
Silver
Gold
Nickel
Copper
O2 Cleaning
Electropolishing
Passivation
Anodine
Molybdenum Disulfide
Rhodium

Types of S31603 Stainless Steel Bolts

Manufacturer of high tensile 316L SS Hex Tap Bolts, Bevelled Washer, Step Bolts and Thread Rolling Screws in India

Grade 316L Flange Bolts

S31603 Stainless Steel Heavy Hex Bolts

UNS S31603 Hex Bolts

Alloy 316L Square Bolts

316L Austenitic Stainless Steel U Bolts

SS 316L Eye Bolts

Grade 316L Lag Bolts

S31603 Stainless Steel Anchor Bolts

UNS S31603 Hex Head Bolts

Alloy 316L Carriage Bolts

316L Austenitic Stainless Steel Allen Cap Bolt

SS 316L Countersunk Bolts

UNS S31603 Nuts Types

Grade 316L Eye Nuts

S31603 Stainless Steel Heavy Hex Nuts

UNS S31603 Hex Nuts

Alloy 316L Jam Nuts

316L Austenitic Stainless Steel Lock Nuts

SS 316L Panel Nuts

316L Stainless Steel Square Nuts

AISI 316L S31603 T-Nuts For Wood

Stainless Steel 1.4404 Wheel Nuts and Caps

SUS 316L Wing Nuts

Stainless Steel S31603 Cage Nuts and Spring Nuts

A193 316L SS Self Locking Nuts

Alloy 316L Screws Types

316L screws are made up of 316L material but of a lower carbon version. The 316L material is a nickel chromium alloy with added molybdenum in it. This combination makes the already corrosion resistant material more corrosion resistant. We manufacture different types of fasteners in this material for use especially in chloride rich environments. The 316L Stainless Steel Deck Screws are sharper and longer and are specifically designed to fit with wooden or other non-metallic boards. There are other types such as the 316L Stainless Steel grub screws which lack the head so that they could be fully incorporated into the fastening surface.

We also produce the Stainless Steel 316L countersunk screws which are used to make sure that the screw is screwed down as deep as possible so that the surface could be covered with other material without being blocked by the screw. Due to the lower carbon content, the corrosion is very low but the strength is also compromised to a certain level in the 316L fasteners. On the other hand, these are useful in applications that require high corrosion resistance and permanent use such as the 316L Stainless Steel Set screws. These screws are used in a manner that they are used to penetrate cement structures and concrete without the aid of any anchoring devices. We also supply Grade 316L socket head cap screw which are used in interior and exterior applications that require and aesthetic appeal. Contact us for further information.

Steel grade 316L Tek Screws

Stainless 316L Deck Screws

AISI 316L En 1.4404 Concrete Screws

Stainless Steel 316L Socket Head Cap Screw

Grade 316L Eye Screw

S31603 Stainless Steel Thumb Screw

UNS S31603 Wood Screw

Alloy 316L Coach Screw

316L Austenitic Stainless Steel Hex Head Lag Screw

SS 316L 12-Point Flange Head Cap Screws

316L Stainless Steel Wing Screw

AISI 316L S31603 Captive Panel Screws

Stainless Steel 1.4404 Hex Cap Screw

SUS 316L Allen Cap Screw

Stainless Steel S31603 Grub Screw

A193 316L SS Fully Threaded Screw

Steel grade 316L Torx Screw

Stainless 316L Pan Head Screw

AISI 316L En 1.4404 Truss Head Screw

Stainless Steel 316L Flat Head Screw

Types of 316L Austenitic Stainless Steel Threaded Rod and Studs

Buy online Stainless Steel 316L Fasteners, Plow Bolts, Lock Washer & Hex Head Bolts With Plain Spring Washer at lowest cost, exporter & supplier of SS 316L Hex Tap Bolts & Tie Rods

Grade 316L Stud Bolts

S31603 Stainless Steel Double Ended Studs

UNS S31603 Tie Rod

Alloy 316L Fully Threaded Studs

316L Austenitic Stainless Steel Threaded Rod

SS 316L Unc Stud Bolt

Different types of SS 316L Washers

316L Austenitic Stainless Steel Belleville Washer

SS 316L Shim Washer

316L Stainless Steel Square Plate Washer

AISI 316L S31603 Square Washer

Grade 316L Cup Washer

S31603 Stainless Steel Square Washer

UNS S31603 Lock Washer

Alloy 316L Countersunk Washer

Stainless Steel 1.4404 Penny Washer

SUS 316L Machine Washers

Polished Stainless Steel S31603 Washer

A193 316L SS Ring Washers

316L Stainless Steel Square Head Bolt Dimensions

Dimensions as per ASME B18.2.1 1996

Bolt Size	D	F			C		H
	Diameter	Width Across Flats			Width Across Corners		Height
	Maximum	Basic	Maximum	Minimum	Maximum	Minimum	Basic	Maximum	Minimum
1/2	0.515	3/4	0.750	0.725	1.061	0.995	21/64	0.348	0.308
5/8	0.642	15/16	0.938	0.906	1.326	1.244	27/64	0.444	0.400
3/4	0.768	11/8	1.125	1.088	1.591	1.494	1/2	0.524	0.476
7/8	0.895	15/16	1.312	1.269	1.856	1.742	19/32	0.620	0.568
1	1.022	11/2	1.500	1.450	2.121	1.991	21/32	0.684	0.628
11/8	1.149	111/16	1.688	1.631	2.386	2.239	3/4	0.780	0.720
11/4	1.277	17/8	1.875	1.812	2.652	2.489	27/32	0.876	0.812
13/8	1.404	21/16	2.062	1.994	2.917	2.738	29/32	0.940	0.872
11/2	1.531	21/4	2.250	2.175	3.182	2.986	1	1.036	0.964
13/4*		29/16					13/16
2*		215/16					15/16

Please note:

* ASME only defines head dimensions up to 1-1/2".
* Dimensions for 1-3/4 and 2" are approximate and not covered under the ASME dimensional specifications.

AISI 316L S31603 Threaded Rod and Studs weight per foot

SIZE	WEIGHT PER FOOT	SIZE	WEIGHT PER FOOT
No. 4 (40) No. 5 (40) No. 6 (32) No. 8 (32) No. 10 (24) No. 10 (32) 1/4 (20) 1/4 (28) 5/16 (18) 5/16 (24) 3/8 (16) 3/8 (24) 7/16 (14) 7/16 (20) 1/2 (13) 1/2 (20) 9/16 (12) 9/16 (18) 5/8 (11) 5/8 (18) 3/4 (10) 3/4 (16) 7/8 (9) 7/8 (14) 1 (8) 1 (12) 1 (14) 1 1/8 (7) 1 1/8 (8) 1 1/8 (12)	.024 .031 .036 .054 .069 .074 .122 .134 .199 .214 .293 .318 .402 .431 .533 .575 .678 .730 .843 .914 1.235 1.327 1.705 1.817 2.231 2.364 2.405 2.811 2.877 3.034	1 1/4 (7) 1 1/4 (8) 1 1/4 (12) 1 3/8 (6) 1 3/8 (8) 1 3/8 (12) 1 1/2 (6) 1 1/2 (8) 1 1/2 (12) 1 5/8 (5 1/2) 1 5/8 (8) 1 5/8 (12) 1 3/4 (5) 1 3/4 (8) 1 3/4 (12) 1 7/8 (5) 1 7/8 (8) 1 7/8 (12) 2 (4 1/2) 2 (8) 2 (12) 2 1/4 (8) 2 1/2 (8) 2 3/4 (8) 3 (8) 3 1/4 (8) 3 1/2 (8) 3 3/4 (8)	3.537 3.618 3.787 4.232 4.423 4.624 5.122 5.338 5.544 6.016 6.316 6.548 6.947 7.384 7.635 8.065 8.536 8.805 9.118 9.761 10.059 12.45 15.5 18.89 22.6 26.71 31.11 35.83

SIZE

WEIGHT PER FOOT

SIZE

WEIGHT PER FOOT

No. 4 (40)

No. 5 (40)

No. 6 (32)

No. 8 (32)

No. 10 (24)

No. 10 (32)

1/4 (20)

1/4 (28)

5/16 (18)

5/16 (24)

3/8 (16)

3/8 (24)

7/16 (14)

7/16 (20)

1/2 (13)

1/2 (20)

9/16 (12)

9/16 (18)

5/8 (11)

5/8 (18)

3/4 (10)

3/4 (16)

7/8 (9)

7/8 (14)

1 (8)

1 (12)

1 (14)

1 1/8 (7)

1 1/8 (8)

1 1/8 (12)

.024

.031

.036

.054

.069

.074

.122

.134

.199

.214

.293

.318

.402

.431

.533

.575

.678

.730

.843

.914

1.235

1.327

1.705

1.817

2.231

2.364

2.405

2.811

2.877

3.034

1 1/4 (7)

1 1/4 (8)

1 1/4 (12)

1 3/8 (6)

1 3/8 (8)

1 3/8 (12)

1 1/2 (6)

1 1/2 (8)

1 1/2 (12)

1 5/8 (5 1/2)

1 5/8 (8)

1 5/8 (12)

1 3/4 (5)

1 3/4 (8)

1 3/4 (12)

1 7/8 (5)

1 7/8 (8)

1 7/8 (12)

2 (4 1/2)

2 (8)

2 (12)

2 1/4 (8)

2 1/2 (8)

2 3/4 (8)

3 (8)

3 1/4 (8)

3 1/2 (8)

3 3/4 (8)

3.537

3.618

3.787

4.232

4.423

4.624

5.122

5.338

5.544

6.016

6.316

6.548

6.947

7.384

7.635

8.065

8.536

8.805

9.118

9.761

10.059

12.45

15.5

18.89

22.6

26.71

31.11

35.83

Stainless Steel 1.4404 Square Nuts Dimensions Metric

Dimensions as per ASME B18.2.2 1987 (1999)

Size	F			C		H
	Width Across Flats			Width Across Corners		Thickness
	Basic	Maximum	Minimum	Maximum	Minimum	Basic	Maximum	Minimum
1/2	13/16	0.812	0.788	1.149	1.052	7/16	0.458	0.418
5/8	1	1.000	0.969	1.414	1.300	35/64	0.569	0.525
3/4	11/8	1.125	1.088	1.591	1.464	21/32	0.680	0.632
7/8	15/16	1.312	1.269	1.856	1.712	49/64	0.792	0.740
1	11/2	1.500	1.450	2.121	1.961	7/8	0.903	0.847
11/8	111/16	1.688	1.631	2.386	2.209	1	1.030	0.970
11/4	17/8	1.875	1.812	2.652	2.458	13/32	1.126	1.062
13/8	21/16	2.062	1.994	2.917	2.708	113/64	1.237	1.169
11/2	21/4	2.250	2.175	3.182	2.956	15/16	1.348	1.276

SUS 316L Beveled Washer Dimensions

Bolt Size	A	B	C	T	D	Weight (lbs.) Per 100 Pieces
Bolt Size	Square Dimension	Thickness			Diameter	Weight (lbs.) Per 100 Pieces
1⁄2	1.25	0.34	0.12	0.23	0.56	7.40
5⁄8	1.50	0.38	0.12	0.25	0.69	12.00
3⁄4	1.50	0.44	0.19	0.31	0.81	13.60
7⁄8	2.00	0.56	0.22	0.39	0.94	32.00
1	2.00	0.56	0.22	0.39	1.06	30.00
11⁄8	2.25	0.62	0.25	0.44	1.25	31.00
11⁄4	2.25	0.72	0.31	0.52	1.38	40.00
13⁄8	2.75	0.78	0.31	0.55	1.50	-
11⁄2	3.00	0.81	0.31	0.56	1.62	46.13

Stainless Steel 316L Bolts and Nuts Physical Properties

Heat Capacity	0.45 J/g-°C	0.108 BTU/lb-°F
Thermal Conductivity	14.6 W/m-K	101 BTU-in/hr-ft²-°F
Melting Range	1390 - 1440 °C	2530 - 2620 °F
Solidus	1390 °C	2530 °F
Liquidus	1440 °C	2620 °F
Max Service Temperature, Air	899 °C	1650 °F
CTE, linear 20°C	16.5 µm/m-°C	9.17 µin/in-°F
CTE, linear 500°C	18.2 µm/m-°C	10.1 µin/in-°F
CTE, linear 1000°C	19.5 µm/m-°C	10.8 µin/in-°F

Stainless Steel S31603 Fasteners Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316L Bolts	Min	-	-	-	-	-	16.0	2.00	10.0	-
316L Bolts	Max	0.03	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316H Bolts	Min	0.04	0.04	0	-	-	16.0	2.00	10.0	-
316H Bolts	Max	0.10	0.10	0.75	0.045	0.03	18.0	3.00	14.0	-

A193 316L SS Bolts Mechanical Properties

Hardness, Brinell	Max 217	Max 217
Charpy Impact	88 – 134 J	64.9 – 98.8 ft-lb
Hardness, Rockwell B	Max 95	Max 95
Tensile Stress, Ultimate	Min 485 MPa	Min 70300 psi
Tensile Stress, Yield	Min 170 MPa	Min 24700 psi
Elongation at Break	Min 40 %	Min 40 %
Modulus of Elasticity	200 GPa	29000 ksi
Shear Modulus	82 GPa	11900 ksi

Steel grade 316L Nut Bolt Equivalent Grade

British (BS)	French	German (EN)	Italian	Japanese (SUS)	Swedish	USA (SS)
316S11316S13	Z2CND17.12	1.44041.4435	X2CrNiMo 17 12	SUS316L	14 23 5314 23 48	316L
