Stainless Steel Threaded Rod manufacturer

  • Home
  • Stainless Steel Threaded Rod

ASTM A193 Grade B8 Fully Threaded Rod and Stainless Steel 304 Partially Threaded Bars exporter in India

The Stainless Steel Threaded Rod manufacturers use austenitic grade 304 and 316 stainless steel as material to produce these threaded rods. The alloy of 316 Stainless Steel Threaded Rod contains three main alloying elements like chromium, nickel and molybdenum. Each of these alloyants brings about some enhancement to the stainless steel. For instance, the increased tensile strength, hardness as well as toughness of the A4 Stainless Steel Threaded Rod can be credited to the addition of chromium. Molybdenum counter acts the brittleness that can occur in the SS Threaded Rod at elevated temperatures due to the high content of chromium.

Nickel in the alloy of a A4 threaded rod can boost the corrosion resistance. As compared to grade 304 Stainless Steel Threaded Rod, the corrosion resistance of the SS Metric Threaded Rod is far superior. As the SS Left Hand Threaded Rod has good corrosion resistance to brine, saline or marine environments, it is usually referred to as marine grade stainless steel. The SS Long Threaded Rod also has good weldable properties due to the low carbon content in its alloy. Commonly used sizes of these threaded rods include both the m12 & the m10 A4 threaded rod. We are one of the leading A2 Stainless Steel Threaded Rod & SS Threaded Bars manufacturers in India.

SS Threaded Rod is often referred to as a stud it is a rod of different length that is threaded in a helical structure. It is similar in appearance to a screw; the threading extends around and along the rod to cause rotational movements when in use. It combines linear and rotational movement to create strong resistance to pressure. The rotation direction caused by a threaded rod depends on whether the rod has left-hand thread, right-hand thread, or both of them.

It is designed to resist very high levels of tension and pressure, it is common fixing for support systems and it is used for a wide variety of applications. 304 Stainless Steel Threaded Rod can resist shock and abrasive conditions found in the kitchen or food processing plant. It is considered to be resistant to potable water with up to about 200 mg/L chloride at ambient temperatures. It is often used in electrical enclosures, auto molding and trim, wheel covers, kitchen equipment, hose clamps, exhaust manifolds, stainless hardware, storage tanks, pressure vessels and piping. 18-8 Stainless Steel Threaded Rod has superior corrosion resistance. However, it is known to provide signs of corrosion when exposed to chlorides, such as salt. 316 Stainless Steel Threaded Rod is heat-resistant with superior corrosion resistance as compared to other chromium-nickel steels when it is exposed to many types of chemical corrodents such as brine solutions, sea water, and the like. Since it contains molybdenum bearing it has a greater resistance to chemical attack also. Partially Threaded Rod has partial threads that start from the bottom of the rod length. The area where the rod has no thread is known as a “grip length”. The measurement of the grip length will differ according to the deliberated application for the rod. These rods are frequently used in pumps, motors, and alternators, etc. Acme Threaded Rod has 29 degree angle, are broader, stronger, and squarer than standard V-shaped threads. It is the best choice for carrying loads and power transmission. It is useful in industrial applications which need heavy torque and power transmission such as lathes, milling machines and presses.

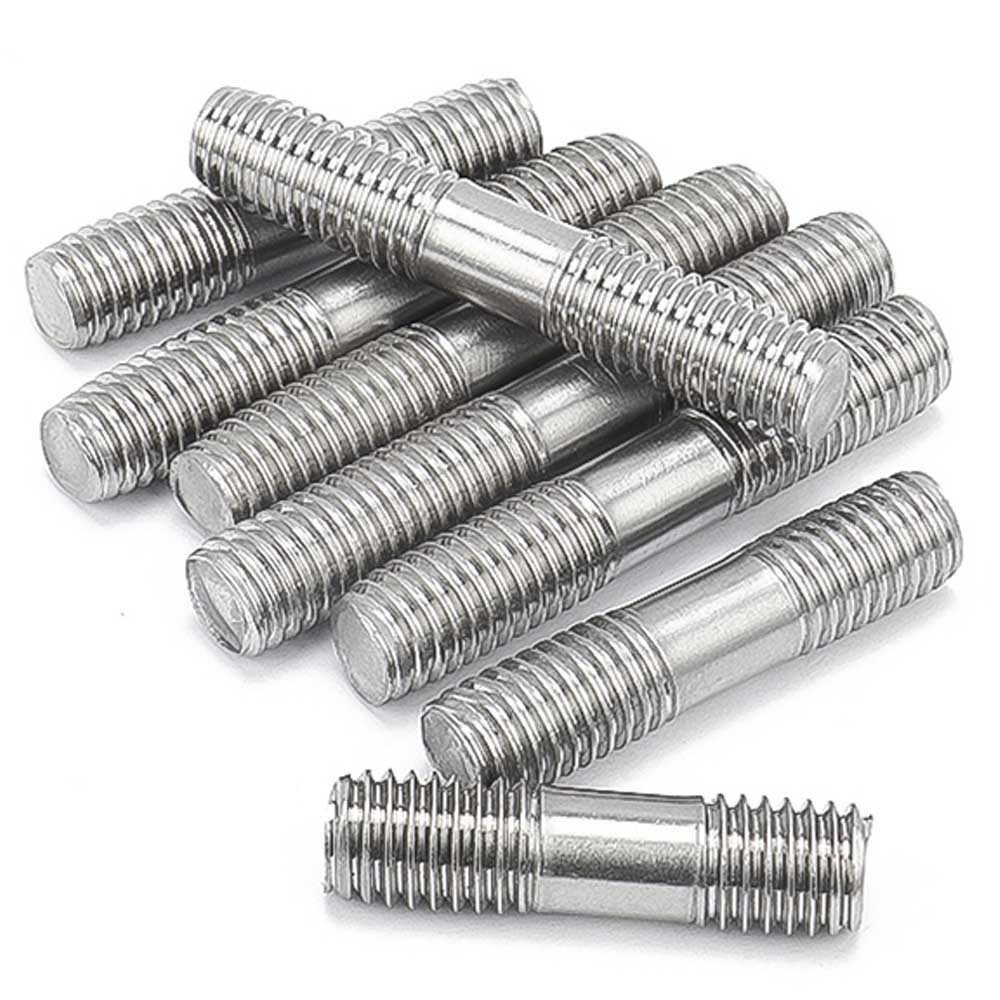

Stainless Steel Threaded Rod

Stainless Steel Threaded Rod

316 Stainless Steel Threaded Rod

316 Stainless Steel Threaded Rod

304 Stainless Steel Threaded Rod

304 Stainless Steel Threaded Rod

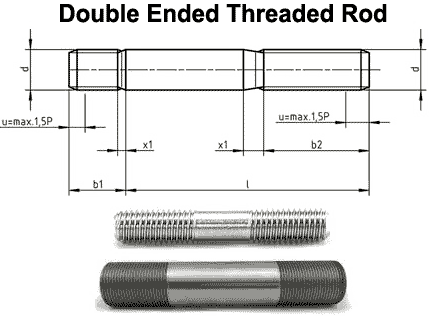

316 Stainless Steel Double Ended Threaded Rod manufacturer in India offers Metric Screw Thread (mm) and Unified Screw Thread (inches) SS Threaded Rod at best price in Mumbai

Stainless Steel Threaded Rod

Table of contents

Stainless Steel Threaded Rod Specifications

ASTM A193 B8M Threaded Rod in all Metric sizes M16 M12 M10, High Tensile Stainless Steel Threaded Bars in Acme/ Trapezoidal threads

DIN Standard Din 975, Din 976
Stainless Steel Threaded Rod Size
  • Cold Forming process: M2-M24
  • Hot Forging process: M24-M100, 1-1/2” Dia, up to 1100mm lg
  • CNC Machining for M100 / 4” Dia, up to 1500mm lg

Manufacturing M2, M3, M3.5, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M45, M48 to M160 and Custom Metric Stainless Steel Threaded Rod
Threaded Rod Size Metric
  • Dia: M10 - M110
  • Length: 12 - 1200MM
Threaded Rod Size Inch
  • Dia: 1/2" - 4.0"
  • Length: 1/2" - 52"
Standard

IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN, and all International Standards

  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • ANSI - American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
SS Threaded Rod British standards
  • BS 6105 a2-70
  • BS 6105 a4-70
  • BS 6105 a4-80
  • BS 6105 a2-50
Length 3 mm to 200 mm
Stainless Steel Threaded Rod US Threads METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
UTS - Unified Thread Standard UNC, UNF, NPT, UNS, UNEF, NPTF
Dimensions ASME B18.6.3 **Exception: Threaded Rod 6 inches and shorter are fully threaded.
Metric Threaded Rod Tolerances +/-0.01mm to +/-0.05mm
Threaded Rod Surface Finish Zinc (yellow, blue, white, black), black oxide, Dacroment, anodizing, plated zinc-nickel, nickel plated, Geometry, Stainless steel: Passivated, Self-Colour, Hot Dip Galvanised (HDG), Sherardized, Bright Zinc Plated (BZP), Mechanically Applied coating and some special one like DACROMET
Finish/ Passivation of Stainless Steel Threaded Rod Accordance to ASTM A380/A380M
Manufacturing process Wire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
Material Origin Stainless Steel Threaded Rod are Western European. Eastern origin possible on request.
Stainless Steel Threaded Rod Surface Coating
  • Ptfe Coated Threaded Rod
  • Hot Dipped Galvanized
  • Phosphate
  • Teflon
  • Xylon
  • Zinc Phosphate
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium

All Threaded Rod surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE.
Threaded Rod Surface treatment
  • Polish
  • Passivation
  • Black oxide coating
  • Anodizing
  • Sand blasting
  • Rust preventive oil
  • Heat-disposing
  • Hot dip galvanized
  • Electroplating color (blue, black zinc, white, Ni, Cr, copper, tin, silver)
Top Manufacturers Omni, APL, Unbrako, Kundan, Deepak Fasteners, Sundaram Precision, Infasco, Caparo, EBY Fastener, SPAX® Screws, GKW Etc.
Stainless Steel Threaded Rod marking and Packing
  • Threaded Rod Marking as per product specification
  • Wooden Pallet, Canton, Carton / Small Box or as required
  • Carton size : 36* 24 *16 CM & 36 *24 *12 CM  or as required
  • Pallet size: Standard Euro Pallet 110* 80 *90 CM
Why Rolex Metal Distributors?
  • Indian manufacturer, established in Year 2008
  • Wide International network : Western Europe, Eastern Europe, Middle East, Southeast Asia, North America, and South America
  • Best Price in India compared to Stainless Steel Threaded Rod manufacturers in China
  • Highly professional and technical team
  • Always final Inspection before shipment
  • Pre-production Threaded Rod sample before mass production
  • High precision threads
MOQ 5 pieces
Preferred Threaded Rod Drawing Formats JPEG, PDF, CAD, STP, IGS
Test Certificates
  • Manufacturer Test Certificate (MTC) as per EN 10204 / 3.1,
  • Threaded Rod Tensile testing to ISO 898-1
  • Hardness testing to ISO 6508-1
  • Suitability for preloading to EN 14399-2
  • Tri-Roll Thread Comparators
  • Threaded Rod Charpy Impact testing in accordance with ISO 148-1
  • Suitability test for calibrated preload to EN 14399-10
  • Nut proof load testing to ISO 898-2
  • Calibrated gauges and tools
  • NACE MR0175 / MR0103 and ISO 15156 Compliance
Free Samples Yes
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping
Common Threaded Rod material grades
  • Stainless Steel Threaded Rod: 304, 316, 316L, 2205, 410, 431, 416, 440C, 18-8, 4.8, 8.8, A2, A4, A2-50, A2-70, A2-80, A4-50, A4-70, A4-80, A193 B8M, A193 B6, A193 B7m, A193 B8 Threaded Rod
  • Carbon Steel Threaded Rod : A193 Grade B7, A320 L7
  • Alloy steel Threaded Rod: SCM435, C10B21, C10B33, ASTM A193 Grade B16
  • High Tensile Threaded Rod: 10.9 Grade, 12.9 Grade, 8.8 Grade Threaded Rod
  • Brass Threaded Rod: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
  • Bronze Threaded Rod: C51000, C52100, C54400 etc
  • Aluminum Threaded Rod: Al6061, Al6063 etc
  • Titanium Threaded Rod: TAD, TA1-TA8, TB2, TC1-TC10
Port of Dispatch Mumbai or Kalamboli ports in Maharashtra state of India
Threaded Rod Application and Uses Industrial, Wind tower, Railway, Nuclear power, Construction, Electronic, and Automotive industry
ISO - International Organization for Standardization

Stainless Steel Threaded Rod Price List

Special price for 1 Inch Stainless Steel Threaded Rod and grade A2-70/ A4-70 Screw Rod in Mumbai, view Metric sizes, dimensions and price list ex Mumbai.

Products FOB Price US $
Stainless Steel Threaded Rod US $0.01-$0.05/ Piece
Stainless Steel Hot Dip Galvanized Double End Threaded Rod, Acme US $0.10-$0.30/ Piece
Threaded Stainless Steel Grounding Rod US $1.99-$9.99/ Piece
Acme DIN 975 M5 M10M12 M20 Stainless Steel Thread Rod US $0.01-$0.10/ Piece
M38 Grade 5.8 Fully Thread Rod US $0.01-$0.10/ Piece
20mm Partial Thread Rod US $0.01-$0.10/ Piece
A4 316 Stainless Steel Threaded Rod US $0.70-$1.00/ Piece
Stainless Steel Customized CNC Machining Stainless Steel Threaded Rods US $5.00/ Piece
Stainless Steel Internally Threaded Hollow Thread Rod US $1.50-$4.50/ Piece
316 / 316H / 316L Fasteners Stainless Steel Threaded Rod US $0.12-$0.20/ Piece
M12x1.25 Stainless Steel Threaded Rod US $0.001-$0.01/ Piece
Taiwan Quality DIN975 Thread Rod US $850.00/ Tonne
DIN975 304 / 316 Stainless Steel Full Thread Rod US $0.90-$1.00/ Piece

Call us or send us an email to marketing@rolexmetals.com for more details.

Stainless Steel Threaded Rod strength

Strength of SS Threaded Rod
Min. UTS N/mm²
Min. Yield Strength N/mm²
Elongation at Failure
A2 Stainless Steel Threaded Rod Class 50
500
210
0.6D
A2 Stainless Steel Threaded Rod Class 70
700
450
0.4D
A2 Stainless Steel Threaded Rod Class 80
800
600
0.3D

Types of Threaded Rod

Marine grade Stainless Steel Long Left Hand Threaded Rod manufacturer in India, ASTM F593 SS Threaded Bars also available in 18-8 / 410/ 431/ 416/ 440C/ 304L/ 316L and 303 grades

18-8 Stainless Steel Threaded Rod

18-8 Stainless Steel Threaded Rod

A4 Stainless Steel Threaded Rod

A4 Stainless Steel Threaded Rod

A2 Stainless Steel Threaded Rod

A2 Stainless Steel Threaded Rod

Left Hand Threaded Rod

Left Hand Threaded Rod

Partially Threaded Rod

Partially Threaded Rod

Acme Threaded Rod

Acme Threaded Rod

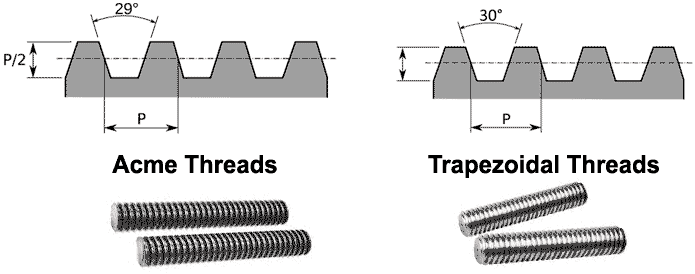

Acme vs. Trapezoidal Threaded Rod

The Acme thread form on the ACME Rod  is a 29° thread angle. The thread height of the ACME Nut And Bolt half of the pitch while the apex or its crest and valley or the root of the Nut And Bolt are flat. The shape of the Stainless Steel ACME Threaded Rod  much easier to machine as compared to a square thread. This is because the cutting of the ACME Threaded Rod is faster and it has a longer tool life in comparison to a square threaded rod. Another feature of the Metric ACME Rod is the shape of its tooth, which  has a wider base. This means the threaded rod is stronger. Hence, the acme threaded screw could carry a greater load as opposed to a similarly sized square thread screw. The Precision ACME Threaded Rod in combination with a split nut, can compensate for nut wear.

A disadvantage the Stainless Steel ACME Threaded Rod  faces in comparison to square threading is its lowered efficiency which is caused due to higher friction as well as some radial load on the nut due to the angular offset.
At Rolex Metal Distributors we are one of the leading acme threaded rod manufacturers in India.

Trapezoidal Threaded Bar is known for conversion of circular movement to a linear movement.  Since Trapezoidal Thread is a moving drive thread which endures a high friction rate, the threaded part of the screw is self-locking. This gives the Trapezoidal Threaded Rod an advantage of not being secured separately in a resting position.

Trapezoidal Threaded Rod are screws that are manufactured with a trapezoidal outline. Commonly used in the form of power screws or lead screws, these threaded rods offer ease in production as well as high tensile strength.
Trapezoidal studding can be usually found in applications where large loads are required. For example, Trapezoidal studding are visible in a vise or the leadscrew of a lathe.

Originally, the trapezoidal thread form  generally seen is the one with the 29° thread angle, also known as the Acme thread form. On the other hand, the Metric Trapezoidal Thread forms a 30° thread angle, which is coded as the Din 103 Trapezoidal Thread. When the manufacturing tolerances are taken into consideration, both the acme thread form as well as the Metric Trapezoidal Thread forms can be interchanged if the TPI or threads per inch is the same.

Acme vs. Trapezoidal Threaded Rod

External Thread Chart ACME Threaded Rod

Designation Size
Decimal		 TPI Tol.
Class		 Major Dia. Pitch Dia. Minor Dia.
Max. Min. Max. Min. Max Min.
1/4-16 0.25 16 2G 0.2500 0.2450 0.2148 0.2043 0.1775 0.1618
1/4-16 0.25 16 3G 0.2500 0.2450 0.2158 0.2109 0.1775 0.1702
1/4-16 0.25 16 4G 0.2500 0.2450 0.2168 0.2133 0.1775 0.1722
1/4-16 0.25 16 5G 0.2500 0.2450 0.2188 0.2160 0.1775 0.1733
5/16-14 0.3125 14 2G 0.3125 0.3075 0.2728 0.2614 0.2311 0.2140
5/16-14 0.3125 14 3G 0.3125 0.3075 0.2738 0.2685 0.2311 0.2231
5/16-14 0.3125 14 4G 0.3125 0.3075 0.2748 0.271 0.2311 0.2254
5/16-14 0.3125 14 5G 0.3125 0.3075 0.2768 0.2738 0.2311 0.2266
3/8-12 0.375 12 2G 0.3750 0.3700 0.3284 0.3161 0.2817 0.2632
3/8-12 0.375 12 3G 0.3750 0.3700 0.3296 0.3238 0.2817 0.2730
3/8-12 0.375 12 4G 0.3750 0.3700 0.3309 0.3268 0.2817 0.2755
3/8-12 0.375 12 5G 0.3750 0.3700 0.3333 0.33 0.2817 0.2767
7/16-12 0.4375 12 2G 0.4375 0.4325 0.3909 0.3783 0.3442 0.3253
7/16-12 0.4375 12 3G 0.4375 0.4325 0.3921 0.3862 0.3442 0.3354
7/16-12 0.4375 12 4G 0.4375 0.4325 0.3934 0.3892 0.3442 0.3379
7/16-12 0.4375 12 5G 0.4375 0.4325 0.3958 0.3924 0.3442 0.3391
1/2-10 0.5 10 2G 0.5000 0.4950 0.4443 0.4306 0.3800 0.3594
1/2-10 0.5 10 3G 0.5000 0.4950 0.4458 0.4394 0.3800 0.3704
1/2-10 0.5 10 4G 0.5000 0.4950 0.4472 0.4426 0.3800 0.3731
1/2-10 0.5 10 5G 0.5000 0.4950 0.45 0.4463 0.3800 0.3745
5/8-8 0.625 8 2G 0.6250 0.6188 0.5562 0.5408 0.4800 0.4569
5/8-8 0.625 8 3G 0.6250 0.6188 0.5578 0.5506 0.4800 0.4692
5/8-8 0.625 8 4G 0.6250 0.6188 0.5593 0.5542 0.4800 0.4723
5/8-8 0.625 8 5G 0.6250 0.6188 0.5625 0.5584 0.4800 0.4738
3/4-6 0.75 6 2G 0.7500 0.7417 0.6598 0.6424 0.5633 0.5372
3/4-6 0.75 6 3G 0.7500 0.7417 0.6615 0.6534 0.5633 0.5511
3/4-6 0.75 6 4G 0.7500 0.7417 0.6632 0.6574 0.5633 0.5546
3/4-6 0.75 6 5G 0.7500 0.7417 0.6667 0.662 0.5633 0.5563
7/8-6 0.875 6 2G 0.8750 0.8667 0.7842 0.7663 0.6883 0.6615
7/8-6 0.875 6 3G 0.8750 0.8667 0.7861 0.7778 0.6883 0.6758
7/8-6 0.875 6 4G 0.8750 0.8667 0.788 0.782 0.6883 0.6794
7/8-6 0.875 6 5G 0.8750 0.8667 0.7917 0.7869 0.6883 0.6811
1-5 1 5 2G 1.0000 0.9900 0.892 0.8726 0.7800 0.7509
1-5 1 5 3G 1.0000 0.9900 0.894 0.8849 0.7800 0.7664
1-5 1 5 4G 1.0000 0.9900 0.896 0.8895 0.7800 0.7703
1-5 1 5 5G 1.0000 0.9900 0.9 0.8948 0.7800 0.7722
1 1/8-5 1.125 5 2G 1.1250 1.1150 1.0165 0.9967 0.9050 0.8753
1 1/8-5 1.125 5 3G 1.1250 1.1150 1.0186 1.0094 0.9050 0.8912
1 1/8-5 1.125 5 4G 1.1250 1.1150 1.0208 1.0142 0.9050 0.8951
1 1/8-5 1.125 5 5G 1.1250 1.1150 1.025 1.0197 0.9050 0.8971
1 1/4-5 1.25 5 2G 1.2500 1.2400 1.1411 1.121 1.0300 0.9998
1 1/4-5 1.25 5 3G 1.2500 1.2400 1.1433 1.1339 1.0300 1.0159
1 1/4-5 1.25 5 4G 1.2500 1.2400 1.1455 1.1388 1.0300 1.0199
1 1/4-5 1.25 4 5G 1.2500 1.2400 1.15 1.1446 1.0300 1.0219
1 3/8-4 1.375 4 2G 1.3750 1.3625 1.2406 1.2188 1.1050 1.0720
1 3/8-4 1.375 4 3G 1.3750 1.3625 1.243 1.2327 1.1050 1.0896
1 3/8-4 1.375 4 4G 1.3750 1.3625 1.2453 1.238 1.1050 1.0940
1 3/8-4 1.375 4 5G 1.3750 1.3625 1.25 1.2441 1.1050 1.0962
1 1/2-4 1.5 4 2G 1.5000 1.4875 1.3652 1.3429 1.2300 1.1965
1 1/2-4 1.5 4 3G 1.5000 1.4875 1.3677 1.3573 1.2300 1.2144
1 1/2-4 1.5 4 4G 1.5000 1.4875 1.3701 1.3627 1.2300 1.2189
1 1/2-4 1.5 4 5G 1.5000 1.4875 1.375 1.369 1.2300 1.2210
1 3/4-4 1.75 4 2G 1.7500 1.7375 1.6145 1.5916 1.4800 1.4456
1 3/4-4 1.75 4 3G 1.7500 1.7375 1.6171 1.6064 1.4800 1.4640
1 3/4-4 1.75 4 4G 1.7500 1.7375 1.6198 1.6122 1.4800 1.4686
1 3/4-4 1.75 4 5G 1.7500 1.7375 1.625 1.6189 1.4800 1.4708
2-4 2 4 2G 2.0000 1.9875 1.8637 1.8402 1.7300 1.6948
2-4 2 4 3G 2.0000 1.9875 1.8665 1.8555 1.7300 1.7135
2-4 2 4 4G 2.0000 1.9875 1.8693 1.8615 1.7300 1.7183
2-4 2 4 5G 2.0000 1.9875 1.875 1.8687 1.7300 1.7206
2 1/4-3 2.25 3 2G 2.2500 2.2333 2.0713 2.045 1.8967 1.8572
2 1/4-3 2.25 3 3G 2.2500 2.2333 2.0743 2.062 1.8967 1.8783
2 1/4-3 2.25 3 4G 2.2500 2.2333 2.0773 2.0685 1.8967 1.8835
2 1/4-3 2.25 3 5G 2.2500 2.2333 2.0833 2.0763 1.8967 1.8862
2 1/2-3 2.5 3 2G 2.5000 2.4833 2.3207 2.2939 2.1467 2.1065
2 1/2-3 2.5 3 3G 2.5000 2.4833 2.3238 2.3113 2.1467 2.1279
2 1/2-3 2.5 3 4G 2.5000 2.4833 2.327 2.3181 2.1467 2.1333
2 1/2-3 2.5 3 5G 2.5000 2.4833 2.333 2.3262 2.1467 2.1360
2 3/4-3 2.75 3 2G 2.7500 2.7333 2.57 2.5427 2.3967 2.3558
2 3/4-3 2.75 3 3G 2.7500 2.7333 2.5734 2.567 2.3967 2.3776
2 3/4-3 2.75 3 4G 2.7500 2.7333 2.5767 2.5676 2.3967 2.3831
2 3/4-3 2.75 3 5G 2.7500 2.7333 2.5833 2.576 2.3967 2.3858
3-2 3 2 2G 3.0000 2.9750 2.736 2.7044 2.4800 2.4326
3-2 3 2 3G 3.0000 2.9750 2.7395 2.7248 2.4800 2.4579
3-2 3 2 4G 3.0000 2.9750 2.743 2.7325 2.4800 2.4642
3-2 3 2 5G 3.0000 2.9750 2.75 2.7416 2.4800 2.4674
3 1/2-2 3.5 2 2G 3.5000 3.4750 3.235 3.2026 2.9800 2.9314
3 1/2-2 3.5 2 3G 3.5000 3.4750 3.2388 3.2237 2.9800 2.9574
3 1/2-2 3.5 2 4G 3.5000 3.4750 3.2425 3.2317 2.9800 2.9638
3 1/2-2 3.5 2 5G 3.5000 3.4750 3.25 3.2413 2.9800 2.9669
4-2 4 2 2G 4.0000 3.9750 3.734 3.7008 3.4800 3.4302
4-2 4 2 3G 4.0000 3.9750 3.738 3.7225 3.4800 3.4568
4-2 4 2 4G 4.0000 3.9750 3.742 3.7309 3.4800 3.4634
4-2 4 2 5G 4.0000 3.9750 3.75 3.7411 3.4800 3.4666
4 1/2-2 4.5 2 2G 4.5000 4.4750 4.233 4.1991 3.9800 3.9291
4 1/2-2 4.5 2 3G 4.5000 4.4750 4.2373 4.2215 3.9800 3.9563
4 1/2-2 4.5 2 4G 4.5000 4.4750 4.2415 4.2302 3.9800 3.9631
4 1/2-2 4.5 2 5G 4.5000 4.4750 4.25 4.2409 3.9800 3.9663
5-2 5 2 2G 5.0000 4.9750 4.7319 4.6973 4.4800 4.4281
5-2 5 2 3G 5.0000 4.9750 4.7364 4.7202 4.4800 4.4557
5-2 5 2 4G 5.0000 4.9750 4.7409 4.7294 4.4800 4.4627
5-2 5 2 5G 5.0000 4.9750 4.75 4.7408 4.4800 4.4662

Full Threaded Rod Standard Length

LENGTH Diameter
1/2" 5/8" 3/4" 7/8" 1" 1.1/8" 1.1/4" 1.3/8" 1.1/2" 1.5/8" 1.3/4" 1.7/8" 2"
50 mm 0.044 0.069 0.100 0.136 0.178 0.225 0.296 0.356 0.422 0.493 0.570 0.681 0.771
55 mm 0.049 0.076 0.110 0.150 0.195 0.247 0.326 0.392 0.464 0.543 0.627 0.749 0.848
60 mm 0.053 0.083 0.120 0.163 0.213 0.270 0.355 0.428 0.506 0.592 0.684 0.817 0.925
65 mm 0.058 0.090 0.130 0.177 0.231 0.292 0.385 0.463 0.549 0.641 0.741 0.885 1.002
70 mm 0.062 0.097 0.140 0.190 0.249 0.315 0.415 0.499 0.591 0.690 0.798 0.953 1.079
75 mm 0.067 0.104 0.150 0.204 0.266 0.337 0.444 0.535 0.633 0.740 0.855 1.021 1.156
80 mm 0.071 0.111 0.160 0.218 0.284 0.360 0.474 0.570 0.675 0.789 0.912 1.089 1.233
85 mm 0.075 0.118 0.170 0.231 0.302 0.382 0.504 0.606 0.717 0.838 0.969 1.158 1.310
90 mm 0.080 0.125 0.180 0.245 0.320 0.404 0.533 0.641 0.760 0.888 1.026 1.226 1.387
95 mm 0.084 0.132 0.190 0.258 0.337 0.427 0.563 0.677 0.802 0.937 1.083 1.294 1.464
100 mm 0.089 0.139 0.200 0.272 0.355 0.449 0.592 0.713 0.844 0.986 1.140 1.362 1.541
110 mm 0.098 0.153 0.220 0.299 0.391 0.494 0.652 0.784 0.928 1.085 1.254 1.498 1.695
120 mm 0.107 0.166 0.240 0.326 0.426 0.539 0.711 0.855 1.013 1.184 1.388 1.634 1.850
125 mm 0.111 0.173 0.250 0.340 0.444 0.562 0.741 0.891 1.055 1.233 1.425 1.702 1.927
130 mm 0.115 0.180 0.260 0.353 0.462 0.584 0.770 0.926 1.097 1.282 1.482 1.770 2.004
140 mm 0.124 0.194 0.280 0.381 0.497 0.628 0.829 0.998 1.182 1.381 1.596 1.907 2.158
150 mm 0.133 0.208 0.300 0.408 0.533 0.674 0.889 1.069 1.266 1.480 1.710 2.043 2.312
160 mm 0.142 0.222 0.320 0.435 0.568 0.719 0.948 1.140 1.350 1.578 1.824 2.179 2.466
170 mm 0.151 0.236 0.340 0.462 0.604 0.764 1.007 1.212 1.435 1.677 1.938 2.315 2.620
175 mm 0.155 0.243 0.350 0.476 0.621 0.786 1.037 1.247 1.477 1.726 1.995 2.383 2.697
180 mm 0.160 0.250 0.360 0.489 0.639 0.809 1.066 1.283 1.519 1.776 2.052 2.451 2.774
190 mm 0.169 0.264 0.380 0.517 0.675 0.854 1.126 1.354 1.604 1.874 2.166 2.588 2.928
200 mm 0.178 0.277 0.399 0.544 0.710 0.899 1.185 1.425 1.688 1.973 2.280 2.724 3.083
210 mm 0.186 0.291 0.419 0.571 0.746 0.944 1.244 1.497 1.772 2.071 2.394 2.860 3.237
220 mm 0.195 0.305 0.439 0.596 0.781 0.989 1.303 1.568 1.857 2.170 2.508 2.996 3.391
225 mm 0.200 0.312 0.449 0.612 0.799 1.011 1.333 1.604 1.899 2.219 2.565 3.064 3.468
230 mm 0.204 0.319 0.459 0.625 0.817 1.034 1.363 1.639 1.941 2.269 2.622 3.132 3.545
240 mm 0.213 0.333 0.479 0.653 0.852 1.079 1.422 1.710 2.026 2.367 2.736 3.268 3.699
250 mm 0.222 0.347 0.499 0.680 0.888 1.124 1.481 1.782 2.110 2.466 2.850 3.405 3.853
260 mm 0.231 0.361 0.519 0.707 0.923 1.169 1.540 1.853 2.194 2.565 2.964 3.541 4.007
270 mm 0.240 0.375 0.539 0.734 0.959 1.213 1.600 1.924 2.279 2.663 3.078 3.677 4.161
275 mm 0.244 0.382 0.549 0.748 0.977 1.236 1.629 1.960 2.321 2.713 3.135 3.745 4.238
280 mm 0.249 0.388 0.559 0.761 0.994 1.258 1.659 1.995 2.363 2.762 3.192 3.813 4.316
290 mm 0.257 0.402 0.579 0.788 1.030 1.303 1.718 2.067 2.448 2.861 3.306 3.949 4.470
300 mm 0.266 0.416 0.599 0.816 1.065 1.348 1.777 2.138 2.532 2.959 3.420 4.086 4.624

Threaded Rod Dimensions

Metric Sizes (mm) Weight per Metre Size (UNC) Weight per Mtr
M2 0.0187
M2.5 0.030
M3 0.044
M3.5 0.060
M4 0.078
M5 0.124
M6 0.177 ¼” 0.194
M8 0.319 5/16” 0.323
M10 0.500 3/8” 0.469
    7/16” 0.650
M12 0.725 ½” 0.896
M14 0.970 9/16” 1.096
M16 1.330 5/8” 1.342
M18 1.650
M20 2.080 ¾” 2.021
M22 2.540 7/8” 2.756
M24 3.000 1” 3.638
M27 3.850 1 1/8” 4.545
M30 4.750 1 ¼” 5.718
M33 5.900 1 3/8” 6.842
M36 6.900 1 ½” 8.281
M39 8.200 1 5/8” 9.726
M42 9.400 1 ¾” 11.231
M45 11.000 1 7/8” 13.038
M48 12.400 2 14.741

Left Hand Threaded Rod Metric

Accordance to DIN 976-1

Left Hand Threaded Rod Diameter (d) Metric Size Left Hand Threaded Rod Pitch Left Hand Threaded Rod L
M3 0.50 1000
M4 0.70 1000
M5 0.80 1000
M6 1.00 1000
M7 1.00 1000
M8 1.25 1000
M10 1.50 1000
M12 1.75 1000
M14 2.00 1000
M16 2.00 1000
M18 2.50 1000
M20 2.50 1000
M22 2.50 1000
M24 3.00 1000

Stainless Steel Threaded Rod Weight

Stainless Steel Threaded Rod Size in Inch SS Threaded Rod Wt Per 100 SS Threaded Rod Pieces Per Tube
1/4-20" 12.3 50
5/16-18" 20.1 35
3/8-16" 29.6 25
7/16-14" 40.6 17
1/2-13" 53.9 12
9/16-12" 67.6 10
5/8-11" 85.2 8
3/4-10" 124.9 5
7/8-9" 172.4 4
1-8" 225.6 2
1 1/8-7" 284.2 1
1 1/8-8" 290.9 1
1 1/4-7" 357.6 1
1 1/4-8" 365.8 1
1 1/2-6" 517.8 1
1 1/2-8" 539.7 1
1 3/4-5" 703.0 1
2"-4 1/2" 922.0 1

Stainless Steel Double Ended Threaded Rod Size

3/8"-16 x 1-1/2" 3/8"-16 x 1-1/4" 3/4"-10 x 3"
1/2"-13 x 3" 1/2"-13 x 2-1/2" 5/16"-18 x 1"
3/8"-16 x 1" 5/8"-11 x 3" 3/8"-16 x 3/4"
1/2"-13 x 1-1/2" 1/2"-13 x 2" 5/16"-18 x 1-1/4"
1/4"-20 x 1" 3/8"-16 x 2" 5/8"-11 x 4"
5/8"-11 x 2-1/2" 3/8"-16 x 2-1/2" 3/8"-16 x 3"
1/2"-13 x 1-1/4" 3/4"-10 x 2-1/2"

Double Ended Threaded Rod

Double Ended Threaded Rod

Thread dM4M5M6(M7)M8M10M12(M14)M16(M18)M20(M22)M24
----M8x1M10x1,25M12x1,25(M14x1,5)M16x1,5(M18x1,5)M20x1,5(M22x1,5)M24x2
------M12x1,5------
b156,57,59101215182022252830
b2 l<125mm14161820222630343842465054
b2 125>l<200mm20222426283236404448525660
b2 l>200mm-----4549535761656973
x11,7522,52,53,23,84,3556,36,36,37,5
x20,911,251,251,61,92,22,52,53,23,23,23,8
l js 15Weight (7,85/dm3) per 1000 units, in
kg
12
14
16
18
202,03
222,233,65
252,524,115,85
282,824,576,529,49
303,024,886,9610,113,1
353,515,658,0711,615,124,2
404,016,429,1813,11727,241
457,1910,214,61930,345,464
507,9611,416,12133,349,97094,9
5512,517,722,936,454,376,1103130
6013,619,224,939,558,882,1111140180
6520,726,942,663,288,2119150192242
7022,228,945,767,694,2126160205257305
7530,848,872,1100134170217272323
8032,851,876,5106142180229287341
8554,981112150190241302358
905885,4118158199254317376
9561,189,8124166210266332394
10064,294,3130174220279346412
110103143190240303376447
120112155205260328406483
130167221280353436518
140179237300377466554
150253320402496589
160269340427525625
170360451555660
180380476585696
190501615731
200525645767

Thread d(M27)M30(M33)M36(M39)M42(M45)M48(M52)
(M27x2)M30x2(M33x2)M36x3(M39x3)M42x3(M45x3)M48x3(M52x3)
b1353842455052586065
b2 l<125mm60667278849096102110
b2 125>l<200mm667278849096102108116
b2 l>200mm79859197103109115121129
x17,5991010111112,512,5
x23,84,54,5555,55,56,36,3
l js 15Weight (7,85/dm3) per 1000 units, in
kg
50
55
60
70
75430
80452
85475591
90497619776
95520646810
1005426748431011
11058773091010911326
1206327859771171142016471963
130677841104512511514175620882364
1407228961112133116071865221325063027
1507679521179141117011973233826483794
16081210071246149017952082246227903360
17085710621313157018892191258729323527
18090211181380165019822300271230743694
19094711731447173020762408283732163861
20099212291515181021702517296233584027
220108213401649197023582735321136424361
240117214501784213025452952346139274694
260126215621918228927333170371142115028
280135216722052244929203387396144955361
30017842186260931083605421047795694
3202321276932953822446050636028
3402455292934834040471053476361
360308836704257495956316695
38038584475520959157028
40040454692545961997362

d M 5 M 6 M 8 M 10 M 12 M 16 M 20 M 24
b1 10 12 16 20 24 32 40 48
b2 16 18 22 26 30 38 46 54

UNF Threaded Rod

UNF Threaded Rod Size Range .250 Inch up to and including 15.00" Diameter
Threaded Bar Length
  • 3 foot
  • 6 foot
  • 12 foot
SS Threaded Rod Ready sizes Custom lengths up to 50 Ft. Full Thread, Single End / Double End
Grades & Material
Carbon Steel
Alloy Steel
Alloy Heat Treated Steel
Stainless Steel		 Aluminum
Brass
Titanium
Exotic Metals
Other Thread Types
UNC
UNF
UNEF		 UNJ
8 and 12 Pitch Series
Class Fit
1A
2A		 3A
Modified
Direction of Threaded Rod Threads Right Hand
Left Hand
Thread Start Single
Multiple

Stainless Steel Threaded Rod Material and Grades

  • A4 Threaded Rod
  • 310 Stainless Steel Threaded Rod
  • ASTM A193 B8T Threaded Rod (321)
  • 304 Stainless Steel Threaded Rod
  • 316 Stainless Steel Threaded Rod
  • 304H Stainless Steel Threaded Rod
  • 18-8 Stainless Steel Threaded Rod
  • 317L Stainless Steel Threaded Rod
  • 316L Stainless Steel Threaded Rod
  • 347 Stainless Steel Threaded Rod
  • 17-4 PH Threaded Rod
  • ASTM A193 Grade B7m Threaded Rod
  • 18-8 Stainless Steel Threaded Rod
  • A2-70 Threaded Rod
  • A4-70 Threaded Rod
  • ASTM A193 B6 Threaded Rod (410)
  • 304L Stainless Steel Threaded Rod
  • ASTM A193 Grade B8 Threaded Rod
  • 904L Stainless Steel Threaded Rod
  • A4-80 Threaded Rod
  • 410 Stainless Steel Threaded Rod
  • A2 Threaded Rod
  • 4.8 Threaded Rod
  • ASTM A193 Grade B8M Threaded Rod
  • ASTM A193 B8C Threaded Rod (347)
  • 316 Stainless Threaded Rod
  • 8.8 Threaded Rod
  • 317 Stainless Steel Threaded Rod
  • 321 Stainless Steel Threaded Rod
  • Duplex 2205 Threaded Rod

Threaded Rod Application

  • Nuclear Energy Sector
  • Oil & Gas Industries
  • Petroleum Industries
  • Defence Industry
  • Chemical Industry
  • Aerospace Industry



Stainless Steel Threaded Rod Testing Tool & Equipment

  • Micrometer
  • Smooth plug gauge
  • Thread gauge
  • Coordinate Measuring Machine
  • Roughness tester
  • Image measuring instrument
  • Routine inspection of calipers
Types of fasteners
Flanges

Fittings

Pipes

Weight Calculator

© 2020 All Rights Reserved by Rolex Metal Distributors

We are On:
