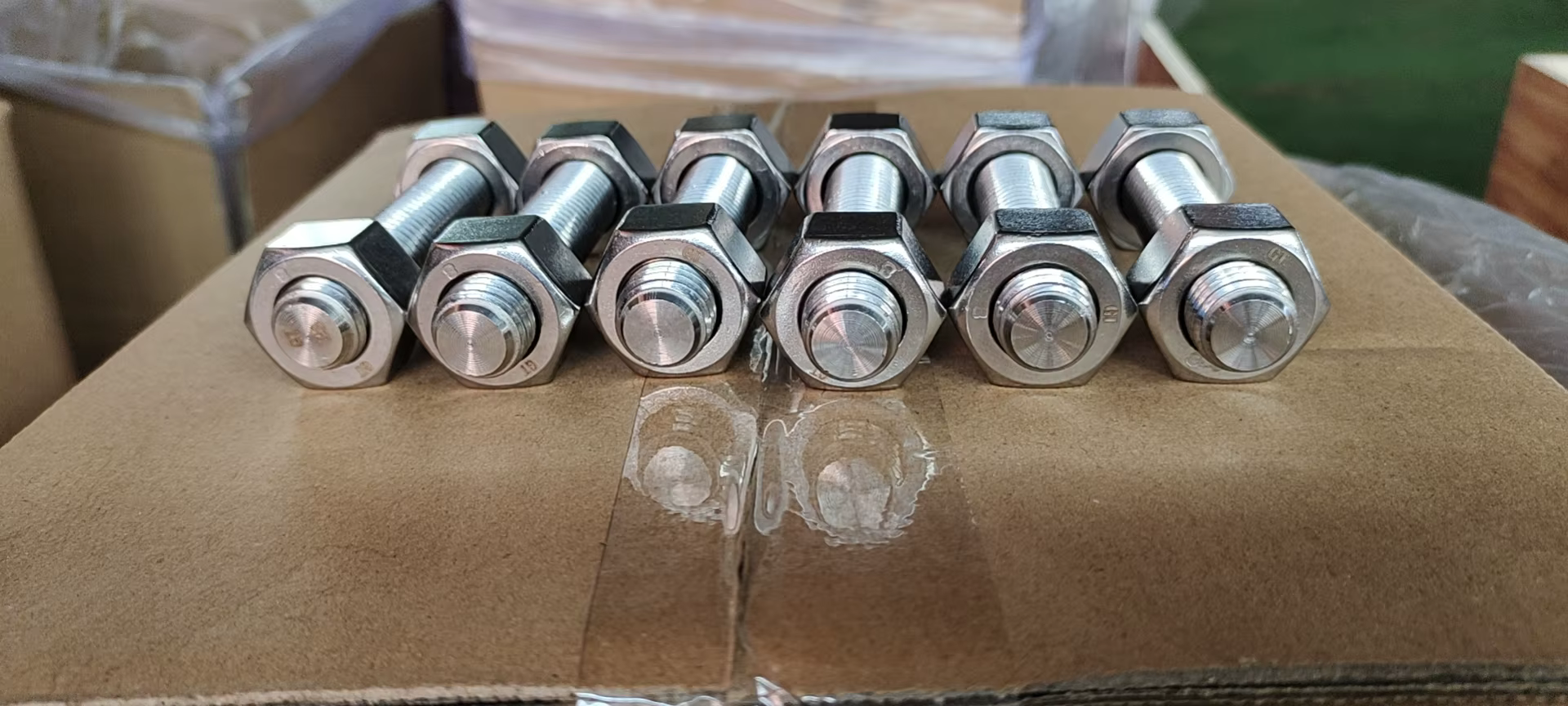

ASTM A193 B8M Round and Hex Head Machine Bolts manufacturer and exporter in India

Machine Screw is one of the most widely used products among dozens of standard fastener. It can be either coarse-threaded or fine-threaded, and are usually available with a wide range of head types. The most common applications that machine screws aim to be used for involve metal parts and panels needing to be fixed securely together. Stainless Steel Machine Screw has a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip. It is used to fasten machine components, appliances, etc. Machine Head Screw are of different types such as slotted or flat head machine screw, Philips head machine screws, torx head and hex head machine screws, pan head machine screw, fillister or cheese head machine screws. Round Head Machine Screw is similar to 'flat' heads, but with no driving recess. It is used for shorter screw lengths to provide a longer thread grip and shallower countersinking. Hex Head Machine Screw allow for more torque to be applied to the screw with a socket wrench. It is most often used with a nut as a means of tightening unless they have a pre-threaded hole with the exact thread pitch. It is most commonly offered in smaller sizes.

Buy directly from pan head screw manufacturers in India for high quality and thread selection, contact Rolex Metal Distributors for competitive price and quality, our commitment to improve our operational systems in alignment to our customers needs is our mission.

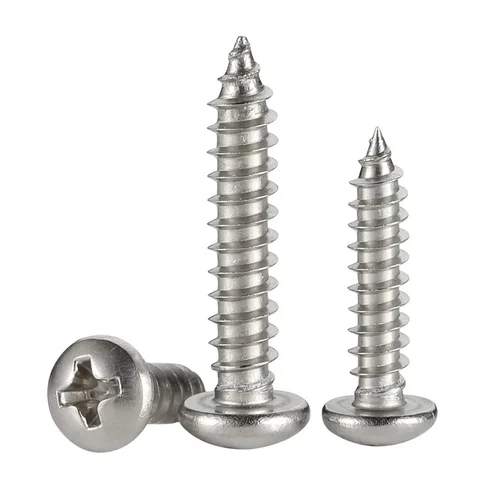

Stainless Steel Machine Screw

316 Stainless Steel Machine Screws

Hex Head Machine Screw

Only Stainless Steel Machine Head Screw manufacturers in India provides all materials & finishes, view Grade A2/ A4-70 Machine screw head types, size chart and dimensions

Stainless Steel Machine Screw Specifications
Stainless Steel Machine Screw Price List
Types of Machine Screw
Stainless Steel Machine Screw Sizes
Machine Screw threads per inch
Coarse & Fine Thread Machine Screws
Machine Screw Diameters
Inch & Metric Machine Screws Sizes
Machine Screw Din Standard
Stainless Steel Machine Screw Torque Chart
Stainless Steel Machine Screw Material and Grades
Machine Screw Application
Stainless Steel Machine Screw Testing Tool & Equipment

Stainless Steel Machine Screw Specifications

Looking for ASTM A193 Grade B8 Small or Extra Long Torx Machine Screws in India? Manufacturer and supplier of M4 M5 M6 M8 High Tensile Stainless Steel Assorted Machine Screws in India

Machine Screw (DIN 7985, DIN 84, DIN 963 )
1.Size Range: #4-5/16" (M3-M8)
2.Length Range: 1/4"-6" (6.35mm-150mm)
3.Head type :

Ind. Hex Washer Head	Round Washer Head	Pan Head
Hex Socket Head	Cheese Head	Flat Head
Truss Washer Head	Truss Head	Oval Head

4. Thread Type: UNC, UNF, CA (SOFT), TRI-POINT
5. Standard: IFI, ANSI, ASTM, ISO, DIN, JIS, BS, AS & Special Request Per Customer’s Sample Or Drawing

DIN / JIS Standard	DIN 7985a/ JIS B1111
Stainless Steel Machine Screw Size	Cold Forming process: M2-M24 Hot Forging process: M24-M100, 1-1/2” Dia, up to 1100mm lg CNC Machining for M100 / 4” Dia, up to 1500mm lg Manufacturing M2, M3, M3.5, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M45, M48 to M160 and Custom Metric Stainless Steel Machine Screw
Machine Screw Size Metric	Dia: M10 - M110 Length: 12 - 1200MM
Machine Screw Size Inch	Dia: 1/2" - 4.0" Length: 1/2" - 52"
SS Machine Screw Standard	IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN, and all International Standards ANSI B 18.2.4 2M ANSI B 28.2.4 1M ANSI - American National Standards Institute American SAE British BS American ASME Indian IS German DIN International ISO Spanish CSN Italian UNI Polish PN European EU GB/T5783, GB/T5782, GB5783
Dimensions of Machine Screw	ASME B18.6.3 **Exception: Machine Screw 6 inches and shorter are fully threaded.
SS Machine Screw British standards	BS 6105 a2-70 Machine Screw BS 6105 a4-70 Machine Screw BS 6105 a4-80 Machine Screw BS 6105 a2-50 Machine Screw
Length	3 mm to 200 mm
Stainless Steel Machine Screw US Threads	METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
Manufacturing process	Wire Drawing, Insert tapping, Cold Heading, Heat Treatment, Inspection, Surface Plating, Packing
UTS - Unified Thread Standard	UNC, UNF, NPT, UNS, UNEF, NPTF
Metric Machine Screw Tolerances	+/-0.01mm to +/-0.05mm
Head drive	Phillips/Slot, Phillips, Slotted, Six-Lobe, etc
Machine Screw Surface Finish	Zinc (yellow, blue, white, black), black oxide, Dacroment, anodizing, plated zinc-nickel, nickel plated, Geometry, Stainless steel: Passivated, Self-Colour, Hot Dip Galvanised (HDG), Sherardized, Bright Zinc Plated (BZP), Mechanically Applied coating and some special one like DACROMET
Finish/ Passivation of Stainless Steel Machine Screw	Accordance to ASTM A380/A380M
Material Origin	Stainless Steel Machine Screw are Western European. Eastern origin possible on request.
Stainless Steel Machine Screw Surface Coating	Ptfe Coated Machine Screw Hot Dipped Galvanized Phosphate Teflon Xylon Zinc Phosphate Manganese Phosphate Zinc Electro Plating (Hexavalent or Trivalent Chrome) ZAC (Zinc Alluminium Flake Coating) Cadmium All Machine Screw surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE.
Machine Screw Surface treatment	Polish Passivation Black oxide coating Anodizing Sand blasting Rust preventive oil Heat-disposing Hot dip galvanized Electroplating color (blue, black zinc, white, Ni, Cr, copper, tin, silver)
Other Machine Screw Manufacturers	Omni, APL, Unbrako, Kundan, Deepak Fasteners, Sundaram Precision, Infasco, Caparo, EBY Fastener, SPAX® Screws, GKW Etc.
Why Rolex Metal Distributors?	Based in India, established in Year 2008 Wide International network : Western Europe, Eastern Europe, Middle East, Southeast Asia, North America, and South America Best Price in India compared to China Highly professional and technical team Always final Inspection before shipment Pre-production Machine Screw sample before mass production High precision threads
Stainless Steel Machine Screw marking and Packing	Machine Screw Marking as per product specification Wooden Pallet, Canton, Carton / Small Box or as required Carton size : 36* 24 16 CM & 36 24 12 CM or as required Pallet size: Standard Euro Pallet 110 80 *90 CM
MOQ	5 pieces
Preferred Machine Screw Drawing Formats	JPEG, PDF, CAD, STP, IGS
Test Certificates provided by Stainless Steel Machine Screw manufacturers	Manufacturer Test Certificate (MTC) as per EN 10204 / 3.1, Machine Screw Tensile testing to ISO 898-1 Hardness testing to ISO 6508-1 Suitability for preloading to EN 14399-2 Tri-Roll Thread Comparators Machine Screw Charpy Impact testing in accordance with ISO 148-1 Suitability test for calibrated preload to EN 14399-10 Nut proof load testing to ISO 898-2 Calibrated gauges and tools
Free Samples	Yes
Delivery time	Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms	T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping
Common Machine Screw material grades	Stainless Steel Machine Screw: 304, 316, 316L, 2205, 410, 431, 416, 440C, 18-8, 4.8, 8.8, A2, A4, A2-50, A2-70, A2-80, A4-50, A4-70, A4-80, A193 B8M, A193 B6, A193 B7m, A193 B8 Machine Screw Carbon Steel Machine Screw : A193 Grade B7, A320 L7 Alloy steel Machine Screw: SCM435, C10B21, C10B33, ASTM A193 Grade B16 High Tensile Machine Screw: 10.9 Grade, 12.9 Grade, 8.8 Grade Machine Screw Brass Machine Screw: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40) Bronze Machine Screw: C51000, C52100, C54400 etc Aluminum Machine Screw: Al6061, Al6063 etc Titanium Machine Screw: TAD, TA1-TA8, TB2, TC1-TC10
Port of Dispatch	Mumbai or Kalamboli ports in Maharashtra state of India
Machine Screw Application and Uses	Industrial, Wind tower, Railway, Nuclear power, Construction, Electronic, and Automotive industry
ISO - International Organization for Standardization	ISO 4014 Hex Bolt ISO 4017 Hex Head Screw ISO 4032 Nut ISO 4162 Flange Bolts ISO 4161 Flange Nut

Stainless Steel Machine Screw Price List

Manufacturing Flat/ Truss/ Pan Head Machine Screw in Metric sizes and all material such as Stainless Steel 18-8 / 410/ 431/ 416/ 440C/ 304L/ 316L/ 303 as per ASTM F593 specification

Products	FOB Price US $
Machine screw, socket , cap screw TORX	US $0.015-0.82 / Piece (FOB Price)
Gr5 titanium machine screw for industrial	US $5-100 / Piece (FOB Price)
Countersunk Head Phil Machine Screw	US $0.1-10 / Piece (FOB Price)
Pan head machine screw	US $0.001-0.05 / Piece (FOB Price)
Hexagonal machine screws: 5mm, 6mm(with ISO card)	US $0.05-0.3 / Piece (FOB Price)
Black zinc stainless steel machine screw	US $0.01-0.45 / Piece (FOB Price)
Pan head machine screw /oan head screw	US $0.01-0.2 / Piece (FOB Price)
DIN 966 Stainless Steel Phillips Oval Head Machine Screw	US $0.003-0.09 / Piece (FOB Price)
304/316/316L Stainless Steel Machine Screw	US $0.06-$0.09/ Piece
316 stainless steel machine screw m3 m3.5 m4 m6 m7	US $0.03-$0.42/ Piece
Din965 M1.0 M1.2 M1.4 M1.6 phillips countersunk head micro machine screws	US $0.001-$0.01/ Piece
m3-m16 Stainless Steel full threaded Machine Screws	US $0.001-$0.01/ Piece
M1 M2 M3 M4 M5 M6 M7 M8 Torx Stainless Steel Pan Head Machine Torx Screws	US $0.001-$0.0056/ Piece

Call us or send us an email to marketing@rolexmetals.com for more details.

Types of Machine Screw

Buy Marine grade Stainless Steel Phillips Pan Head Machine Screw as per DIN 7985a, best price of Stainless Steel 304 M4 X 50mm Screw in India

Assorted Machine Screws

M6 Machine Head Screw

Metric Round Head Machine Screw

4mm Pan Head Machine Screw

Extra Long Truss Head Machine Screw

M4 X 50mm Flat Head Machine Screws

Stainless Steel Machine Screw Sizes

Coarse	Fine	Extra Fine
M1.4-0.3
M2-0.4
M2.5-0.45
M3-0.5
M3.5-0.6
M4-0.7
M5-0.8
M6-1.0
M7-1.0
M8-1.25	M8-1.0
M10-1.5	M10-1.25	M10-1.0
M12-1.75	M12-1.5	M12-1.25
M14-2.0	M14-1.5
M16-2.0	M16-1.5
M18-2.5	M18-1.5
M20-2.5	M20-1.5
M22-2.5
M24-3.0	M24-2.0
M30-3.5
M36-4.0

Contact Rolex Metal Distributors for more sizes

Machine Screw threads per inch

Pitch (mm)	Pitch (inches)	Threads per Inch
0.2	0.0079	127.00
0.25	0.0098	101.60
0.3	0.0118	84.67
0.35	0.0138	72.57
0.4	0.0157	63.50
0.45	0.0177	56.44
0.5	0.0197	50.80
0.6	0.0236	42.33
0.7	0.0276	36.29
0.75	0.0295	33.87
0.8	0.0315	31.75
1.0	0.0394	25.40
1.25	0.0492	20.32
1.5	0.0591	16.93
1.75	0.0689	14.51
2.0	0.0787	12.70
2.5	0.0984	10.16
3.0	0.1181	8.47
3.5	0.1378	7.26
4.0	0.1575	6.35
4.5	0.1772	5.64
5.0	0.1969	5.08
5.5	0.2165	4.62
6.0	0.2362	4.23

Coarse & Fine Thread Machine Screws

Size	Series	Thread	Pitch (inches)	Threads per Inch
M14-2.0	Metric	Coarse	0.079	12.7
9/16-12	Inch	Coarse	0.083	12
M14-1.5	Metric	Fine	0.059	16.9
9/16-18	Inch	Fine	0.056	18
M3.5-0.6	Metric	Coarse	0.024	42.3
6-32	Inch	Coarse	0.031	32
M3.5-0.35	Metric	Fine	0.014	72.6
6-40	Inch	Fine	0.025	40

Machine Screw Diameters

Size	Nominal Thread Diameter
Size	Decimal	Nearest Fractional
#0	0.060"	1/16"
#1	0.073"	5/64"
#2	0.086"	3/32"
#3	0.099"	7/64"
#4	0.112"	7/64"
#5	0.125"	1/8"
#6	0.138"	9/64"
#8	0.164"	5/32"
#10	0.190"	3/16"
#12	0.216"	7/32"

* Machine Screw thread diameter is measured on the outside of the threads accordance to ASME B18.6.3

Inch & Metric Machine Screws Sizes

Metric Machine Screws Sizes	Inch Machine Screw Sizes
M1.4-0.3	0-80 (Larger)
M2-0.4	1-64 (Smaller)
M2.5-0.45	3-56 (Larger)
M3-0.5	4-48 (Smaller)
M3.5-0.6	6-40 (Same)
M4-0.7	8-36 (Larger)
M5-0.8	10-32 (Smaller)
M6-1.0	1/4-28 (Larger)
M7-1.0	1/4-28 (Smaller)
M8-1.25	5/16-18 (Smaller)
M10-1.5	3/8-16 (Smaller)
M12-1.75	1/2-13 (Larger)
M14-2.0	9/16-12 (Larger)
M16-2.0	5/8-11 (Smaller)
M18-2.5	3/4-10 (Larger)
M20-2.5	3/4-10 (Smaller)
M22-2.5	7/8-9 (Larger)
M24-3.0	1-8 (Larger)
M30-3.5	1 1/8-7 (Smaller)
M36-4.0	1 3/8-6 (Smaller)

Machine Screw Din Standard

No.	Description
DIN 84	Slotted Cheese Head Machine Screw
DIN 85	Slotted Pan Head Machine Screw
DIN 439B	Machine Screw Hex Nut, Finished Hex Jam Nut
DIN 963	Slotted Flat Head Machine Screw
DIN 964	Slotted Oval Head Machine Screw
DIN 965	Phillips Flat Head Machine Screw
DIN 966	Phillips Oval Head Machine Screw
DIN 7985	Phillips Pan Head Machine Screw

Stainless Steel Machine Screw Torque Chart

Machine Screw Size	18-8 Stainless Steel Machine Screw Torque in-lbs	316 Stainless Steel Machine Screw Torque in-lbs	Silicon Bronze Machine Screw in-lbs	Monel Machine Screw in-lbs	Brass Machine Screw in-lbs	2024-T4 Aluminum Machine Screw in-lbs
4-40	5.2	5.5	4.8	5.3	4.3	2.9
4-48	6.6	6.9	6.1	6.7	5.4	3.6
5-40	7.7	8.1	7.1	7.8	6.3	4.2
5-44	9.4	9.8	8.7	9.6	7.7	5.1
6-32	9.6	10.1	8.9	9.8	7.9	5.3
6-40	12.1	12.7	11.2	12.3	9.9	6.6
8-32	19.8	20.7	18.4	20.2	16.2	10.8
8-36	22	23	20.4	22.4	18.0	12.0
10-24	22.8	23.8	21.2	25.9	18.6	13.8
10-32	31.7	33.1	29.3	34.9	25.9	19.2
1/4-20	75.2	78.8	68.8	85.3	61.5	45.6
1/4-28	94	99	87	106	77	57
5/16-18	132	138	123	149	107	80
5/16-24	142	147	131	160	116	86
3/8-16	236	247	219	266	192	143
3/8-24	259	271	240	294	212	157
7/16-14	376	393	349	427	317	228
7/16-20	400	418	371	451	327	242
Machine Screw Bolt Size	18-8 Stainless Steel Machine Screw Torque ft-lbs	316 Stainless Steel Machine Screw Torque ft-lbs	Silicon Bronze Machine Screw ft-lbs	Monel Machine Screw ft-lbs	Brass Machine Screw ft-lbs	2024-T4 Aluminum Machine Screw ft-lbs
1/2-13	43	45	40	48.7	35.2	26
1/2-20	45	47	42	51	37	27
9/16-12	56	59	53	65	47	34
9/16-18	62	65	58	71	51	38
5/8-11	92	96	86	111	76	60
5/8-18	103	108	96	123	85	67
3/4-10	127	131	118	153	104	82
3/4-16	124	129	115	149	102	80
7/8-9	194	202	178	231	159	124
7/8-14	193	201	177	230	158	124
1 - 8	286	299	265	344	235	184
1 - 14	259	270	240	311	212	166

Stainless Steel Machine Screw Material and Grades

A4 Machine Screw
310 Stainless Steel Machine Screw
ASTM A193 B8T Machine Screw (321)
304 Stainless Steel Machine Screw
316 Stainless Steel Machine Screw
304H Stainless Steel Machine Screw
18-8 Stainless Steel Machine Screw
317L Stainless Steel Machine Screw
316L Stainless Steel Machine Screw
347 Stainless Steel Machine Screw
17-4 PH Machine Screw
ASTM A193 Grade B7m Machine Screw
18-8 Stainless Steel Machine Screw
A2-70 Machine Screw
A4-70 Machine Screw
Assorted Machine Screws
Machine Head Screw
Round Head Machine Screw
Hex Head Machine Screw
DIN 7985a Phillips Pan Head Machine Screw
Pan Head Machine Screw
Truss Head Machine Screw
Flat Head Machine Screws
Torx Machine Screws

ASTM A193 B6 Machine Screw (410)
304L Stainless Steel Machine Screw
ASTM A193 Grade B8 Machine Screw
904L Stainless Steel Machine Screw
A4-80 Machine Screw
410 Stainless Steel Machine Screw
A2 Machine Screw
4.8 Machine Screw
ASTM A193 Grade B8M Machine Screw
ASTM A193 B8C Machine Screw (347)
316 Stainless Machine Screw
8.8 Machine Screw
317 Stainless Steel Machine Screw
321 Stainless Steel Machine Screw
Duplex 2205 Machine Screw
M6 Machine Screw
M4 Machine Screw
Metric Machine Screws
Small Machine Screws
4mm Machine Screw
Hex Machine Screw
Extra Long Machine Screws
M4 X 50mm Screw

Machine Screw Application

Nuclear Energy Sector
Oil & Gas Industries
Petroleum Industries
Defence Industry
Chemical Industry
Aerospace Industry

Stainless Steel Machine Screw Testing Tool & Equipment

Micrometer
Smooth plug gauge
Thread gauge
Coordinate Measuring Machine
Roughness tester
Image measuring instrument
Routine inspection of calipers
