SA 193 B7m Hex Bolt, Alloy Steel A193 B7m Stud and Threaded Rod manufacturer in India

What are ASTM A193 grade b7m bolts?

ASTM A193 b7m bolts belong to a specification that covers bolts of high tensile strength and hardness. The minimum yield strength required is 75ksi and the minimum tensile strength required is 100ksi. The hardness should be 99HRB. Rolex Metal Distributors is a leading manufacturer and supplier of the different types of ASTM A193 gr b7m bolts in different dimensions and standards. The specification covers the requirements of recommended nuts, heat treatment, hardness, mechanical properties and chemical composition of these bolts. The ASTM A193 gr b7m material has carbon, manganese, phosphorus, sulfur, silicon, chromium and molybdenum. It is a carbon steel with chromium and molybdenum content. So it has good strength, ductility, corrosion resistance and hardness as well. So the B7m bolts and nuts are used in extreme conditions without cracking under pressure or stress. They can perform up to the tensile strength of the material grades. The material grades used can be 304 and 316.

A193 b7m bolts coatings

ASTM A193 b7m bolts, studs, nuts are available with PTFE Coating, Hot Dip Galvanised, Xylan Coating, and Cadmium Coating.

ASTM A193 b7m stud bolt vs threaded rod?

The threaded rods of the same material grade are also used in applications. The bolts are better to be tightened in open space where the application of nuts is possible. The threaded rods are used when there is no space for nuts and two components have to connect closely. The application of the Stud Bolt astm a193 b7m can be seen in oil and gas, petroleum, petrochemical, marine, engineering, automobile and in transportation applications due to the toughness and hardness of the material. The material is also wear resistant to certain extent.

B7m hex bolts thread types?

There are different classes as class1 and class 2 with different thread types as well. The coarse thread and the fine thread types of the B7m fasteners are available as well. The recommended nuts for the B7M bolts are the ASTM A194 grade 2HM and the recommended washers are the F436. Please feel free to contact us for more information and pricing of the different types of the B7M bolts.

ASME SA 193 Grade B7m Fasteners

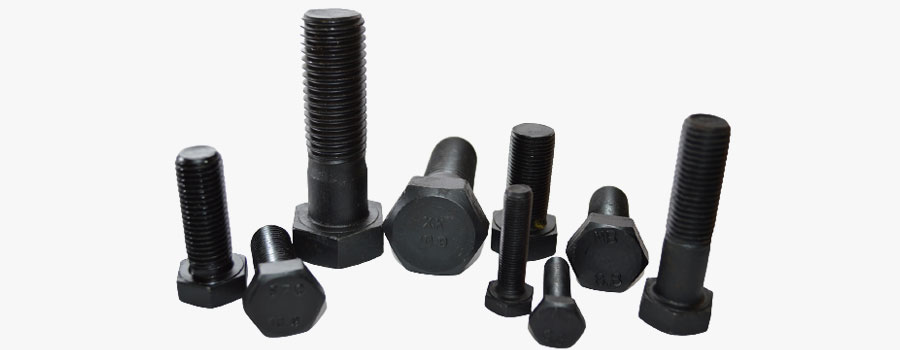

ASTM A193 Grade B7m Bolts

SA 193 Grade B7m Threaded Rod and Studs

ASTM A193 gr B7m Hex Bolt

A193 Gr B7m Stud Bolt

ASTM A193 B7m Nuts

Exporter of ASTM A193 Gr B7m Stud Bolt material, check B7m Bolts price list ex Mumbai

ASTM A193 Grade B7m Bolts Price List India
ASME SA 193 Grade B7m Fasteners Specifications
Types of ASTM A193 Grade B7m Bolts
SA 193 Grade B7m Nuts Types
Types of A193 Gr B7m Threaded Rod and Studs
A193 Grade B7m Hex Bolt Dimensions Metric
SA 193 B7m Stud Bolt Metric Dimensions
A193 B7m Hex Nut Dimensions Metric
ASME SA 193 B7m Washer Dimensions
ASTM A193 Grade B7m Bolts Heat Treatment
ASTM A193 B7m Alloy Steel Fasteners Chemical Composition
A193 B7m Alloy Steel Bolts Mechanical Properties
ASME SA 193 Gr B7m Nut Bolt Equivalent Grade

ASTM A193 Grade B7m Bolts Price List India

Compare our price list of A193 B7m Socket Head Cap Screws, Anchor Bolts, Washers and Eye Bolts before buying SA 193 B7m Threaded Fasteners from India

Material	Price in India
A193 B7M Hex Bolt, Fully Threaded, 1/2 X 45MM, PTFE COATED	INR 257/Pcs
A193 B7M Stud Bolt with Hex Nut, 1/2 X 90MM, XYLAN 1070 GREEN COATED	INR 115/Pcs
SA 193 B7M Stud Bolt with Hex Nut, 7/8 X 130MM, XYLAN 1070 GREEN COATED	INR 425/Pcs
A193 Gr. B7M Stud Bolt with Hex Nut, 1/2 X 80MM, PTFE COATED	INR 110/Pcs
SA 193 B7M Hex Bolt, 5/8 X 50MM, Fully Threaded with Nuts, PTFE COATED	INR 360/Pcs
ASTM A193 Gr B7M Stud Bolt with Hex Nut, M33 X 170MM, PTFE COATED	INR 782/Pcs
ASTM A193 B7m Stud Bolt with Hex Nut, 1/2 X 70MM, PTFE COATED Green, AS PER MESC 81/007	INR 370/Pcs

For more call us or send us an email to marketing@rolexmetals.com.

ASME SA 193 Grade B7m Fasteners Specifications

ASME SA 193 Grade B7m Bolts	ANSI B18.2.1, DIN 931/ 933
ASTM A193 Grade B7m Hex Bolts Size Metric	Dia: M10 - M110 Length: 12 - 1200MM
SA 193 Grade B7m Hex Bolts Size Inch	Dia: 1/2" - 4.0" Length: 1/2" - 52"
ASTM A193 gr B7m Eye Bolts Metric Size	Dia: M10 - M48
A193 Gr B7m Stud Bolt Metric Size	Dia: M10 - M110 Length: 12 mm - 6000 mm
ASTM A193 B7m Stud Bolt Inch	Dia: 1/2" - 4.1/2" Length: 1/2" - 236"
A193 Grade B7m Hex Nut (DIA)	Metric: M6 - M110 Inch: 1/4" - 4.5"
SA 193 B7m Plain Washer (DIA)	Metric: M6 - M110 Inch: 1/2" - 4.1/2"
ASTM A193 Grade B7m Bolts International Standard	IS, ANSI, ASTM DIN, ISO, JIS, GB, ASME, BS, UNI
A193 B7m Bolts Standard Sizes	M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160
ASME SA 193 B7m Fasteners Threads	BSF, UNF METRIC, UNC, UNEF, BSW or as required
ASME/ ANSI - American Standard ASTM A193 Grade B7m Bolts	ANSI B 28.2.4 1M ANSI B 18.2.4 2M ASME B18.5 ASME B18.2.2
DIN German Standard ASTM A193 Grade B7m Bolts	DIN 933, DIN 931, DIN 970, DIN 934
ISO Standard ASTM A193 B7m Alloy Steel Bolts	ISO 4033, : ISO 4032, JIS standards
A193 B7m Alloy Steel Bolts / Screws Head Drive	Phillips, Slotted, Phillips/Slot, Six-Lobe
MTC (Manufacturer Test Certificate)	EN 10204 / 3.1
ASME SA 193 Gr B7m Nut Bolt Finishing	Zinc white, (yellow, black, blue), black oxide, Dacroment, Geometry, plated zinc-nickel, anodizing, nickel plated, Stainless steel: Passivated Self-Colour, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, DACROMET and Mechanically Applied coating
SA 193 Gr B7m Fasteners Production Process	M2-M24: Cold Forging, hot forging M24-M100, machining and CNC for Customized connecting element
ASTM A193 Grade B7m Bolts Coating	Xylon Coated Fasteners Phosphate Coated Fasteners Hot Dipped Galvanizing Coated Fasteners Teflon Coated Fasteners Zinc Coated Fasteners Cadmium Coated Fasteners Ptfe Coated (Teflon) Fasteners
ASTM A193 Grade B7m Alloy Steel Fasteners Packing	Wooden Pallet, Canton, Carton / Small Box or as required

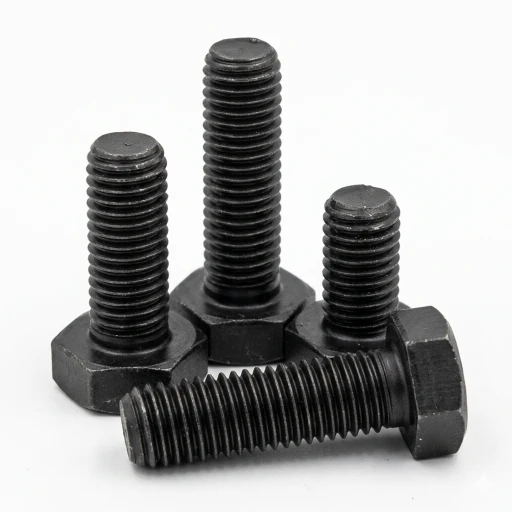

Types of ASTM A193 Grade B7m Bolts

A trusted exporter & supplier of A193 Grade B7m Square Head Bolts, SA 193 Gr B7m Full Thread Stud Bolt, Threaded Bar and J Bolts in Mumbai, India

ASME SA 193 Grade B7m Flange Bolts

ASTM A193 Grade B7m Heavy Hex Bolts

SA 193 Grade B7m Hex Bolts

ASTM A193 gr B7m Square Bolts

A193 Gr B7m U Bolts

ASTM A193 B7m Eye Bolts

ASME SA 193 Grade B7m Lag Bolts

ASTM A193 Grade B7m Anchor Bolts

SA 193 Grade B7m Hex Head Bolts

ASTM A193 gr B7m Carriage Bolts

A193 Gr B7m Allen Cap Bolt

ASTM A193 B7m Countersunk Bolts

SA 193 Grade B7m Nuts Types

ASME SA 193 Grade B7m Eye Nuts

ASTM A193 Grade B7m Heavy Hex Nuts

SA 193 Grade B7m Hex Nuts

ASTM A193 gr B7m Jam Nuts

A193 Gr B7m Lock Nuts

ASTM A193 B7m Panel Nuts

A193 Grade B7m Square Nuts

SA 193 B7m T-Nuts For Wood

A193 B7m Wheel Nuts and Caps

ASME SA 193 B7m Wing Nuts

ASTM A193 B7m Alloy Steel Cage Nuts and Spring Nuts

A193 B7m Alloy Steel Self Locking Nuts

Types of A193 Gr B7m Threaded Rod and Studs

View weight chart, sizes & dimension table of A193 Gr B7m Countersunk Screws, SA 193 Grade B7m Hex Head Bolt & B7m Stainless Steel Studs

ASME SA 193 Grade B7m Stud Bolts

ASTM A193 Grade B7m Double Ended Studs

SA 193 Grade B7m Tie Rod

ASTM A193 gr B7m Fully Threaded Studs

A193 Gr B7m Threaded Rod

ASTM A193 B7m Unc Stud Bolt

A193 Grade B7m Hex Bolt Dimensions Metric

Hexagon Head Bolt (not Din931) Metric Coarse ISO 4014

d	ds max	ds min	S nom	S min	E min	K nom	K max	K min
M1.6	1.6000	1.4600	3.2000	3.0200	3.4100	1.1000	1.2250	0.9750
M2	2.0000	1.8600	4.0000	3.8200	4.3200	1.4000	1.5250	1.2750
M2.5	2.5000	2.3600	5.0000	4.8200	5.4500	1.7000	1.8250	1.5750
M3	3.0000	2.8600	5.5000	5.3200	6.0100	2.0000	2.1250	1.8750
M4	4.0000	3.8200	7.0000	6.7800	7.6600	2.8000	2.9250	2.6750
M5	5.0000	4.8200	8.0000	7.7800	8.7900	3.5000	3.6500	3.3500
M6	6.0000	5.8200	10.0000	9.7800	11.0500	4.0000	4.1500	3.8500
M8	8.0000	7.7800	13.0000	12.7300	14.3800	5.3000	5.4500	5.1500
M10	10.0000	9.7800	16.0000	15.7300	17.7700	6.4000	6.5800	6.2200
M12	12.0000	11.7300	18.0000	17.7300	20.0300	7.5000	7.6800	7.3200
M16	16.0000	15.7300	24.0000	23.6700	26.7500	10.0000	10.1800	9.8200
M20	20.0000	19.6700	30.0000	29.6700	33.5300	12.5000	12.7150	12.2850
M24	24.0000	23.6700	36.0000	35.3800	39.9800	15.0000	15.2150	14.7850
M30	30.0000	29.4800	46.0000	45.0000	50.8500	18.7000	-	-
M36	36.0000	35.3800	55.0000	53.8000	60.7900	22.5000	-	-
M42	42.0000	41.3800	65.0000	63.1000	71.3000	26.0000	-	-
M48	48.0000	47.3800	75.0000	73.1000	82.6000	30.0000	-	-
M56	56.0000	55.2600	85.0000	82.8000	93.5600	35.0000	-	-
M64	64.0000	63.2600	95.0000	92.8000	104.8600	40.0000	-	-

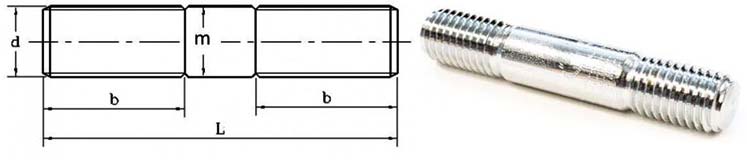

SA 193 B7m Stud Bolt Metric Dimensions

Double End Stud

d	L is less than 6 b max	L is more than 6 b max	m max	m min
1/4"	0.8750	1.1250	0.2500	0.2127
5/16"	1.0310	1.2810	0.3125	0.2712
3/8"	1.1880	1.4380	0.3750	0.3287
7/16"	1.3440	1.5940	0.4375	0.3850
1/2"	1.5000	1.7500	0.5000	0.4435
9/16"	1.6560	1.9060	0.5625	0.5016
5/8"	1.8120	2.0620	0.6250	0.5589
3/4"	2.1250	2.3750	0.7500	0.6773
7/8"	2.4380	2.6880	0.8750	0.7946
1"	2.7500	3.0000	1.0000	0.9100
1-1/8"	3.0620	3.3120	1.1250	1.0228
1-1/4"	3.3750	3.6250	1.2500	1.1476
1-3/8"	3.6880	3.9280	1.3750	1.2563
1-1/2"	4.0000	4.2500	1.5000	1.3812

A193 B7m Hex Nut Dimensions Metric

Hexagon Full Nut Metric Fine DIN 934

d	s	e	m
M1.2	3.0000	3.2900	1.0000
M1.4	3.0000	3.2900	1.2000
M1.6	3.2000	3.4800	1.3000
M1.7	3.5000	3.8200	1.4000
M2	4.0000	4.3200	1.6000
M2.3	4.5000	4.9500	1.8000
M2.5	5.0000	5.4500	2.0000
M2.6	5.0000	5.5100	2.0000
M3	5.5000	6.0100	2.4000
M3.5	6.0000	6.0100	2.8000
M4	7.0000	7.6600	3.2000
M5	8.0000	8.7600	4.0000
M6	10.0000	11.0500	5.0000
M7	11.0000	12.1200	5.5000
M8	13.0000	14.3800	6.5000
M10	17.0000	18.9000	8.0000
M12	19.0000	21.1000	10.0000
M14	22.0000	24.4900	11.0000
M16	24.0000	26.7500	13.0000
M18	27.0000	29.5600	15.0000
M20	30.0000	32.9500	16.0000
M22	32.0000	35.0300	18.0000
M24	36.0000	39.5500	19.0000
M27	41.0000	45.2000	22.0000
M30	46.0000	50.8500	24.0000
M33	50.0000	55.3700	26.0000
M36	55.0000	60.7900	29.0000
M39	60.0000	66.4400	31.0000
M42	65.0000	71.3000	34.0000
M45	70.0000	76.9500	36.0000
M48	75.0000	82.6000	38.0000
M52	80.0000	88.2500	42.0000
M56	85.0000	95.0700	45.0000
M60	90.0000	100.7200	48.0000
M64	95.0000	106.3700	51.0000
M68	100.0000	112.0200	54.0000
M72	105.0000	117.6700	58.0000
M76	110.0000	123.3200	61.0000
M80	115.0000	128.9700	64.0000
M85	120.0000	133.1100	68.0000
M90	130.0000	145.7700	72.0000
M95	135.0000	151.4200	76.0000
M100	145.0000	162.7200	80.0000
M110	155.0000	174.0200	88.0000
M115	165.0000	185.3200	92.0000
M120	170.0000	190.9700	96.0000
M125	180.0000	202.2700	100.0000
M130	185.0000	207.7500	104.0000
M135	190.0000	213.4000	108.0000
M140	200.0000	224.7000	112.0000
M145	210.0000	236.0000	116.0000
M150	210.0000	236.0000	120.0000

ASME SA 193 B7m Washer Dimensions

Flat Washer Metric Form DIN 125A

D	d1	d2	h
M1	1.1000	3.0000	0.3000
M1.2	1.3000	3.5000	0.3000
M1.4	1.5000	4.0000	0.3000
M1.6	1.7000	4.0000	0.3000
M1.7	1.8000	4.5000	0.3000
M2	2.2000	5.0000	0.3000
M2.3	2.5000	6.0000	0.5000
M2.5	2.7000	6.0000	0.5000
M2.6	2.8000	7.0000	0.5000
M3	3.2000	7.0000	0.5000
M3.5	3.7000	8.0000	0.5000
M4	4.3000	9.0000	0.8000
M5	5.3000	10.0000	1.0000
M6	6.4000	12.0000	1.6000
M7	7.4000	14.0000	1.6000
M8	8.4000	16.0000	1.6000
M10	10.5000	20.0000	2.0000
M12	13.0000	24.0000	2.5000
M14	15.0000	28.0000	2.5000
M16	17.0000	30.0000	3.0000
M18	19.0000	34.0000	3.0000
M20	21.0000	37.0000	3.0000
M22	23.0000	39.0000	3.0000
M24	25.0000	44.0000	4.0000
M27	28.0000	50.0000	4.0000
M30	31.0000	56.0000	4.0000
M33	34.0000	60.0000	5.0000
M36	37.0000	6.0000	5.0000
M39	40.0000	72.0000	6.0000
M42	43.0000	78.0000	7.0000
M45	46.0000	85.0000	7.0000
M48	50.0000	92.0000	8.0000
M52	54.0000	98.0000	8.0000
M55	57.0000	105.0000	9.0000
M56	58.0000	105.0000	9.0000
M58	60.0000	110.0000	9.0000
M60	62.0000	110.0000	9.0000
M64	66.0000	115.0000	9.0000
M68	70.0000	120.0000	10.0000
M72	74.0000	125.0000	10.0000
M76	78.0000	135.0000	10.0000
M80	82.0000	140.0000	12.0000
M85	87.0000	145.0000	12.0000
M90	93.0000	160.0000	12.0000
M95	98.0000	165.0000	12.0000
M100	104.0000	175.0000	14.0000
M105	109.0000	180.0000	14.0000
M110	114.0000	185.0000	14.0000
M115	119.0000	200.0000	14.0000
M120	124.0000	210.0000	16.0000
M125	129.0000	220.0000	16.0000
M130	134.0000	230.0000	16.0000
M135	139.0000	230.0000	16.0000
M140	144.0000	240.0000	18.0000
M145	149.0000	250.0000	18.0000
M150	155.0000	250.0000	18.0000
M160	165.0000	250.0000	18.0000

ASTM A193 Grade B7m Bolts Heat Treatment

Hardened @850°C & Tempered @650°C.

ASTM A193 B7m Alloy Steel Fasteners Chemical Composition

B7M	C	Mn	P	S	Si	Cr	Mo
B7M	0.37-0.49	0.65-1.10	0.035 Max	0.04 Max	0.15-0.35	0.75-1.20	0.15-0.25

A193 B7m Alloy Steel Bolts Mechanical Properties

Grade	Description	Diameter	Tensile Strength, min.	Yield Strength, min.	Hardness, max.	Marking
ASTM A193 B7M	Chromium-Molybdenum	4” and under	100	80	235 HB or 99 HRB	B7M
		over 4” to 7”	100	75	235 HB or 99 HRB

ASME SA 193 Gr B7m Nut Bolt Equivalent Grade

Equivalent Designation
SS 2378*
UNS
EN number 1.4547
EN name X1CrNiMoCuN20-18-7
W.Nr. 1.4529**
AFNOR Z1 CNDU 20.18.06AZ*

Grade	Material	Type	Steel
B7M	AISI 4140	Alloy Steel	Chromium Molybdenum (chrome moly)
