SA 193 B16 Hex Bolt and Grade B16 Threaded Rod, Socket Head Cap Screws manufacturer in India

What are ASTM A193 b16 bolts?

ASTM A193 Grade B16 Bolts are made up of the corrosion resistant austenitic stainless steel. The bolts of the specification ASTM A193 are meant for high temperature services. The material must include the chromium, molybdenum vanadium alloy. The bolts are expected to have minimum strength but with maximum hardness. The composition makes it possible to have the hardness and mechanical properties. There are carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum, vanadium and aluminum in the composition. So the ASTM A193 gr b16 material is a carbon steel with chromium, molybdenum and vanadium content.

The applications include the automotive, exhaust, heat exchanger, power generation, oil and gas and many other industrial applications. Please feel free to contact us to know more about the different types of the SA193 gr b16 bolts and the prices.

How to ensure A193 grade b16 stud bolts strongest threads?

Rolled threads are 7% stronger compare to cut threads and less expensive.

ASTM A193 gr b16 Hex Bolt torque chart?

The strength and capacity of the bolts can be explained by a torque table in relation to the bolt size. The torque value, the bolt pre-load, the nut factor base on lubricant used and the nominal bolt diameter are all used to calculate the torque strength. Below torque table also helps to determine the full torque or final torque with intermediate torque levels at 30%, 70% and so on.

SA193 b16 Studs temperature rating?

The ASTM A193 grade b16 stud bolts are also recommended for use under 45 degrees Celsius temperature. The strength of the SA193 b16 Studs begins at 50ksi minimum yield strength up to 105ksi and the tensile strength starts at 95ksi and ranges up to 125ksi. The hardness of the ASTM A193 grade b16 material starts from 271 HBW for class 1C and 1D and it goes up to 321HBW.

As a leading manufacturer, we produce the Stud Bolt ASTM A193 gr b16 for high temperature services that can range from -30 degrees Celsius to 593 degrees Celsius. The material is also quenched and tempered at 860 degrees Celsius to provide the extra hardness needed for the high temperature services.

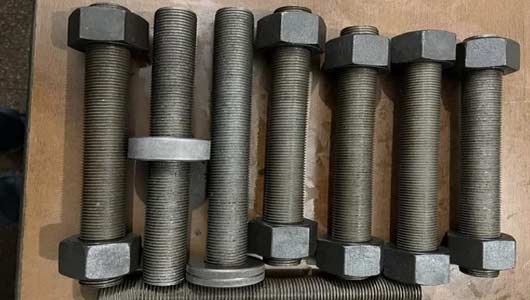

ASTM A193 Grade B16 Bolts

SA 193 Gr B16 Threaded Rod and Studs

ASME SA193 Grade B16 Hex Bolt

AISI 4140 A193 B16 Stud Bolt

ASME SA193 Gr B16 Nuts

SA 193 B16 Fasteners

ASTM A193 Grade B16 Hex Head Bolt, Studs & SA 193 B16 Material supplier in Mumbai

ASTM A193 Grade B16 Bolts Price List India
SA 193 B16 Fasteners Specifications
Types of ASTM A193 Gr B16 Bolts
SA 193 Gr B16 Nuts Types
ASME SA193 Grade B16 Screws Types
Types of AISI 4140 A193 B16 Threaded Rod and Studs
Different types of ASME SA193 Gr B16 Washers
ASTM A193 B16 Hex Bolt with Nut Dimensions
Alloy Steel ASTM A193 gr B16 Double End Stud Dimensions
A193 B16 Hex Nut Metric Dimensions
ASTM A193 Grade B16 Alloy Steel Flat Washer Dimensions
ASTM A193 Grade B16 Bolts Torque Chart
A193 Grade B16 Fasteners Chemical Composition
Grade B16 Alloy Steel Bolts Mechanical Properties
A193 Gr B16 Nut Bolt Equivalent Grade

ASTM A193 Grade B16 Bolts Price List India

Manufacturer of A193 Grade B16 Stud Bolts, Countersunk Screws, J Bolts, Square Head Bolts in unf, fine, unc, un, coarse, bsw or acme threads

Material	Price in India
ASTM A193 b16 Stud Bolts with Hex Nuts, Size 5/8" 11X 110 MM UNC	INR 175/Kg

For more price call us or send us an email to marketing@rolexmetals.com.

SA 193 B16 Fasteners Specifications

SA 193 B16 Bolts	ANSI B18.2.1, DIN 931/ 933
ASTM A193 Gr B16 Hex Bolts Size Metric	Dia: M10 - M110 Length: 12 - 1200MM
SA 193 Gr B16 Hex Bolts Size Inch	Dia: 1/2" - 4.0" Length: 1/2" - 52"
ASME SA193 Grade B16 Eye Bolts Metric Size	Dia: M10 - M48
AISI 4140 A193 B16 Stud Bolt Metric Size	Dia: M10 - M110 Length: 12 mm - 6000 mm
ASME SA193 Gr B16 Stud Bolt Inch	Dia: 1/2" - 4.1/2" Length: 1/2" - 236"
ASTM A193 B16 Hex Nut (DIA)	Metric: M6 - M110 Inch: 1/4" - 4.5"
Alloy Steel ASTM A193 gr B16 Plain Washer (DIA)	Metric: M6 - M110 Inch: 1/2" - 4.1/2"
ASTM A193 Grade B16 Bolts International Standard	IS, ANSI, ASTM DIN, ISO, JIS, GB, ASME, BS, UNI
A193 B16 Bolts Standard Sizes	M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160
ASTM A193 Grade B16 Alloy Steel Fasteners Threads	BSF, UNF METRIC, UNC, UNEF, BSW or as required
ASME/ ANSI - American Standard ASTM A193 Grade B16 Bolts	ANSI B 28.2.4 1M ANSI B 18.2.4 2M ASME B18.5 ASME B18.2.2
DIN German Standard ASTM A193 Grade B16 Bolts	DIN 933, DIN 931, DIN 970, DIN 934
ISO Standard A193 Grade B16 Bolts	ISO 4033, : ISO 4032, JIS standards
Grade B16 Alloy Steel Bolts / Screws Head Drive	Phillips, Slotted, Phillips/Slot, Six-Lobe
MTC (Manufacturer Test Certificate)	EN 10204 / 3.1
A193 Gr B16 Nut Bolt Finishing	Zinc white, (yellow, black, blue), black oxide, Dacroment, Geometry, plated zinc-nickel, anodizing, nickel plated, Stainless steel: Passivated Self-Colour, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, DACROMET and Mechanically Applied coating
ASME SA193 B16 Fasteners Production Process	M2-M24: Cold Forging, hot forging M24-M100, machining and CNC for Customized connecting element
ASTM A193 Grade B16 Bolts Coating	Xylon Coated Fasteners Phosphate Coated Fasteners Hot Dipped Galvanizing Coated Fasteners Teflon Coated Fasteners Zinc Coated Fasteners Cadmium Coated Fasteners Ptfe Coated (Teflon) Fasteners
SA 193 Grade B16 Fasteners Packing	Wooden Pallet, Canton, Carton / Small Box or as required

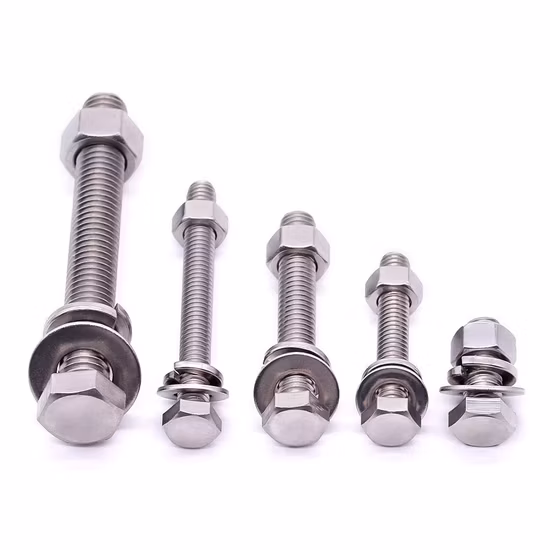

Types of ASTM A193 Gr B16 Bolts

Metric & Imperial size ASTM A193 B16 Bolts, SA 193 gr B16 Square Head Bolts, Full Thread Stud Bolt, Threaded Fasteners exporter in India

SA 193 B16 Flange Bolts

ASTM A193 Gr B16 Heavy Hex Bolts

SA 193 Gr B16 Hex Bolts

ASME SA193 Grade B16 Eye Bolts

AISI 4140 A193 B16 Lag Bolts

ASME SA193 Gr B16 Square Bolts

ASTM A193 B16 U Bolts

Alloy Steel ASTM A193 gr B16 Anchor Bolts

A193 B16 Hex Head Bolts

ASTM A193 Grade B16 Alloy Steel Carriage Bolts

A193 Grade B16 Allen Cap Bolt

Grade B16 Alloy Steel Countersunk Bolts

SA 193 Gr B16 Nuts Types

SA 193 B16 Hex Nuts

ASTM A193 Gr B16 Heavy Hex Nuts

SA 193 Gr B16 Castle Nuts

ASME SA193 Grade B16 Hex Jam Nuts

AISI 4140 A193 B16 Heavy Jam Nuts

ASME SA193 Gr B16 Hex Coupling Nuts

ASTM A193 B16 Sleeve Nuts

Alloy Steel ASTM A193 gr B16 Lock Nuts

A193 B16 Rivet Nuts

ASTM A193 Grade B16 Alloy Steel Lug Nuts

A193 Grade B16 Tee Nut

Grade B16 Alloy Steel Nylon Insert Hex Lock Nuts

ASME SA193 Grade B16 Screws Types

A193 Gr B16 Self Drilling Screws

ASME SA193 B16 Self Tapping Screws

SA 193 Grade B16 Set Screws

ASTM A193 Grade B16 Socket Head Cap Screw

SA 193 B16 Dowel Screw

ASTM A193 Gr B16 Countersunk Screws

SA 193 Gr B16 Socket Set Screw

ASME SA193 Grade B16 Wood Screw

Types of AISI 4140 A193 B16 Threaded Rod and Studs

Check size chart with price list of ASTM A193 gr B16 Studs, SA 193 B16 Anchor Bolts, Threaded Bar in India

SA 193 B16 Stud Bolts

ASTM A193 Gr B16 Double Ended Studs

ASME SA193 Grade B16 Fully Threaded Studs

AISI 4140 A193 B16 Threaded Rod

ASME SA193 Gr B16 Unc Stud Bolt

Different types of ASME SA193 Gr B16 Washers

SA 193 B16 Flat Washers

ASTM A193 Gr B16 Lock Washer

SA 193 Gr B16 Spring Washer

ASME SA193 Grade B16 Washers

AISI 4140 A193 B16 Split Washers

ASME SA193 Gr B16 Dock Washers

ASTM A193 B16 Star Washers

Alloy Steel ASTM A193 gr B16 Belleville Washers

A193 B16 Fender Washer

ASTM A193 Grade B16 Alloy Steel Square Washers

A193 Grade B16 Spherical Washer

ASTM A193 B16 Hex Bolt with Nut Dimensions

Hexagon Head Bolt with Nut DIN555 DIN601, ASME SA193 Gr B16, Metric Coarse

D	k nom	k Max	Min	s max	s min	e nom	e Max	Min	shank Max	shank Min	washer Max	washer Min
M1.6	1.1000	1.2250	0.9750	3.2000	3.0800	3.4100	3.7000	3.4800	1.6000	1.4600	-	-
M2	1.4000	1.5250	1.2750	4.0000	3.8800	4.3200	4.6000	4.3800	2.0000	1.8600	-	-
M2.5	1.7000	1.8250	1.5750	5.0000	4.8800	5.4500	5.8000	5.5100	2.5000	2.2300	-	-
M3	2.0000	2.1250	1.8750	5.5000	5.3800	6.0100	6.4000	6.0800	3.0000	2.8600	5.0800	4.8300
M3.5	2.4000			6.0000		6.5800
M4	2.8000	2.9250	2.6750	7.0000	6.8500	7.6600	8.1000	7.7400	4.0000	3.8200	6.5500	6.3000
M5	3.5000	3.6500	3.3500	8.0000	7.8500	8.7900	9.2000	8.8700	5.0000	4.8200	7.5500	7.3000
M6	4.0000	4.1500	3.8500	10.0000	9.7800	11.0500	11.5000	11.0500	6.0000	5.8200	9.4800	9.2300
M7	4.8000			11.0000		12.1200
M8	5.3000	5.6500	5.3500	13.0000	12.7300	14.3800	15.0000	14.3800	8.0000	7.7800	12.4300	12.1800
M10	6.4000	7.1800	6.8200	17.0000	16.7300	18.9000	19.6000	18.9000	10.0000	9.7800	16.4300	16.1800
M12	7.5000	8.1800	7.8200	19.0000	18.6700	21.1000	21.9000	21.1000	12.0000	11.7300	18.3700	18.1200
M14	8.8000	9.1800	8.8200	22.0000	21.6700	24.4900	25.4000	24.4900	14.0000	13.7300	21.3700	21.1200
M16	10.0000	10.1800	9.8200	24.0000	23.6700	26.7500	27.7000	26.7500	16.0000	15.7300	23.2700	23.0200
M18	11.5000	12.2150	11.7850	27.0000	26.6700	30.1400	31.2000	30.1400	18.0000	17.7300	26.2700	26.0200
M20	12.5000	13.2150	12.7850	30.0000	29.6700	33.5300	34.6000	33.5300	20.0000	19.6700	29.2700	28.8000
M22	14.0000	14.2150	13.7850	32.0000	31.6100	35.7200	36.9000	35.7200	22.0000	21.6700	31.2100	30.7400
M24	15.0000	15.2150	14.7850	36.0000	35.3800	39.9800	41.6000	39.9800	24.0000	23.6700	34.9800	34.5100
M27	17.0000	17.2150	16.7850	41.0000	40.3800	45.2000	47.3000	45.6300	27.0000	26.6700	39.9800	39.3600
M30	18.7000	19.2600	18.7400	46.0000	45.3800	50.8500	53.1000	51.2800	30.0000	29.6700	44.9800	44.3600
M33	21.0000	21.2600	20.7400	50.0000	49.3800	55.3700	57.7000	55.8000	33.0000	32.6100	48.9800	48.3600
M36	22.5000	23.2600	22.7400	55.0000	54.2600	60.7900	63.5000	61.3100	36.0000	35.6100	53.8600	53.2400
M39	25.0000	25.2600	24.7400	60.0000	59.2600	66.4000	69.3000	66.9600	39.0000	38.6100	58.8600	58.2400
M42	26.0000	26.2600	25.7400	65.0000	64.2600	71.3000	75.1000	72.6100	42.0000	41.6100	63.7600	63.0400
M45	28.0000	28.2600	27.7400	70.0000	69.2600	76.9500	80.8000	78.2600	45.0000	44.6100	68.7600	68.0400
M48	30.0000	30.2600	29.7400	75.0000	74.2600	82.6000	86.6000	83.9100	48.0000	47.6100	73.7600	73.0400
M52	33.0000	33.2100	32.6900	80.0000	79.2600	88.3000	92.4000	89.5600	52.0000	51.5400	-	-
M56	35.0000	35.3100	34.6900	85.0000	84.1300	93.6300	98.1000	95.0700	56.0000	55.5400	-	-
M60	38.0000	38.3100	37.6900	90.0000	89.1300	99.3500	103.9000	100.7200	60.0000	59.5400	-	-
M64	40.0000	40.3100	39.6900	95.0000	94.1300	104.9800	109.7000	106.3700	64.0000	63.5400	-	-
M68	43.0000	43.3100	42.6900	100.0000	99.1300	110.5000	115.5000	112.0200	68.0000	67.5400	-	-
M72	45.0000			105.0000	102.8000	116.0300				71.2600
M76	48.0000			110.0000	107.8000	121.5500				75.2600
M80	50.0000			115.0000		127.3000				79.2600
M90	57.0000			130.0000		144.0000				89.1300
M100	63.0000			145.0000		161.0000				99.1300
M110	69.0000			155.0000		171.2800				109.1300
M125	79.0000			180.0000		198.9000				124.0000
M140	88.0000			200.0000		221.0000				139.0000
M160	100.0000			230.0000		254.1500				159.0000

Alloy Steel ASTM A193 gr B16 Double End Stud Dimensions

DIN940 Stud End =2.1/2 D Sk6, AISI 4140 A193 B16, Metric Coarse

d	b	c l<125	c l<125<200	c l 200>
M3	7.5000	12.0000	18.0000
M4	10.0000	14.0000	20.0000
M5	12.5000	16.0000	22.0000
M6	15.0000	18.0000	24.0000	37.0000
M7	17.5000	20.0000	26.0000	39.0000
M8	20.0000	22.0000	28.0000	41.0000
M10	25.0000	26.0000	32.0000	45.0000
M12	30.0000	30.0000	36.0000	49.0000
M14	35.0000	34.0000	40.0000	53.0000
M16	40.0000	38.0000	44.0000	57.0000
M18	45.0000	42.0000	48.0000	61.0000
M20	50.0000	46.0000	52.0000	65.0000
M22	55.0000	50.0000	56.0000	69.0000
M24	60.0000	54.0000	60.0000	73.0000
M27	67.5000	60.0000	66.0000	79.0000
M30	75.0000	66.0000	72.0000	85.0000
M33	82.5000	72.0000	78.0000	91.0000
M36	90.0000	78.0000	84.0000	97.0000

A193 B16 Hex Nut Metric Dimensions

Hexagon Full Nut ASME SA193 Grade B16 DIN934, Metric Coarse

d	s	e	m
M1.2	3.0000	3.2900	1.0000
M1.4	3.0000	3.2900	1.2000
M1.6	3.2000	3.4800	1.3000
M1.7	3.5000	3.8200	1.4000
M2	4.0000	4.3200	1.6000
M2.3	4.5000	4.9500	1.8000
M2.5	5.0000	5.4500	2.0000
M2.6	5.0000	5.5100	2.0000
M3	5.5000	6.0100	2.4000
M3.5	6.0000	6.0100	2.8000
M4	7.0000	7.6600	3.2000
M5	8.0000	8.7600	4.0000
M6	10.0000	11.0500	5.0000
M7	11.0000	12.1200	5.5000
M8	13.0000	14.3800	6.5000
M10	17.0000	18.9000	8.0000
M12	19.0000	21.1000	10.0000
M14	22.0000	24.4900	11.0000
M16	24.0000	26.7500	13.0000
M18	27.0000	29.5600	15.0000
M20	30.0000	32.9500	16.0000
M22	32.0000	35.0300	18.0000
M24	36.0000	39.5500	19.0000
M27	41.0000	45.2000	22.0000
M30	46.0000	50.8500	24.0000
M33	50.0000	55.3700	26.0000
M36	55.0000	60.7900	29.0000
M39	60.0000	66.4400	31.0000
M42	65.0000	71.3000	34.0000
M45	70.0000	76.9500	36.0000
M48	75.0000	82.6000	38.0000
M52	80.0000	88.2500	42.0000
M56	85.0000	95.0700	45.0000
M60	90.0000	100.7200	48.0000
M64	95.0000	106.3700	51.0000
M68	100.0000	112.0200	54.0000
M72	105.0000	117.6700	58.0000
M76	110.0000	123.3200	61.0000
M80	115.0000	128.9700	64.0000
M85	120.0000	133.1100	68.0000
M90	130.0000	145.7700	72.0000
M95	135.0000	151.4200	76.0000
M100	145.0000	162.7200	80.0000
M110	155.0000	174.0200	88.0000
M115	165.0000	185.3200	92.0000
M120	170.0000	190.9700	96.0000
M125	180.0000	202.2700	100.0000
M130	185.0000	207.7500	104.0000
M135	190.0000	213.4000	108.0000
M140	200.0000	224.7000	112.0000
M145	210.0000	236.0000	116.0000
M150	210.0000	236.0000	120.0000

ASTM A193 Grade B16 Alloy Steel Flat Washer Dimensions

Metric Type A Flat Washer ASTM A193 B16 DIN 125A

D	d1	d2	h
M1	1.1000	3.0000	0.3000
M1.2	1.3000	3.5000	0.3000
M1.4	1.5000	4.0000	0.3000
M1.6	1.7000	4.0000	0.3000
M1.7	1.8000	4.5000	0.3000
M2	2.2000	5.0000	0.3000
M2.3	2.5000	6.0000	0.5000
M2.5	2.7000	6.0000	0.5000
M2.6	2.8000	7.0000	0.5000
M3	3.2000	7.0000	0.5000
M3.5	3.7000	8.0000	0.5000
M4	4.3000	9.0000	0.8000
M5	5.3000	10.0000	1.0000
M6	6.4000	12.0000	1.6000
M7	7.4000	14.0000	1.6000
M8	8.4000	16.0000	1.6000
M10	10.5000	20.0000	2.0000
M12	13.0000	24.0000	2.5000
M14	15.0000	28.0000	2.5000
M16	17.0000	30.0000	3.0000
M18	19.0000	34.0000	3.0000
M20	21.0000	37.0000	3.0000
M22	23.0000	39.0000	3.0000
M24	25.0000	44.0000	4.0000
M27	28.0000	50.0000	4.0000
M30	31.0000	56.0000	4.0000
M33	34.0000	60.0000	5.0000
M36	37.0000	6.0000	5.0000
M39	40.0000	72.0000	6.0000
M42	43.0000	78.0000	7.0000
M45	46.0000	85.0000	7.0000
M48	50.0000	92.0000	8.0000
M52	54.0000	98.0000	8.0000
M55	57.0000	105.0000	9.0000
M56	58.0000	105.0000	9.0000
M58	60.0000	110.0000	9.0000
M60	62.0000	110.0000	9.0000
M64	66.0000	115.0000	9.0000
M68	70.0000	120.0000	10.0000
M72	74.0000	125.0000	10.0000
M76	78.0000	135.0000	10.0000
M80	82.0000	140.0000	12.0000
M85	87.0000	145.0000	12.0000
M90	93.0000	160.0000	12.0000
M95	98.0000	165.0000	12.0000
M100	104.0000	175.0000	14.0000
M105	109.0000	180.0000	14.0000
M110	114.0000	185.0000	14.0000
M115	119.0000	200.0000	14.0000
M120	124.0000	210.0000	16.0000
M125	129.0000	220.0000	16.0000
M130	134.0000	230.0000	16.0000
M135	139.0000	230.0000	16.0000
M140	144.0000	240.0000	18.0000
M145	149.0000	250.0000	18.0000
M150	155.0000	250.0000	18.0000
M160	165.0000	250.0000	18.0000

ASTM A193 Grade B16 Bolts Torque Chart

ASTM 193 Grade B16 Bolts & Stud Torque FT-LBS

BOLT SIZE	Torque FT-LBS
BOLT SIZE	30% Initial Torque	70% Torque	100% Final Torque
1/2	17	39	55
9/16	24	55	80
5/8	33	77	110
3/4	59	137	195
7/8	93	217	310
1	140	325	465
1.1/8	205	480	685
1¼	288	672	960
1.3/8	391	915	1305
1½	518	1208	1725
1.9/16	588	1372	1960
1.5/8	668	1558	2225
1¾	840	1960	2800
1.7/8	1044	2436	3480
2	1280	2985	4265
2¼	1850	4315	6165
2½	2565	5985	8550
2¾	3121	7282	10400
3	4080	9520	13600

ASTM 193 Grade B16 Bolts & Stud Torque Nm

BOLT SIZE	Torque Nm
BOLT SIZE	30% Initial Torque	70% Torque	100% Final Torque
1/2	23	53	75
9/16	33	75	108
5/8	45	104	149
3/4	80	186	264
7/8	126	294	420
1	190	441	630
1.1/8	278	651	929
1¼	390	911	1302
1.3/8	530	1241	1769
1½	702	1638	2339
1.9/16	797	1860	2657
1.5/8	906	2112	3017
1¾	1139	2657	3796
1.7/8	1415	3303	4718
2	1735	4047	5783
2¼	2508	5850	8359
2½	3478	8115	11592
2¾	4232	9873	14101
3	5532	12907	18439

ASTM 193 B16 PTFE Coated bolts & Stud with K=0.12. Torque FT-LBS

BOLT SIZE	Torque FT-LBS
BOLT SIZE	30% Initial Torque	70% Torque	100% Final Torque
1/2	12	29	41
9/16	18	41	59
5/8	24	57	82
3/4	43	101	145
7/8	70	163	233
1	105	245	350
1.1/8	154	359	513
1¼	217	505	722
1.3/8	294	685	979
1½	388	905	1292
1.9/16	441	1030	1471
1.5/8	501	1169	1670
1¾	631	1471	2102
1.7/8	783	1827	2610
2	960	2240	3199
2¼	1388	3238	4626
2½	1923	4487	6410
2¾	2341	5462	7802
3	3061	7143	10204

ASTM 193 B16 PTFE Coated bolts & Stud with K=0.12. Torque Nm

BOLT SIZE	Torque Nm
BOLT SIZE	30% Initial Torque	70% Torque	100% Final Torque
1/2	16	39	56
9/16	24	56	80
5/8	33	77	111
3/4	58	137	197
7/8	95	221	316
1	142	332	475
1.1/8	209	487	696
1¼	294	685	979
1.3/8	399	929	1327
1½	526	1227	1752
1.9/16	598	1396	1994
1.5/8	679	1585	2264
1¾	856	1994	2850
1.7/8	1062	2477	3539
2	1302	3037	4337
2¼	1882	4390	6272
2½	2607	6084	8691
2¾	3174	7405	10578
3	4150	9685	13835

A193 Grade B16 Fasteners Chemical Composition

ASTM	A193 Grade B16
Percentage	%
C.	0.37 - 0.49%
Mn.	0.65 - 1.10%
Si.	0.15 - 0.35%
P.	0.035%.
S.	0.040%
Cr.	0.75 - 1.20%
Nickel	--
Mo.	0.15 - 0.25%

Grade B16 Alloy Steel Bolts Mechanical Properties

B16 Grade	Diameter	Tensile Strength ksi, min	Yield Stress, ksi, min	Elong, %, min	RA % min	HBW	HRC
B16	Up to 2-1/2	125	105	18	50	321 max	35 max
	Over 2-1/2 to 4	110	95	17	45
	Over 4 to 8	100	85	16	45

A193 Gr B16 Nut Bolt Equivalent Grade

ASTM A437 Grade B4D
DIN 17240 Grade 40CrMoV47
BS Grade 1506Ö
SEN 10269 Grade 40CrMoV4-6
NORM M3120 Grade 40CrMoV47
UNS Grade K14072
JIS G4108 Grade SNB21-1
JIS G4107 Grade SNB16

JIS G4108 Grade SNB21-3
JIS G4108 Grade SNB21-2
JIS G4108 Grade SNB21-5
JIS G4108 Grade SNB21-4
ISO TR Grade 4956
AISI B16
ASTM A193 Grade B16

57-A Khatargalli, Thakurdwar,Mumbai – 400002 India
+91 98202 92499,
Mon - Saturday: 9.00am to 7.00pm
marketing@rolexmetals.com
marketing@rolexmetals.com
