DIN 935 Stainless Steel Castle Nuts manufacturer in India

Slotted nut are used in applications where vibration or motion might undo the locknut. Into one end of the slotted nut have slots cut. Both castle nuts and slotted nut look similar, and can often be used interchangeably because they have almost identical dimensions. However, they are different in that the knob on a slotted nut are from the base of the nut and include the corners, whereas a castle nut looks like a standard nut with triangular portions standing out, but not including the corners of the hex.

Hex Slotted Nut is cut across the center of the flats of a hex nut. These slots are useful to secure a safety wire or cotter pin to a fastener with a drilled hole. Hence this creates a secure hold to stop loosening between the nut and the fastener. Stainless Steel Castle Nut is often used alongside a bolt or a threaded rod that feature a pre-drilled hole, where a cotter pin can be used to secure the fixing and prevent movement. It is often referred to as slotted nuts, from a technical perspective, slotted nuts differ slightly from castellated nuts. It is formed with a round section at the top where the slots are located. It is used in low-torque applications, such as holding a wheel bearing in place. DIN 935 Castle Nut has structural uniqueness which allows them to be used in mechanical and automotive applications where positive locking is required, like holding a wheel bearing in place. It is also used as a safety nut for other element of designing applications.

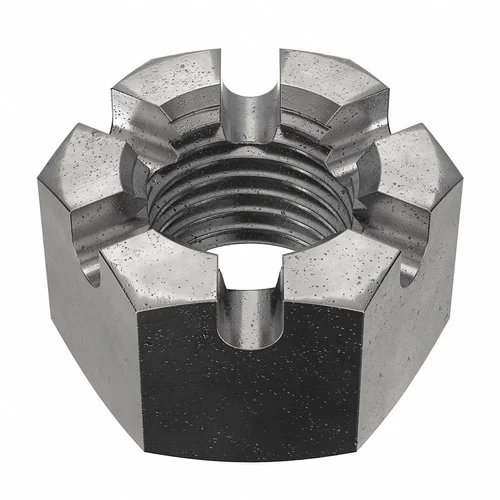

Slotted Nut

Stainless Steel Castle Nut

Hex Slotted Nut

Manufacturer and exporter of SS 304/ 316 Hex Slotted Nut in 18mm, 19mm, 24mm, 20mm and 25mm, get free sample now

Stainless Steel Slotted Nut Specifications
Stainless Steel Slotted Nut Price List
Types of Slotted Nut
Castle hex nut size chart
Slotted Nut Grade Markings
Stainless Steel Slotted Nut Material and Grades

Stainless Steel Slotted Nut Specifications

Buy M12x1 25, M14 1.5, M14 1.5, M10x1 25 Castle Nut And Cotter Pin at best price in Mumbai, India

DIN Standard of Slotted Hex Nut (Castle Nut)	DIN935, DIN937, JIS B1170, ANSI/ASME B18.2.2, ANSI/ASME B18.2.4.3M, BS 3692
British standards of Slotted Nut	BS 57
Stainless Steel Slotted Nut Size	M2-M24
Slotted Nut Size Metric	Dia: M10 - M110 Length: 12 - 1200MM
Slotted Nut Size Inch	Dia: 1/2" - 4.0" Length: 1/2" - 52"
Length	3 mm to 200 mm
UTS - Unified Thread Standard	UNC, UNF, NPT, UNS, UNEF, NPTF Slotted Nut manufacturers in India
SS Slotted Nut Dimensions	ASME B 18.2.2
Metric Slotted Nut Tolerances	+/-0.01mm to +/-0.05mm
Slotted Nut Surface Finish	Anodizing, Hot Dip Galvanised (HDG), Nickel plated, black oxide, Dacroment, Self-Colour, Sherardized, Plated zinc-nickel, Zinc, Bright Zinc Plated (BZP), Stainless Steel Passivated, Geometry
Finish/ Passivation of Stainless Steel Slotted Nut	Accordance to ASTM A380/A380M
Stainless Steel Slotted Nut US Threads	UNK, BSF, BSW, METRIC, UNR, UNJC, Unified National Coarse (UNC), UNJF, Constant-pitch threads, Unified national extra fine (UNEF), Unified national fine (UNF)
Standard	IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN, and all International Standards ANSI B 18.2.4 2M ANSI B 28.2.4 1M Indian IS ANSI - American National Standards Institute GB/T5783, GB/T5782, GB5783 American ASME British BS International ISO American SAE German DIN Spanish CSN European EU Italian UNI Polish PN
Material Origin	Stainless Steel Slotted Nut are Western European. Eastern origin possible on request.
Stainless Steel Slotted Nut Surface Coating	Teflon Hot Dipped Galvanized Phosphate Cadmium Xylon Ptfe Coated Slotted Nut Zinc Phosphate ASTM F1941 Electrodeposited coatings (Zinc plating). Zinc Electro Plating (Hexavalent or Trivalent Chrome) ZAC (Zinc Alluminium Flake Coating) Manganese Phosphate ASTM A153 Zinc coating (hot dip) ASTM B695 zinc coating ASTM F2329 Zinc coating, hot dip All Slotted Nut surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE.
Slotted Nut Surface treatment	Heat-disposing Polish Anodizing Black oxide coating Sand blasting Rust preventive oil Electroplating color Passivation Hot dip galvanized
Stainless Steel Slotted Nut marking and Packing	Slotted Nut Marking as per product specification Wooden Pallet, Canton, Carton / Small Box or as required Carton size : 36* 24 16 CM & 36 24 12 CM or as required Pallet size: Standard Euro Pallet 110 80 *90 CM
Why Rolex Metal Distributors?	DIN 935 Castle Nut manufacturer Based in India, established in Year 2008 Wide International network : Western Europe, Eastern Europe, Middle East, Southeast Asia, North America, and South America Best Price in India compared to Slotted Nut manufacturers in China Highly professional and technical team Always final Inspection before shipment Pre-production Slotted Nut sample before mass production High precision threads
MOQ	5 pieces
Preferred Slotted Nut Drawing Formats	JPEG, PDF, CAD, STP, IGS
Test Certificates provided by Slotted Nut manufacturers	Manufacturer Test Certificate (MTC) as per EN 10204 / 3.1, Slotted Nut Tensile testing to ISO 898-1 Hardness testing to ISO 6508-1 Suitability for preloading to EN 14399-2 Tri-Roll Thread Comparators Slotted Nut Charpy Impact testing in accordance with ISO 148-1 Suitability test for calibrated preload to EN 14399-10 Nut proof load testing to ISO 898-2 Calibrated gauges and tools
Free Samples	Yes
Port of Dispatch	Mumbai or Kalamboli ports in Maharashtra state of India
Delivery time	Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms	T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping
Common Slotted Nut material grades	Stainless Steel Slotted Nut: 18-8 Stainless Steel, 304, 316, 316L, 2205, 410, 431, 416, 440C, 18-8, 4.8, 8.8, A2, A4, A2-50, A2-70, A2-80, A4-50, A4-70, A4-80, A194 8M, A194 Grade 6, A194 7m, A194 Grade 8 Slotted Nut Carbon Steel Slotted Nut : A194 Grade 1, A194 Grade 2, A194 Grade 2HM, A194 Grade 4, A194 Grade , A194 Grade 7m, A194 Grade 2H Slotted Nut Alloy steel Slotted Nut: SCM435, C10B21, C10B33 High Tensile Slotted Nut: 10.9 Grade, 12.9 Grade, 8.8 Grade Slotted Nut Brass Slotted Nut: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40) Bronze Slotted Nut: C51000, C52100, C54400 etc Aluminum Slotted Nut: Al6061, Al6063 etc Titanium Slotted Nut: TAD, TA1-TA8, TB2, TC1-TC10
Other Fasteners	Hex Bolt Machine Screw Hex Nuts Flat Washer Threaded Rod Stud Bolt
ISO - International Organization for Standardization	ISO 4014 Hex Bolt ISO 4017 Hex Head Screw ISO 4032 Nut ISO 4162 Flange Bolts ISO 4161 Flange Nut

Stainless Steel Slotted Nut Price List

Manufacturer of Hex Castle Nut in all material & sizes, view grades and dimensiosn chart

Products	FOB Price US $
DIN 935 Castle Nut	US $0.02-$0.08/ Piece
316 Slotted Nut DIN935	US $0.01-$0.50/ Piece
Stainless Steel 304 Castle Hex Nut	US $0.01-$0.50/ Piece
M16 DIN 935 Hex Castle Nut / Crown Nut	US $0.10/ Piece
Hex slotted and castle nuts m80	US 2.00-12.00/ Piece
Stainless Steel Hexagon Slotted and Castle Nut	US $0.02/ Piece
Brass Slotted Castle Nut	US $0.10-$3.00/ Piece
Carbon Steel slotted and castle nut	US $0.01 - $0.10/ Piece
DIN 937 DIN 979 Fine Pitch Thread Hex Thin Slotted and Castle Nuts	US $0.10/ Piece
A2-70 stainless steel Hex Slotted Nut DIN635	US $0.05-$0.08/ Piece
A4-80 Castle Nut	US $0.05-$0.08/ Piece
GOST 2528 Hex Slotted Castle Nut	US $0.01-$0.02/ Piece

Call us or send us an email to marketing@rolexmetals.com for more details.

Types of Slotted Nut

DIN 935 Castle Nut

316 SS Slotted Castle Nut

Stainless Steel 304 Castle Hex Nut

M16 DIN 935 Crown Nut

Stainless Steel Hex Castle Nut

Brass Slotted Castle Nut

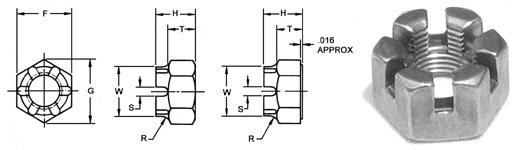

Castle hex nut size chart

						Hex Castle Nuts								ANSI B18.2.2
			F		G		H			T			S		R	W	Runout
Nominal Size					Width					Unslotted			Width of		Radius	Diam.	of
or Basic Major					Across		Thickness			Thickness and			Slot		of	of	Bearing
Diameter		Width	Across	Flats	Corners					Height of Flat					Filet	Cylindri.	Surface
of Thread		Basic	Max	Min	Max	Min	Basic	Max	Min	Nom	Max	Min	Max	Min	+ 0.01	Min	Max
1/4"	0.2500	7/16"	0.438	0.428	0.505	0.488	9/32"	0.288	0.274	3/16"	0.200	0.180	0.100	0.070	0.094	0.371	0.015
5/16"	0.3125	1/2"	0.500	0.489	0.577	0.557	21/64"	0.336	0.320	15/64"	0.240	0.220	0.120	0.090	0.094	0.425	0.016
3/8"	0.3750	9/16"	0.562	0.551	0.650	0.628	13/32"	0.415	0.398	9/32"	0.290	0.270	0.150	0.120	0.094	0.478	0.017
7/16"	0.4375	11/16"	0.688	0.675	0.794	0.768	29/64"	0.463	0.444	19/64"	0.310	0.290	0.150	0.120	0.094	0.582	0.018
1/2"	0.5000	3/4"	0.750	0.736	0.866	0.840	9/16"	0.573	0.552	13/32"	0.420	0.400	0.180	0.150	0.125	0.637	0.019
9/16"	0.5625	7/8"	0.875	0.861	1.010	0.982	39/64"	0.621	0.598	27/64"	0.430	0.410	0.180	0.150	0.156	0.744	0.020
5/8"	0.6250	15/16"	0.938	0.922	1.083	1.051	23/32"	0.731	0.706	1/2"	0.510	0.490	0.240	0.180	0.156	0.797	0.021
3/4"	0.7500	1-1/8"	1.125	1.088	1.299	1.240	13/16"	0.827	0.798	9/16"	0.570	0.550	0.240	0.180	0.188	0.941	0.023
7/8"	0.8750	1-5/16"	1.312	1.269	1.516	1.447	29/32"	0.922	0.890	21/32"	0.670	0.640	0.240	0.180	0.188	1.097	0.025
1"	1.0000	1-1/2"	1.500	1.450	1.732	1.653	1"	1.018	0.982	23/32"	0.730	0.700	0.300	0.240	0.188	1.254	0.027
1-1/8"	1.1250	1-11/16"	1.688	1.631	1.949	1.859	1-5/32"	1.176	1.136	13/16"	0.830	0.800	0.330	0.240	0.250	1.411	0.030
1-1/4"	1.2500	1-7/8"	1.875	1.812	2.165	2.066	1-1/4"	1.272	1.228	7/8"	0.890	0.860	0.400	0.310	0.250	1.570	0.033
1-3/8"	1.3750	2-1/16"	2.062	1.994	2.382	2.273	1-3/8"	1.399	1.351	1"	1.020	0.980	0.400	0.310	0.250	1.726	0.036
1-1/2"	1.5000	2-1/4"	2.250	2.175	2.598	2.480	1-1/2"	1.526	1.474	1-1/16"	1.080	1.040	0.460	0.370	0.250	1.881	0.039

Materials Include: 18-8 ss, 316 ss, 400 series ss, Brass, Silicone Bronze, Monel, Carbon Steels, Alloy Steels, Aluminum.
Finishes Include: Zinc, Cadmium, Nickel Silver & Chrome Plating, Black Oxide, Anodize, Passivation and Heat Treating.

Castle Nuts are similar to a slotted nut with the following exception: the slots are cut into cylindrical portion that is equal in length to the slot depth and slightly smaller in diameter than the hex width. The slots are for the insertion of a cotter pin to secure the nut when used with s drilled shank fastener. The slotted and castle styles are both interchangeable with the slotted design now the preferred style. These nuts can also produced with “Left Hand” threads!

Specialized in

Round castle nuts hex slotted nut	DIN935 A2 Stainless Steel Metric Coarse Slotted and Castle Hexagon Nut
White Zinc Carbon Steel hexagonal slotted and castle nut	Stainless-Steel-A2 DIN937 Metric Coarse Thin Slotted and Castle Hexagon Nut
Class-4 DIN935 Stainless Steel Castle Nut	BS1083 BSW Whitworth Slotted Hexagon Nut Steel
904L 254SMO 1.4529 hex slot castle nut	Steel Zinc Plated DIN 937 DIN 979 Fine Pitch Thread Hex Thin Slotted And Castle Nuts
Galvanized carbon steel nuts castle metric hex slotted nut castle nut	High quality hexagon slotted nuts and castle nuts DIN935 DIN979
Class-4 DIN937 Metric Fine Thin Slotted and Castle Hexagon Nut	GOST 2528 Hex Slotted Castle Nut
ss201 304 316 stainless steel Hex slotted Castle Nut DIN635	Stainless steel hex thick slotted castle nut
BS1768 T3TH ASME B18.2.2 T10 UNF Slotted Hexagon Heavy Nut Steel	BS1768 DIN 935 Castle Nut
Brass Slotted Castle Nut	Grade 2 hex slotted nut, DIN935 Castle Nuts
Stainless steel Zinc Plated Galvanized castle nuts M5 M6

Slotted Nut Grade Markings

Understanding Slotted Nut Grade and Classification

Slotted Nut Grade Identification Marking	Slotted Nut Specification	Slotted Nut Material	Nominal Size ub Inches	Slotted Nut Proof Load Stress ksi	Hardness Rockwell
Slotted Nut Grade Identification Marking	Slotted Nut Specification	Slotted Nut Material	Nominal Size ub Inches	Slotted Nut Proof Load Stress ksi	Min	Max
No Mark	ASTM A563 - Grade 0	Carbon Steel	1/4 thru 1-1/2	69	B55	C32
	ASTM A563 - Grade A	Carbon Steel	1/4 thru 1-1/2	90	B68	C32
	ASTM A563 - Grade B Slotted Nut	Carbon Steel	1/4 thru 1	120	B69	C32
	ASTM A563 - Grade B Slotted Nut	Carbon Steel	over 1 thru 1-1/2	105	B69	C32
	ASTM A563 - Grade C	Carbon Steel May be Quenched and Tampered	1/4 thru 4	144	B78	C38
	ASTM A563 - Grade C3	Atmospheric Corrosion Resistant Steel May be Quenched and Tampered	1/4 thru 4	144	B78	C38
	ASTM A563 - Grade D	Carbon Steel May be Quenched and Tampered	1/4 thru 4	150	B84	C38
	ASTM A563 - Grade DH Slotted Nut	Carbon Steel Quenched and Tampered	1/4 thru 4	175	C24	C38
	ASTM A563 - Grade DH3	Atmospheric Corrosion Resistant Steel,Quenched and Tampered	1/4 thru 4	175	C24	C38
	ASTM A194 - Grade 1	Carbon Steel	1/4 thru 4	130	B70	-
	ASTM A194 - Grade 2	Medium Carbon Steel	1/4 thru 4	150	159	352
	ASTM A194 - Grade 2H Slotted Nut	Medium Carbon Steel, Quenched and Tempered	1/4 thru 4	175	C24	C38
	ASTM A194 - Grade 2HM	Medium Carbon Steel, Quenched and Tempered	1/4 thru 4	150	159	237
	ASTM A194 - Grade 4	Medium Carbon Alloy Steel, Quenched and Tempered	1/4 thru 4	175	C24	C38
	ASTM A194 - Grade 7 Slotted Nut	Medium Carbon Alloy Steel,Quenched and Tempered	1/4 thru 4	175	C24	C38
	ASTM A194 - Grade 7M	Medium Carbon Alloy Steel, Quenched and Tempered	1/4 thru 4	150	159	237
