Buy directly from Stainless Steel Captive Nut manufacturers in India

Different types of stainless steel cage nuts

The nut comes in a casing that has two wings that could be compressed to get inserted into the application surface. The automotive cage nuts are used in the vehicles and these are sometimes called as the captive nuts, or clip nuts. The usual shape of the cage is square. There are different material types used to produce the cage nuts. The most commonly used are the 304 and 316 grades of austenitic stainless steel but other grades are also available. The nuts can be 317L, 317, 310, 309, 304L, 304, 316L or 316 stainless steel cage nuts. Depending on the need of the application, the material type differs. The different materials allow for the nuts to have different mechanical properties, different levels of corrosion resistance and ductility. The advantage of cage nuts is that they do not expose the stripped threads outside the cage. This is good when the stainless steel 304 cage nuts are installed in an environment with sensitive accessories like wires, tubes and electronic components. The server rooms and racks use the cage nuts for maximum effectiveness and safety of the fasteners. As a leading supplier we produce the 18/8 Stainless Steel Cage Nuts and others in different quantities. Please feel free to contact us for more information.

Main types

Cage Nuts
Automotive Cage Nuts
Captive Nut
Cage Nuts and Screws
Rack Cage Nuts
Captured Nuts
Server Rack Cage Nuts
Server Cage Nuts
Rack Mount Nuts
Square Rack Nuts
Round Cage Nuts

Difference between m5 and m6 cage nuts

The m6 stainless steel cage nuts and the M5 cage nuts are mostly used in the IT industrial applications in tools and components. The M6 nuts are heavier than the M5 nuts and they can hold more load than the M5 ones. The m6 cage nuts can also be found in other applications such as the automotive, engineering, electronic and other application types.

Cage nuts application and uses

Stainless steel cage nuts are used in applications where the safety of the equipment is important and the possibility of exposed threads is found. Rolex Metal Distributors is a leading manufacturer and supplier of the different types of cage nuts for various application types.

Manufacturer & exporter of Stainless Steel A2-70 G304 Automotive Cage Nuts, SS 316 Server Cage Nuts and 18/8 Stainless Steel Square Rack Nuts

Stainless Steel Cage Nut Price List India
Stainless Steel 304 Cage Nut Specifications
Types of Cage Nut
Cage Nut Material and Grades
AISI 410 Stainless Steel Cage Nut Coating and Surface Treatment
12.9 Grade Cage Nut Dimensions
ASTM A194 Grade 2H Cage Nut Sizes
Uses and application of ASTM A320 L7 Cage Nut
A193 Grade B8 Class 2 Cage Nut Testing Equipment

Stainless Steel Cage Nut Price List India

Online inventory of SS 316 A4-80 Cage Nuts and Screws, Stainless Steel 304 Rack Screws and Cage Nuts in India

M8 1.8-3.3 HOLE 12.3 X 12.3 Cage Nut	INR 2/ Pcs
Square Cage Nut	INR 445/ Kg

Call us or send us an email to marketing@rolexmetals.com for more details.

Stainless Steel 304 Cage Nut Specifications

View latest price list & dimensions of Stainless Steel 316 Server Rack Cage Nuts, A2-80 Stainless Steel Captured Nuts, SS 304 M6 Cage Nuts and Bolts ex Mumbai

ANSI - Stainless Steel Cage Nut American Standard	ANSI B 18.2.2
DIN - Stainless Steel Cage Nut German Standard	DIN 935
ISO Standard 316 Stainless Steel Cage Nut	ISO
SAE Specification	Cage Nut : SAE J995
AISI 410 Stainless Steel Cage Nut Size Metric	Dia: M10 - M110 Length: 12 - 1200MM
12.9 Grade Cage Nut Size Inch	Dia: 1/2" - 4.0" Length: 1/2" - 52"
Stainless Steel Cage Nut International Specification	IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN,
Cage Nut Standard	American ASME Indian IS International ISO American SAE German DIN Spanish CSN British BS Italian UNI Polish PN European EU
316 Stainless Steel Cage Nut Standard Sizes	M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160
8.8 Grade Cage Nut Threads	Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
8.8 Grade Cage Nut Head Drive	Phillips, Slotted, Phillips/Slot, Six-Lobe
MTC (Manufacturer Test Certificate)	EN 10204 / 3.1
8.8 Grade Cage Nut Production Process	M2-M24: Cold Forging, Hot forging M24-M100, machining and CNC for Customized connecting element
ASTM A193 Grade B7m Cage Nut Packing	Wooden Pallet, Canton, Carton / Small Box or as required Carton size : 36* 24 16 CM & 36 24 12 CM or as required Pallet size: Standard Euro Pallet 110 80 *90 CM
Free Sample	Yes if we have in stock
Payment Terms	Paypal, Western Union, T/T (Telegraphic Transfer or Wire Transfer), L/C or Trade Assurance 30% deposit & balance before shipping
Preferred Cage Nut Drawing Formats	JPEG, PDF, CAD, STP, IGS
Manufacturing Process	Heading Machining Threading Heat treatment Plating Baking QA Package Shipping
Delivery Time	7-15 working days as usual, It will based on the detailed order quantity.
Port of Dispatch	Mumbai or Kalamboli ports in Maharashtra state of India
Cage Nut Plating Specifications	ASTM A153 Zinc coating (hot dip) ASTM B695 zinc coating ASTM F1941 Electrodeposited coatings (Zinc plating). ASTM F2329 Zinc coating, hot dip

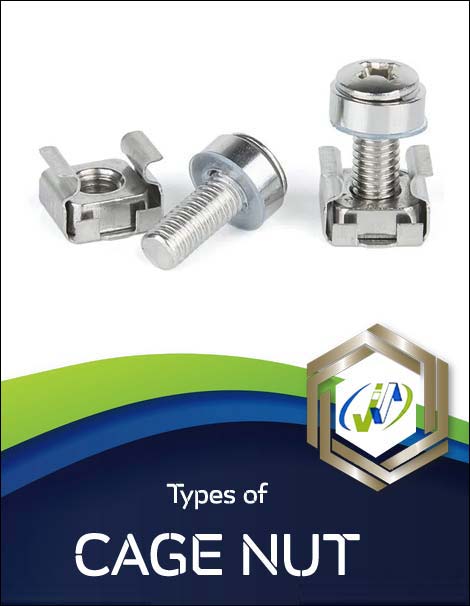

Types of Cage Nut

AISI 316 A4-80 Rack Cage Nuts, 304 Stainless Steel M5 Cage Nuts, Stainless Steel Rack Mount Nuts, Grade 316 A4-70 Rack Nuts and SS Captive Nut M6 at factory price

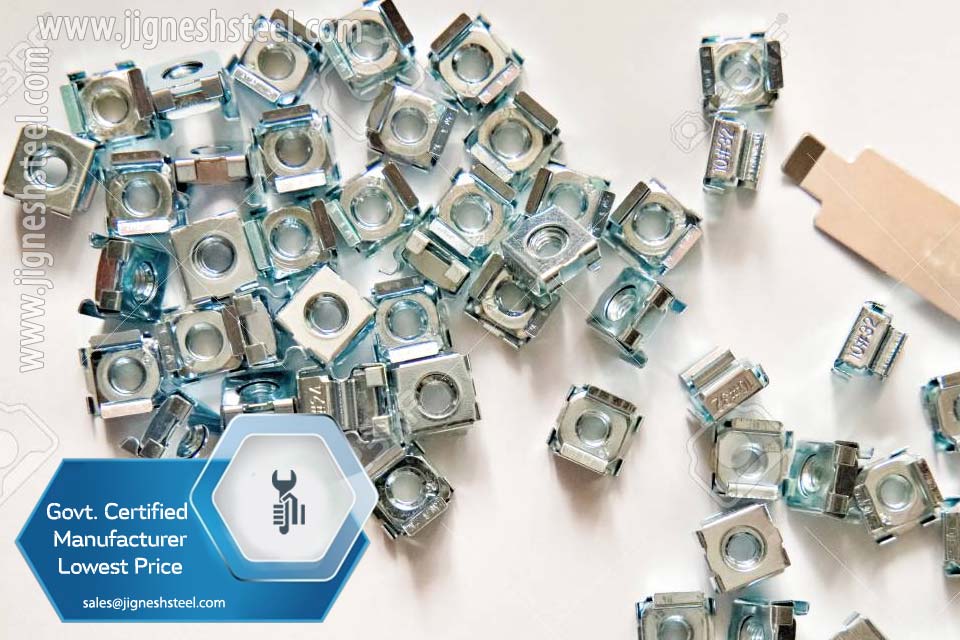

Stainless Steel Cage Nut

AISI 410 Stainless Steel Captive Nuts

12.9 Grade Rack Nuts

ASTM A194 Grade 2H Captured Nuts

ASTM A320 L7 Server Cage Nuts

Stainless Steel A2-70 Rack Mount Nuts

Cage Nut Material and Grades

Stainless Steel Cage Nut	SS 201, SS 303, SS 304, SS 304L, SS 316, SS 316L, 316H, SS 317L, SS 321, SS 304H, SS 310, SS 410, 347, SS 420 Cage Nut, 904L, 18-8 Stainless Steel, Black Stainless Steel, A2 -70, A2 -80, A4 -70, A4 -80 Cage Nut, A193 B8C (347), A193 B8T (321), A193 B6 (410)
Martensitic Stainless Steel Cage Nut	15-5 PH (UNS S15500), 17-4 PH (UNS S17400), 17-7 PH (UNS S17700)
ASTM A193 Cage Nut	ASTM A193 B6, B7, B7m, B8T, SA 193 B8, B8 Class 1/ Class 2, B8M Class 2, A193 B16, SA 193 Grade B6X Cage Nut
Carbon Steel Cage Nut	AISI 1018, AISI 1045, AISI 1117, AISI 12L14, AISI 1215, ASTM A36 Cage Nut, ASTM A29, A108, A549, SAE J429, ASTM A307 Grade A/ B/ C
All ASTM Standard of Cage Nut	ASTM A320, A325, A36, A320 L7 Cage Nut, L7m, A320 Grade B8, A320 B8m, A307, A540, A563, A354, A490, A593, F593C, F593D, F593G Cage Nut
ASTM F3125 Heavy hex structural bolts	This includes A325, A325M, A490, A490M, F1852, and F2280 heavy hex structural bolts, A325 Type 1, Type 2, Type 3
Alloy Steel Cage Nut	AISI 4140, AISI 4130, ASTM A193 B7/ B8 / B8M/ B8 Class 2/ B8M Class 2, ASTM A320 L7/ L43
Spring Steel Cage Nut	C55S, C60S, C67S, C75S, C100S, 51CrV4, 80CrV2 Cage Nut
High Tensile Cage Nut	Grade 4.8, grade 8.8, grade 10.9, grade 12.9, grade 4.6, Grade 5.8, Grade 9.8 Cage Nut
ASTM A449 Cage Nut	ASTM A449 Type 1 (Plain carbon steel, alloy steel, carbon boron steel, alloy boron steel)
ASTM A194 Cage Nut	ASTM A194 Grade 2H , 2HM, SA 194 Grade 3/ 4 / 6 / 7 / 7m/ 8/ 8m
ASTM F593 Cage Nut	303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se, 316, 316L, 321, 347, 430, 430F, 410, 416, 416Se, 431, 630 (17-4) (Austenitic, Ferritic, Martensitic & Precipitation Hardening)
Brass Cage Nut	3602 / 2604 / H59 / H62, C36000 , C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000 (CuZn40), Copper (99% Cu)
Free Cutting Steel Cage Nut	1213, 12L14,1215
Aluminum Cage Nut	Al6061, Al6063, 5052 /6061/ 6063 / 2017 / 7075
Titanium Cage Nut	ASTM B348 / ASME SB348, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 Cage Nut UNS R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5
Hastelloy Cage Nut	ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Cage Nut
Duplex Steel Cage Nut	Duplex 2205, UNS S31803 / S32205 A479 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 Cage Nut
Super Duplex Cage Nut	Super Duplex 2507, UNS S32750 / S32760 A479 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 Cage Nut
Incoloy Cage Nut	ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Cage Nut, ASTM A453 Grade 660, ASTM A638 grade 660 Type 1, ASTM A286 Grade 660
Monel Cage Nut	ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Nickel Cage Nut	ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Alloy 20 Cage Nut	ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Copper Cage Nut	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Cage Nut	ASTM / ASME SB 151, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel Cage Nut	ASTM B166 / ASME SB 166, Inconel Alloy 600 (UNS No. N06600), 601, 625 (UNS No. N06625), 718, 783, 690, x750 Cage Nut
254 Smo Cage Nut	ASTM A479 / ASME SA479, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic Cage Nut	Nimonic 75, Nimonic 80A, Nimonic 90
Phosphor bronze Cage Nut	PB102 (CW451K / C51000), PB104 (CW453K / C52400), PB1 (CC481K / C91700), LG1 (CC490K / C84400), LG2 (CC491K / C83600), LB4 (CC494K / C93500), SAE 660 (CC497K / C93200)
Alumunum bronze Cage Nut	CA104 (CW307G / BSB23 / DTD197A), DEF STAN 02-833 (NES 833 / DGS 1043), DEF STAN 02-834 (NES 834 / DGS 1044/ CW301G), C63000 (AMS4640 / CW307G), C63200 (ASTM B150), AB2 (CC333G)
Other Cage Nut material	Tin bronze, Lead bronze, Stellite, Molybdenum, Tantalum, Zirconium, Austenitic Steel, Chromium Vanadium Steel, Super Austenitic Steel, Weathering Steel Cage Nut

AISI 410 Stainless Steel Cage Nut Coating and Surface Treatment

Xylon Coated
Phosphate Coated
Hot-dip galvanizing
Cadmium Coated
Rust preventive oil
Polish
Anodizing
Passivation
Ptfe Coated (Teflon)
Hot Dipped Galvanized
Teflon Coated
Zinc Coated
Black Oxide
Sand blasting

Black oxide coating
Heat-disposing
Zinc white, (yellow, black, blue), black oxide
Dacroment, Geometry, plated zinc-nickel, anodizing, nickel plated
Hot Dip Galvanised (HDG), Sherardized, DACROMET and Mechanically Applied coating
Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Stainless steel Cage Nut: Passivated Self-Colour, Bright Zinc Plated (BZP)

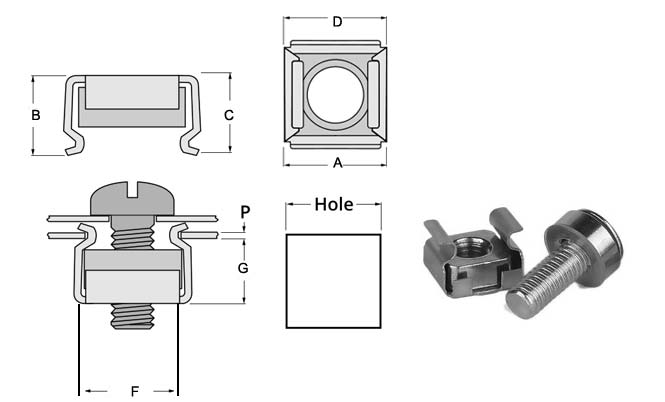

12.9 Grade Cage Nut Dimensions

D	P	A	F	G	SQ HOLE	HOLE R
M4	0.7/1.6	10.0000	10.0000	4.8000	6.8000	0.5000
M4	0.7/1.6	13.5000	13.5000	5.8000	9.5000	0.8000
M4	0.7/2.1	13.5000	13.5000	6.5000	9.5000	0.8000
M4	1.8/2.6	13.5000	13.5000	5.8000	9.5000	0.8000
M4	2.2/3.1	13.5000	13.5000	6.5000	9.5000	0.8000
M5	0.7/1.6	13.5000	13.5000	5.8000	9.5000	0.8000
M5	0.7/2.0	13.5000	13.5000	6.0000	9.5000	0.8000
M5	0.7/2.1	13.5000	13.5000	6.5000	9.5000	0.8000
M5	1.8/2.6	13.5000	13.5000	5.8000	9.5000	0.8000
M5	2.1/3.0	13.5000	13.5000	6.0000	9.5000	0.8000
M5	2.2/3.1	13.5000	13.5000	6.5000	9.5000	0.8000
M6	0.7/1.6	13.5000	13.5000	5.8000	9.5000	0.8000
M6	0.7/2.0	13.5000	13.5000	6.0000	9.5000	0.8000
M6	0.7/2.1	13.5000	13.5000	6.5000	9.5000	0.8000
M6	1.8/2.6	13.5000	13.5000	5.8000	9.5000	0.8000
M6	2.1/3.0	13.5000	13.5000	6.0000	9.5000	0.8000
M6	2.2/3.1	13.5000	13.5000	6.5000	9.5000	0.8000
M8	0.7/1.6	17.8000	18.0000	7.2000	12.8000	3.2000
M8	1.8/2.6	17.8000	18.0000	7.2000	12.8000	3.2000
M10	0.7/1.6	17.8000	18.0000	7.2000	12.8000	3.2000
M10	1.8/2.6	17.8000	18.0000	7.2000	12.8000	3.2000

ASTM A194 Grade 2H Cage Nut Sizes

INTERNAL THREAD	FOR MATERIAL THICKNESS	HOLE SIZE
M4	0.7 TO 1.6	8.3
M4	1.7 TO 2.5	8.3
M4	2.6 TO 3.5	8.3
M4	3.6 TO 4.5	8.3
M5	0.7 TO 1.6	9.5
M5	1.7 TO 2.5	9.5
M5	2.6 TO 3.5	9.5
M5	3.6 TO 4.5	9.5
M6	0.7 TO 1.6	9.6
M6	1.7 TO 2.5	9.5
M6	2.6 TO 3.5	9.5
M6	3.6 TO 4.5	9.5
M8	0.7 TO 1.6	12.5
M8	1.7 TO 3.0	12.5
M8	3.1 TO 4.0	12.5
M10	0.7 TO 1.6	12.5
M10	1.7 TO 3.0	12.5
M10	3.1 TO 4.0	12.5
