M6 M10 Metric Stainless Steel Hanger Bolts manufacturer in India
Rolex Metal Distributors is the suppliers of Hanger Bolts For Wood in Mumbai, India. It is been manufactured by using high quality raw material by the support of our qualified technical team. We check all the parameter of the quality according to international standard. It is available in various sizes and dimensions according to the needs and requirement of the customers. Hanger Bolt is a stud which is used to suspend things from or joints items to wood. It is headless, double-ended bolts that have threads at each end, lag threads to screw into wood but, at the other end, machine screw threads to receive a nut or thread into inside threaded hole.
Long Hanger Bolts have a wood screw on one end and a machine screw or bolt on the other. Hanger bolts may also be called coach screw rods. Stainless Steel Hanger Bolts is a good choice for automotive exhausts due to its combination of low price, corrosion resistance and excellent formability. Metric Hanger Bolts are manufacture for insertion into a pre-drilled hole and are ideal for overhead applications, such as sheet metal from wooden structures and for suspending electrical wiring. Furniture Hanger Bolts are used by the furniture industry it is used for clinch nut plates, corner brackets, tee nuts and whenever wood and machine screw threads are needed in one fastener. Lag Hanger Bolt is some of the toughest fasteners. It is extremely sturdy fasteners and commonly used to connect a heavy lumber or other heavy material that bears a great load.
Hanger Bolt
Stainless Steel Hanger Bolts
Long Hanger Bolts
DIN /ISO & Imperial standard 6- 8 Inch Long Hanger Bolts manufacturer in India, view sizes, dimensions and price list ex Mumbai
Stainless Steel Hanger Bolt Specifications
| DIN Standard | DIN 88149 |
| Hanger Bolt Size Metric |
|
| Hanger Bolt Size Inch |
|
| Standard | Manufacturer of Hanger Bolt as per IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN, and all International Standards
|
| Length | 3 mm to 200 mm |
| UTS - Unified Thread Standard | UNC, UNF, UNEF, NPT, UNS, NPTF |
| Dimensions | ASME B18.6.3 **Exception: Hanger Bolt 6 inches and shorter are fully threaded. |
| Material Origin | Stainless Steel Hanger Bolt are Western European. Eastern origin possible on request. |
| Metric Hanger Bolt Tolerances | +/-0.01mm to +/-0.05mm |
| Stainless Steel Hanger Bolt Surface Coating |
All Hanger Bolt surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE. |
| Hanger Bolt Surface treatment |
|
| Top Manufacturers | Omni, APL, Unbrako, Kundan, Deepak Fasteners, Sundaram Precision, Infasco, Caparo, EBY Fastener, SPAX® Screws, GKW Etc. |
| Stainless Steel Hanger Bolt marking and Packing |
|
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Why Rolex Metal Distributors? |
|
| MOQ | 5 pieces |
| Ask for Test Certificates from Hanger Bolt manufacturers |
|
| Free Samples | Yes |
| Payment Terms | T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping |
| Preferred Hanger Bolt Drawing Formats | JPEG, PDF, CAD, STP, IGS |
| Common Hanger Bolt material grades |
|
| Port of Dispatch | Mumbai or Kalamboli ports in Maharashtra state of India |
| ISO - International Organization for Standardization | |
| Other Fasteners |
Stainless Steel Hanger Bolt Price List
DIN 88149 Hanger Screws and Bolts manufacturer for wood Furniture
| Products | FOB Price US $ |
|---|---|
| Double Thread Hanger Screw/ Bolt | US $0.04-$0.06/ Piece |
| M4 M6 Thread Hanger Bolt Double Headed Self-Tapping Screw | US $0.01-$0.50/ Piece |
| Double Head Threaded Hanger Bolts/ Dowel Hanger Screw | US $0.02-$0.03/ Piece |
| Customized Stainless Steel Hanger Bolts For Solar Mounting | US $0.50-$2.00/ Piece |
| Hanger Bolt Hook for Tin Roof Solar pv Mount Structure | US $0.90-$0.97/ Piece |
| Plain Double Head carbon steel Machine and Wood Thread screw/ Coarse Thread Hanger Bolt | US $0.05-$0.08/ Piece |
| Stainless Steel Wooden Hanger Bolt M6 For Solar PV Panel Mounting | US $0.10-$0.20/ Piece |
| Stainless Steel Double Head Thread Tin Roof M10 Hanger Bolt | US $0.50/ Piece |
| Stainless Steel Solar Panel Mounting Double Threaded Hanger Bolt | US $0.56-$1.52/ Piece |
| SS Double Head Hanger Bolts | US $0.12/ Piece |
| Stainless steel wooded thread hanger bolt manufacturer | US $0.01-$0.50/ Piece |
| Hanger Bolt M6 Dowel Screw Wood/ Furniture Connector Double Ended Screw Hanger Bolt | US $0.01-$1.00/ Piece |
Call us or send us an email to marketing@rolexmetals.com for more details. Always compare our price with other Hanger Bolt manufacturers in India or China
Types of Hanger Bolt
Check DIN 88149 Hanger Bolt Dimensions and sizes, best price of 304/ 316 Stainless Steel Hanger Bolts in Mumbai
M10 M8 M6 Hanger Bolt
Metric Hanger Bolts
6 Inch Hanger Bolt
Furniture Hanger Bolts
Lag Hanger Bolt
DIN 88149 Hanger Screws

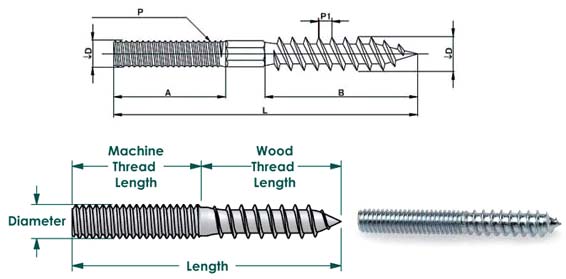

Hanger Bolts Dimension
| Size | D | L | P | P1 | D1 | A | B | S |
| M8×80 | M8 | 80 | 1.25 | 3.0-3.2 | 6.85-7.0 | 20.00 | 30.00 | 5.75-6.00 |
| M8×90 | M8 | 90 | 1.25 | 3.0-3.2 | 6.85-7.0 | 20.00 | 40.00 | 5.75-6.00 |
| M8×100 | M8 | 100 | 1.25 | 3.0-3.2 | 6.85-7.0 | 20.00 | 45.00 | 5.75-6.00 |
| M8×120 | M8 | 120 | 1.25 | 3.0-3.2 | 6.85-7.0 | 20.00 | 45.00 | 5.75-6.00 |
| M10×100 | M10 | 100 | 1.50 | 3.0-3.2 | 8.85-9.00 | 40.00 | 45.00 | 7.75-8.00 |
| M10×120 | M10 | 120 | 1.50 | 3.0-3.2 | 8.85-9.00 | 40.00 | 60.00 | 7.75-8.00 |
| M10×140 | M10 | 140 | 1.50 | 3.0-3.2 | 8.85-9.00 | 40.00 | 60.00 | 7.75-8.00 |
* All size in mm;
| Category: | Hanger bolts & Dowel screws |
|---|---|
| Wood thread length: | 3-1/2" |
| Machine thread length: | 2-1/2" |
| Subcategory: | Hanger bolts |
| Material: | Stainless steel |
| Grade: | 18-8 |
| Thread direction: | Right hand |
| Thread density: | Coarse |
| Diameter: | 3/8" |
| Thread count: | 16 |
| Length: | 6" |
Stainless Steel Hanger Bolt Material and Grades
|
|
Hanger Bolt Application
- Nuclear Energy Sector
- Oil & Gas Industries
- Petroleum Industries
- Defence Industry
- Chemical Industry
- Aerospace Industry
Stainless Steel Hanger Bolt Testing Tool & Equipment
- Micrometer
- Smooth plug gauge
- Thread gauge
- Coordinate Measuring Machine
- Roughness tester
- Image measuring instrument
- Routine inspection of calipers
