Class 8.8 Wedge Anchors and 8.8 Grade Foundation Bolt manufacturer in India
Anchor bolts are a kind of fasteners that can be used to connect structural as well as non-structural elements to concrete. Grade 8.8 Anchor Bolts are connected by assembling different components. These components consist of the following -
- Anchor bolts also known as fasteners
- Steel plates
- Stiffeners
A Class 8.8 Wedge Anchors can transfer two different types of load, one is the tension force and the other is shear force. 8.8 Grade Foundation Bolt can be used in a various applications including light poles, heavy equipment , sign structures and tooling. 8.8 Grade L Shaped Anchor Bolts is most common carbon steel material for L Anchor bolts, that has been used by Anchor bolt manufacturers
While using 8.8 High Tensile Toggle Wings, a resin is injected into the hole before inserting of the stud. The added resin naturally fills in all irregularities or gaps that could be present by making the hole airtight, with 100% adhesion. Chemical anchor bolts offer an advantage as compared to Grade 8.8 Steel Toggle Bolts, because it ensures sealing of the stud with the resin. Thus the resin added acts as an extra adhesion which in turn creates extra strength. Scroll down to read more about Grade 8.8 Anchor Bolt Properties, Specifications, Price List, Yield Strength and Weight Chart.

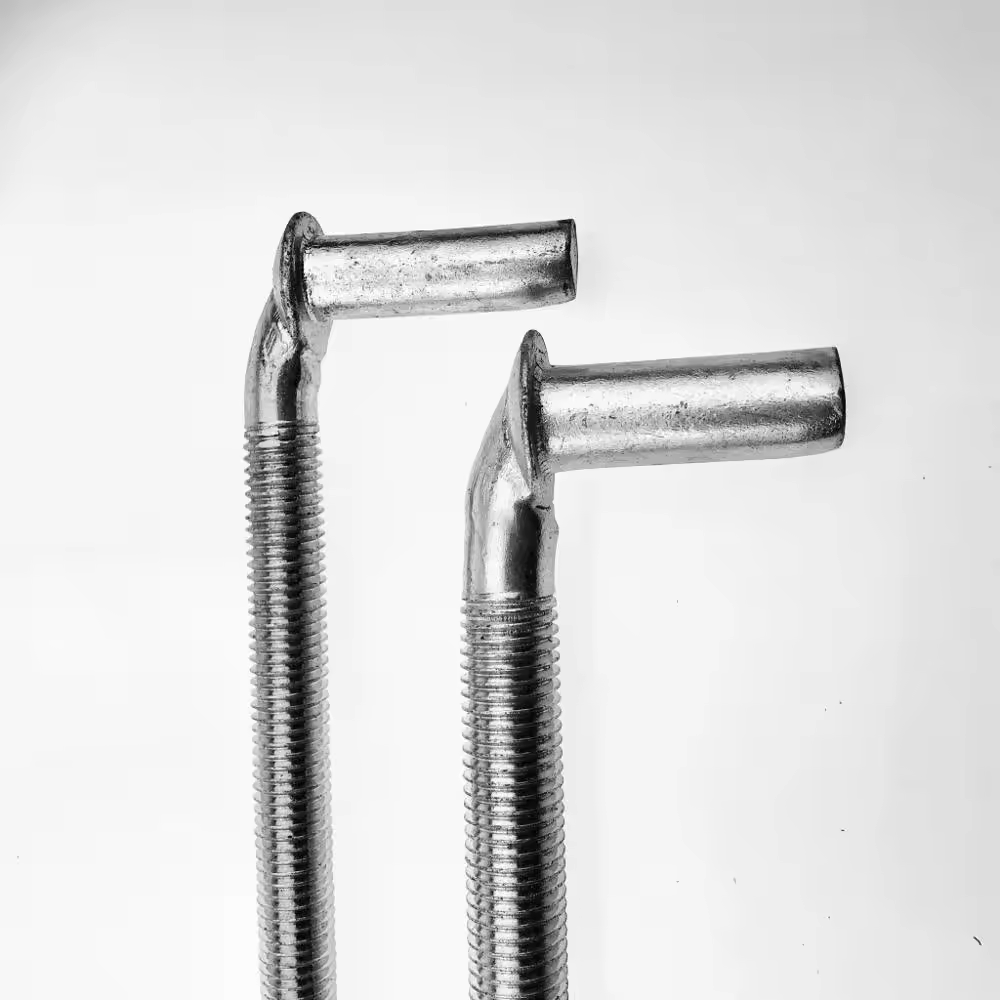

Grade 8.8 Anchor Bolts
Class 8.8 Wedge Anchors
8.8 Grade Foundation Bolt
Manufacturer and supplier of 8.8 Grade L Shaped Anchor Bolts and 8.8 High Tensile Toggle Wings in large range of sizes and considerable torque
Table of contents
Grade 8.8 Anchor Bolts Specifications
Manufacturing Fully heat-treated Grade 8.8 Steel Toggle Bolts and Galvanised Anchor Bolt M24 Grade 8.8 for heavy duty, check Specifications, Properties, Yield Strength and Weight Chart
| 8.8 grade anchor bolt size | m10-m30 |
| Standard | Manufacturer of Grade 8.8 Anchor Bolts as per IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN, and all International Standards
|
| Material Origin | Grade 8.8 Anchor Bolts are Western European. Eastern origin possible on request. |
| Surface Finish & Coating of Grade 8.8 Expansion Anchor Bolts |
All Grade 8.8 Steel anchor bolt surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE. |
| Why Rolex Metal Distributors? |
|
| MOQ | 5 pieces |
| Ask for Test Certificates from Grade 8.8 Anchor Bolts manufacturers |
|
| Free Samples | Yes |
| Delivery time | Regular product is about 7-15 days |
| Payment Terms | T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping |
| Port of Dispatch | Mumbai or Kalamboli ports in Maharashtra state of India |
| Hsfg Grade 8.8 Anchor Bolt Application and Uses | Industrial, Wind tower, Railway, Nuclear power, Construction, Electronic, and Automotive industry |
| ISO - International Organization for Standardization |
Grade 8.8 Steel Anchor Bolt Length Chart
Looking for Metric M16 M20 BS 3692 Grade 8.8 Wedge Anchors manufacturers in India? Exporter and supplier of Toggle Wing Bolts and High Tensile 8.8 Grade Flat Head Sleeve Anchors in Mumbai, check Anchor Bolt Grade 8.8 Equivalent and Price list
| Size | Length | Hook | Thread Length |
| 3/8 | 6 | 1 | 1/2 |
| 3/8 | 8 | 1 | 1/2 |
| 3/8 | 10 | 1 | 1/2 |
| 3/8 | 12 | 1 | 1/2 |
| 1/2 | 6 | 1 | 2 |
| 1/2 | 8 | 1 | 2 |
| 1/2 | 10 | 1 | 2 |
| 1/2 | 12 | 1 | 2 |
| 1/2 | 14 | 1 | 2 |
| 1/2 | 16 | 1 | 2 |
| 1/2 | 18 | 1 | 2 |
| 1/2 | 20 | 1 | 2 |
| 1/2 | 24 | 1 | 2 |
| 5/8 | 6 | 2 | 4 |
| 5/8 | 8 | 2 | 4 |
| 5/8 | 10 | 2 | 4 |
| 5/8 | 12 | 2 | 4 |
| 5/8 | 14 | 2 | 4 |
| 5/8 | 18 | 2 | 4 |
| 5/8 | 20 | 2 | 4 |
| 5/8 | 24 | 2 | 4 |
| 3/4 | 6 | 3 | 4 |
| 3/4 | 10 | 3 | 4 |
| 3/4 | 12 | 3 | 4 |
| 3/4 | 14 | 3 | 4 |
| 3/4 | 16 | 3 | 4 |
| 3/4 | 18 | 3 | 4 |
| 3/4 | 24 | 3 | 4 |
| 3/4 | 30 | 3 | 4 |
| 3/4 | 36 | 3 | 4 |
| 7/8 | 12 | 3 | 5 |
| 7/8 | 14 | 3 | 5 |
| 7/8 | 18 | 3 | 5 |
| 7/8 | 24 | 3 | 5 |
| 1 | 14 | 3 | 6 |
| 1 | 15 | 3 | 6 |
| 1 | 16 | 3 | 6 |
| 1 | 18 | 3 | 6 |
| 1 | 20 | 3 | 6 |
| 1 | 24 | 3 | 6 |
| 1 | 30 | 3 | 6 |
| 1 | 36 | 3 | 6 |
| 1 | 36 | 4 | 6 |
| 1 1/4 | 18 | 3 | 6 |
| 1 1/4 | 24 | 3 | 6 |

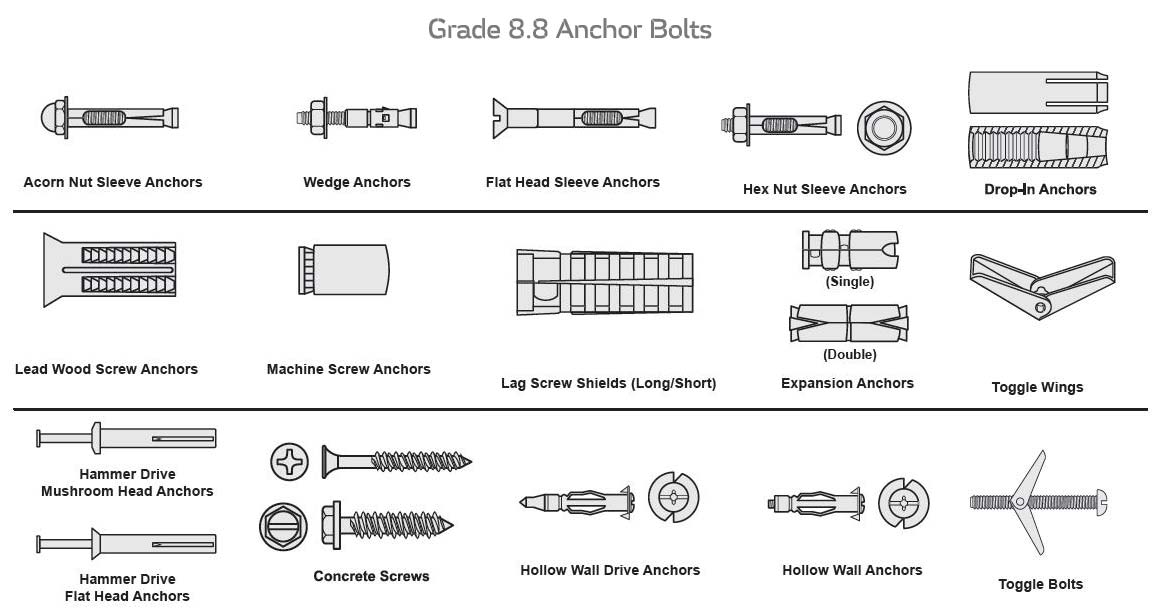

Types of Grade 8.8 Steel anchor bolt
Manufacturer of Hsfg Grade 8.8 Resin Anchor Bolts, Hex Nut Sleeve Anchors, Hammer Drive Flat Head Anchors and Grade 8.8 Galvanised Sleeve Anchor Bolt in M1.4 to M30 Metric Size, Call for Free sample
Grade 8.8 Toggle Bolts
BS 3692 grade 8.8 Drywall Anchors
Grade 8.8 Steel Cut Anchor
8.8 Grade L Type Anchor Bolt
Class 8.8 J Type Anchor Bolt
BS 4190 grade 8.8 Hit Anchor with Flange Nut
8.8 Grade Sleeve Type Expansion Anchor
Hsfg Grade 8.8 Nail-in Drywall Anchors
Grade 8.8 Expansion Wedge Anchor
Grade 8.8 Anchor Fixture Bolt size
| Anchor Dia. | Fixture Hole Dia. |
| 1/4" | 5/16" |
| 5/16" | 3/8" |
| 3/8" | 7/16" |
| 1/2" | 9/16" |
| 5/8" | 11/16" |
| 3/4" | 7/8" |
| 7/8" | 1" |
| 1" | 1-1/8" |
| 1-1/4" | 1-3/8" |
High Tensile 8.8 Grade Wedge Anchors Sizes
| Size | Thread Length | Hole Size | Min. Imbed. | Ship Wgt /100 | ||||||||||
|
3/4 1 1 |
1/4 1/4 1/4 |
1-1/8 1-1/8 1-1/8 |
3.000 3.620 5.020 |
||||||||||
|
1-1/8 1-1/8 1-1/8 1-1/4 1-1/4 |
3/8 3/8 3/8 3/8 3/8 |
1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 |
8.080 9.980 11.00 12.76 16.24 |
||||||||||
|
1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 |
1/2 1/2 1/2 1/2 1/2 |
2-1/4 2-1/4 2-1/4 2-1/4 2-1/4 |
18.82 23.58 26.86 33.63 43.33 |
||||||||||
|
1-5/8 1-9/16 1-9/16 1-9/16 |
5/8 5/8 5/8 5/8 |
2-3/4 2-3/4 2-3/4 2-3/4 |
41.00 44.00 52.00 59.95 |
||||||||||
|
2-3/16 2-3/16 2-3/16 |
3/4 3/4 3/4 |
3-1/4 3-1/4 3-1/4 |
63.35 68.80 76.70 |
Chemical Composition of 8.8 Grade Anchor Bolt
| Class | Material and heat treatment | Chemical composition (analysis on the product) % | Minimum hardening temperature °C | ||||
|---|---|---|---|---|---|---|---|
| C | P | S | B | ||||
| minimum | max | max | max | max | |||
| Grade 8.8 Anchor Bolt | Alloy/ Carbon steel (B, Mn, Cr), quenched and tempered | 0,15(3) | 0,40 | 0,025 | 0,025 | 0,003 | 425 |
| Carbon steel Anchor Bolt Quenched and tempered | 0,25 | 0,55 | 0,025 | 0,025 | |||
| Alloy steel Anchor Bolt Quenched and tempered | 0,20 | 0,55 | 0,025 | 0,025 | |||
Mechanical Properties of Grade 8.8 Steel Anchor Bolt
| Characteristics | Strength class 8.8 Anchor Bolt | |||
|---|---|---|---|---|
| 8.8 d≤16mm |
8.8 d>16mm |
|||
| Anchor Bolt Tensile strength Rm (MPa) |
nom | 800 | 800 | |
| minimum | 800 | 830 | ||
| Anchor Bolt Yield strength Rm (MPa) ReL up to 6.8 - Rp0,2 from 8.8 |
nom | 640 | 640 | |
| minimum | 640 | 660 | ||
| Elongation after fracture, a% | minimum | 12 | 12 | |
| Necking Z% | 52 | 52 | ||
| Vickers hardness (HV) F ≥ 98 N |
minimum | 250 | 255 | |
| max | 320 | 335 | ||
| Brinell hardness (HB) F = 30D2 |
minimum | 238 | 242 | |
| max | 304 | 318 | ||
| Rockwell hardness HRB up to 6.8 - HRC from 8.8 |
minimum | 22 | 23 | |
| max | 32 | 34 | ||
| Resilience KV (J) – 20°C(1) | minimum | 27 | 27 | |
Grade 8.8 Anchor Bolts Price List
| Products | FOB Price US $ |
|---|---|
| OEM sleeve Grade 8.8 anchor bolt | US $0.50/ Piece |
| M25 m36 8.8 galvanized anchor bolt | US $0.036/ Piece |
| Grade 8.8 bolt anchor wedge galvanized | US $0.036/ Piece |
| 4.8 5.8 6.8 8.8 Wedge Anchor/ through Bolt DIN ANSI Fastener | US $0.015-$1.39/ Piece |
Call us or send us an email to marketing@rolexmetals.com for more details. Always compare our price with other Grade 8.8 Anchor Bolts manufacturers in India or China
